Satco NUVO 65-531 Installation And Safety Instructions

LED SMALL, MEDIUM AND
LARGE FLOOD LIGHTS
Models: 65-531, 65-532, 65-533, 65-534, 65-535,
65-536, 65-537, 65-538, 65-539
INSTALLATION AND SAFETY INSTRUCTIONS
IMPORTANT: Read before installing fixture. Retain for future reference.
WARNING:
• To reduce the risk of personal injury or property damage
from fire, electric shock, falling parts, cuts/abrasions, and
other hazards read all warnings and instructions included
with and on the fixture and all fixture labels.
• Commercial installation, service and maintenance of
luminaries should be performed by a qualified licensed
electrician. For the installation: If you are unsure about
the installation or maintenance of the luminaries, consult
a qualified licensed electrician and check your local
electrical code.
• Turn off electrical power at fuse or circuit breaker before
wiring fixture to the power supply.
• Turn off the power when you perform any maintenance.
• All connections should be capped with UL approved wire
connectors.
• Minimum size 18 AWG or 14 AWG for continuous runs.
• Risk of Burn. Disconnect power and allow fixture to cool
before handling.
• Verify that supply voltage is correct by comparing it with the
luminaire label information.
• Do not install in a hazardous atmosphere, except where the
ambient temperature does not exceed the rated operating
temperature of the fixture.
• Keep tightly closed when in operation.
INSTALLATION:
1. Before starting ensure that the power is disconnected.
2. Unpack fixture and ensure that there are no damaged
parts.
3. Attach fixture to outdoor box cover, routing the fixture
wires into the junction box. Connect fixture cables as
seen in wiring diagram. Black to Black, White to White,
and Green to Green.
Aim fixture by loosening bolt on the arm, and repositioning
to the desired angle. Tighten the bolt.
4. Wire end of cord to power supply as seen in wiring
diagram.
© Copyright 2019 Satco Products, Inc. 1/19
ELECTRICAL REQUIREMENTS
• The LED driver must be suplied with 120 or 277V,
50/60 Hz and connected to an individual, properly
grounded branch circuit protected by a 20 ampere
circuit breaker. Use min. 75°C supply.
GROUNDING INSTRUCTIONS:
• The grounding and bonding of the overall system
shall be done in accordance with NEC Article 600
and local codes.
TOOLS REQUIRED:
• Crescent Wrench, Wire Strippers and Wire Cutters

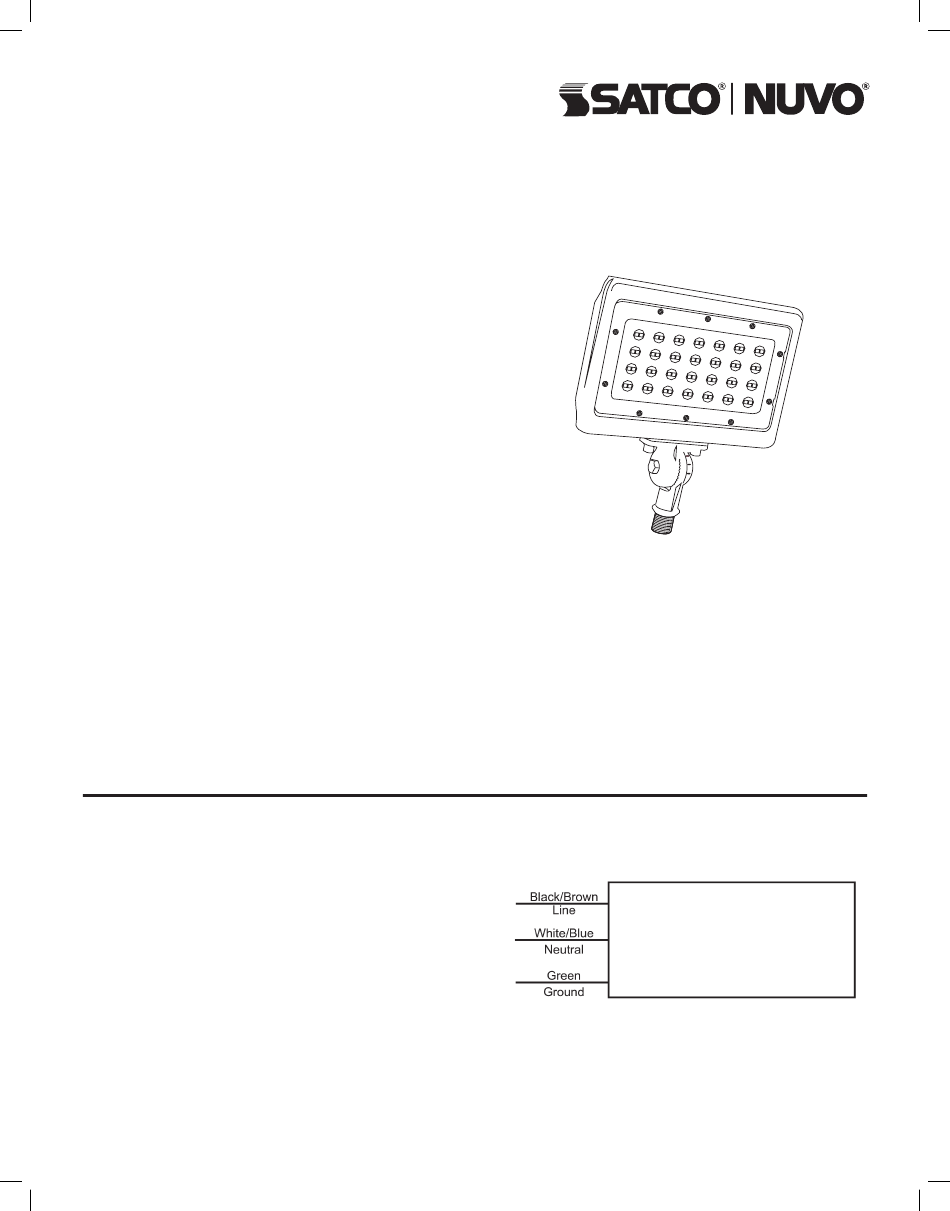

WIRING DIAGRAM
:
Fixture
Satco Products, Inc.
Brentwood, NY 11717
