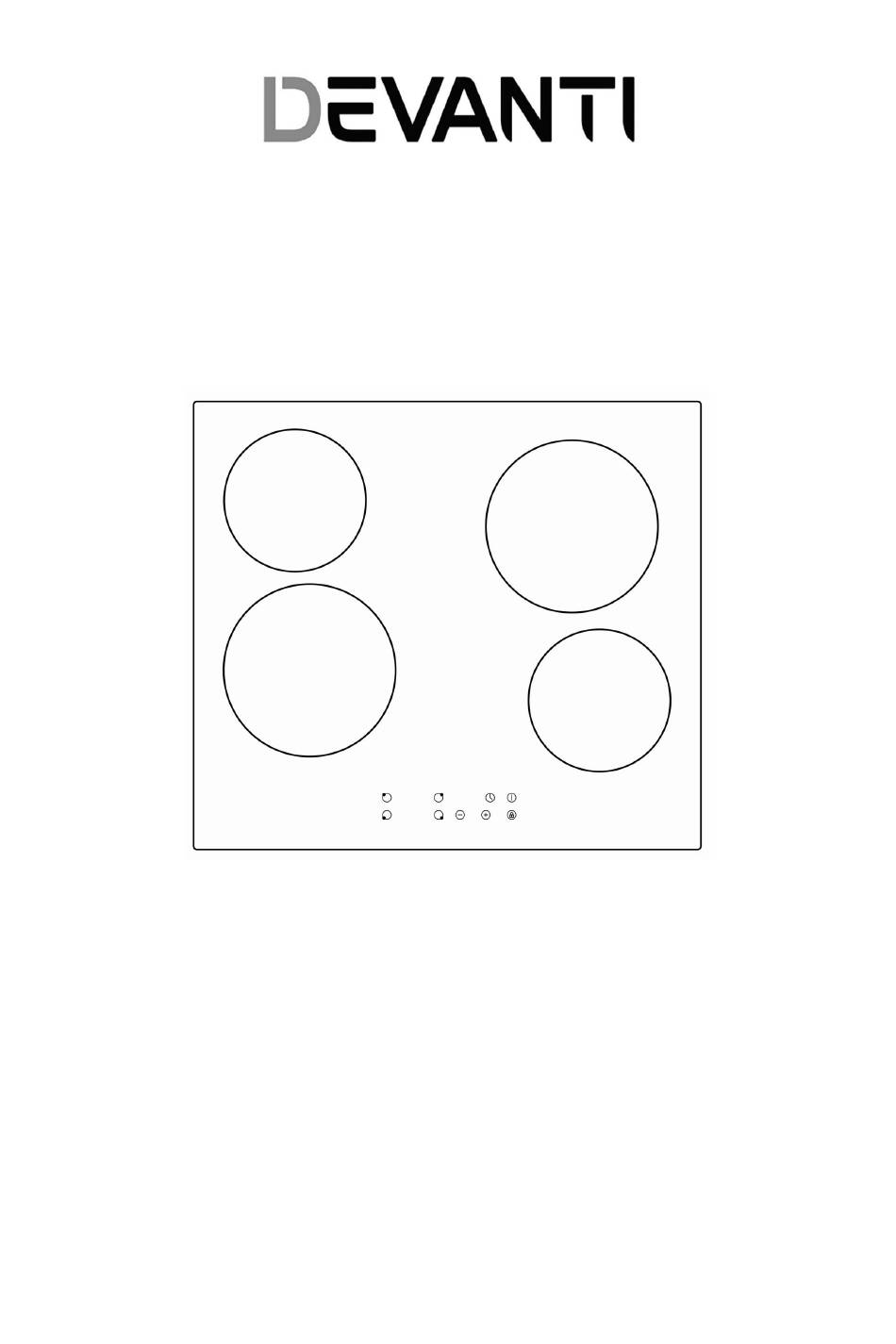

- Page 1 CERAMIC COOKTOP MODEL: CCT-B-4E-4Z-TOUCH-BK USER MANUAL Please read this manual carefully before installing and using the product to avoid product damage and personal injury. Please retain this manual for future reference.
-
Page 2: Safety Warnings
SAFETY WARNINGS Electrical Hazards • Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it. • Connection to a good earthing system is essential and mandatory. • Alterations to the domestic wiring system must only be made by a qualified electrician. - Page 3 cause burns. • Do not let your body, clothing or any item other than suitable cookware contact the Induction glass until the surface is cool. • Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot •...
- Page 4 utensil on the appliance. • Never use your appliance for warming or heating the room. • After use, always turn off the cooking zones and the cooktop as described in this manual (i.e. by using the touch controls). • Do not allow children to play with the appliance or sit, stand, or climb on it. •...
-
Page 5: Product Overview
PRODUCT OVERVIEW TOP VIEW 1.1800W zone 2. 1200W zone 3. 1800W zone 4. 1200W zone 5. Glass ceramic plate 6. Control panel CONTROL PANEL 1. Heating zone selection controls 2. Timer setting 3. Power or timer regulating controls 4. Keylock control 5. -
Page 6: Product Information
PRODUCT INFORMATION The ceramic cooktop is designed to meet different kinds of cuisine demands because of its resistance wire heating,micro-computerised control and multi- power selection. It really is the optimal choice for modern families.Safe and reliable,our ceramic cooktop help makes your busy lifestyle easier with hassle-free cooking at all times with every meal. -
Page 7: Using Your Ceramic Cooktop
Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking zone. Always centre your pan on the cooking zone. Always lift pans off the ceramic cooktop – do not slide, or they may scratch the glass. -
Page 8: Locking The Controls
4. Select a heat setting by touching the “-” or “+” control. • If you don’t choose a heat setting within 1 minute, the ceramic cooktop will automatically switch off. You will need to start again at step 1. • You can modify the heat setting at any time during cooking. -
Page 9: Using The Timer
3. You can now start using your ceramic cooktop. When the hob is in the lock mode, all the controls are disable except the ON/OFF , you can always turn the ceramic cooktop off with the ON/OFF control in an emergency, but you shall unlock the hob first in the next Operation. - Page 10 Using the Timer as a Minute Minder 1. Make sure the cooktop is turned on. Note: you can use the minute minder even if you’re not selecting any cooking zones. 2. Touch the timer control, the timer indicator will start flashing and “30”...
- Page 11 Setting the timer to turn one cooking zone off 1. Touching the heating zone selection control. 2. Touch the timer control, the timer indicator will start flashing and “30” will show in the time display. 3. Set the time by touching the control of the timer Hint: Touch the “-”...
- Page 12 6.When cooking timer expires, the corresponding cooking zone will be switch off automatically and show “H”. Setting the timer to turn more than one cooking zone off 1. If more than one heating zone use this function, the timer indicator will show the shortest time.
-
Page 13: Cooking Guidelines
COOKING GUIDELINES Cooking Tips • When food comes to the boil, reduce the power setting. • Using a lid will reduce cooking times and save energy by retaining the heat. • Minimise the amount of liquid or fat to reduce cooking times. •... -
Page 14: Heat Settings
cooking large quantities, cook the food in several smaller batches. 3. Preheat the pan briefly and add two tablespoons of oil. 4. Cook any meat first, put it aside and keep warm. 5. Stir-fry the vegetables. When they are hot but still crisp, turn the cooking zone to a lower setting, return the meat to the pan and add your sauce. - Page 15 CARE AND CLEAING What? How? Important! Everyday soiling on 1. Switch the power to the • When the power to the cooktop glass (fingerprints, cooktop off. is switched off, there will be marks, stains left by 2. Apply a cooktop cleaner no ‘hot surface’...
-
Page 16: Troubleshooting
TROUBLESHOOTING Problem Possible causes What to do The cooktop cannot No power. Make sure the cooktop is Be turned on. connected to the power supply and that it is switched on. Check whether there is a power outage in your home or area. If you’ve checked everything and the problem persists, call a qualified technician. -
Page 17: Failure Display And Inspection
FAILURE DISPLAY AND INSPECTION If an abnormality comes up, the ceramic cooktop will enter the protective state automatically and display corresponding protective codes: Problem Possible causes What to do Shut down and restart the hob or Open or short circuit of replace a new heating element heating element sensor. -
Page 18: Specifications
SPECIFICATIONS Model CCT-B-4E-4Z-TOUCH-BK Cooking Zones 4 Zones Supply Voltage/Frequency 220-240V~, 50-60Hz Rating Power 5490-6533W Product Size L×W×H(mm) 590X520X52 Built-in Dimensions A×B (mm) 560X490 COOKTOP INSTALLATION Selection of installation equipment Cut out the work surface according to the sizes shown in the drawing. -
Page 19: Installation Brackets
In all circumstances,ensure that the cooktop is well ventilated and the air inlet And outlet are not blocked and that the cooktop is in good working condition. Note: The safety distance between the cooktop and the cupboard above should be at least 760mm. INSTALLATION BRACKETS 1. - Page 20 CAUTIONS . The ceramic cooker hob must be installed by qualified personnel or technicians. We have professionals at your service. Please never conduct the operation by yourself. 2. The ceramic cooker hob shall not be mounted to cooling equipment, dishwashers and rotary dryers. 3.
- Page 21 1. If the cable is damaged or needs replacing, this should be done by an after-sales technician using the proper tools, so as to avoid any accidents. 2. If the appliance is being connected directly to the mains supply, an omnipolar circuit breaker must be installed with a minimum gap of 3mm between the contacts.
