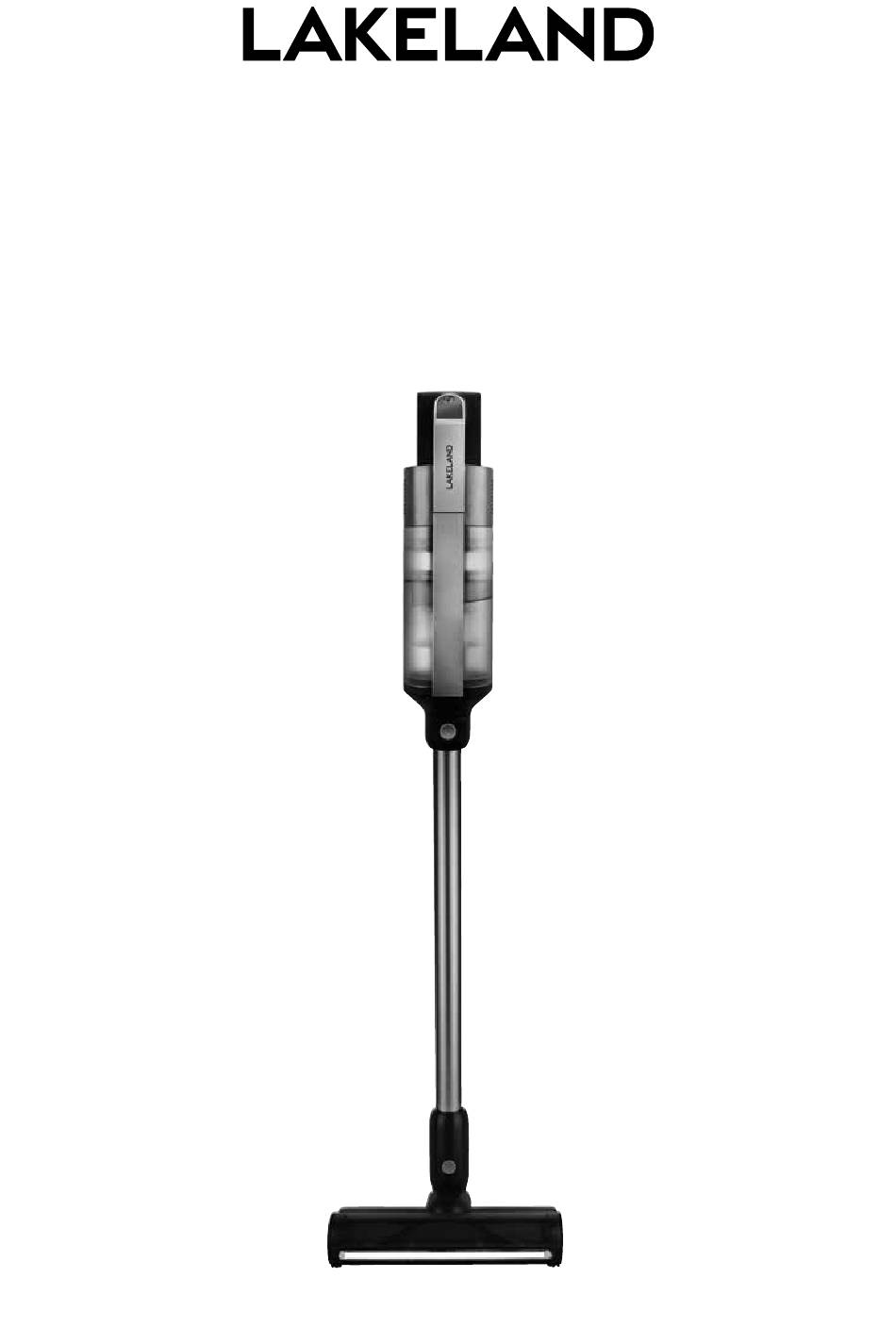

- Page 1 CORDLESS VACUUM CLEANER INSTRUCTION BOOKLET Model: 46616...
-
Page 2: Table Of Contents
Ideal for dry clean-ups of small amounts around the home and in the car. It is suitable for use on worktops, tables, upholstered furniture and similar items. Here at Lakeland, our award-winning family-owned business still offers the same excellent quality, value for money and exceptional customer service as when we founded the company back in the 1960s. -
Page 3: Product Features
PRODUCT FEATURES 1. Main unit 2. Display panel 3. Power trigger 4. Battery pack 5. Dust container 6. Crevice tool 7. Wall mount charging unit with accessory holder 8. Mattress and stairs brush 9. Aluminium tube 10. Floor brush 11. Mains charger adaptor 12. -
Page 4: Safety Precautions
Lakeland Customer Services team on 015394 88100 or info@lakeland.co.uk • Do not use this appliance if the lead is damaged. Contact the Lakeland Customer Services team on 015394 88100 or info@lakeland.co.uk • Always use the appliance on a dry surface and not in rooms with a high humidity. - Page 5 AC ADAPTOR - CHARGER • Only use the adaptor supplied by Lakeland. • The AC adaptor has been designed for a specific voltage. Always check that the mains voltage is the same as that stated on the rating plate.
-
Page 6: Using Your Cordless Vacuum Cleaner For The First Time
USING YOUR CORDLESS VACUUM CLEANER FOR THE FIRST TIME • Unpack the appliance, remove all of the packaging materials. INSTALLING THE WALL MOUNT CHARGING UNIT • Remove the wall mounting plate from the back of the wall mount charging unit, by pulling down on the wall mounting plate. - Page 7 • Insert the mains charger adaptor into the bottom of the wall mount charging unit. • When the mains charger adaptor is not in use charging up the appliance it can also be wound round the back of the wall mount holder. •...
-
Page 8: Charging The Cordless Vacuum Cleaner
CHARGING THE CORDLESS VACUUM CLEANER • Place the mains charger adaptor into the electrical wall power socket and switch on. • Only use the mains charger adaptor which is supplied with the appliance. • Fully charge the appliance before first use. •... - Page 9 Insert the mains charger adaptor directly into the battery. During charging the battery, in any of the three ways, the battery charging light here will flash. NOTE: If you are charging the battery by this method, you will not see when it is fully charged as the display is on the main unit, which is not attached.
-
Page 10: Instructions For Use
INSTRUCTIONS FOR USE • The appliance should only be used if it has been completely and correctly assembled. • To ensure the best performance regularly check and clean the accessory attachments and aluminium tube. • When you switch on the vacuum cleaner for the first time you may notice a slight burning smell, this is normal for a new appliance and will stop after a few uses. - Page 11 MAIN OPERATION • When the appliance is assembled with an accessory attached press the power trigger located on the inside of the handle and the appliance will start to run. • The default setting is ‘AUTO’ when the floor brush is Power attached.
-
Page 12: Frequently Asked Questions
Check the filters and dust container for blockages and clear. If the smell persists or if when used frequently the appliance develops a smell, stop using it, switch off and unplug from the mains socket and contact Lakeland Customer Services team on 015394 88100 or info@lakeland.co.uk... -
Page 13: Error Codes
ERROR CODES CODE DESCRIPTION Air Flow Blocked There is a blockage in the appliance, please refer to the section below on ‘Air Flow Blocked’. Error 1 The life of the battery is about ended and the battery needs to be replaced. Error 2 NTC sensor has failed and the battery will need to be replaced or handed over to a professional for maintenance. - Page 14 AIR FLOW BLOCKED • When ‘Air Flow Blocked’ appears on the display panel, there is a blockage in the appliance, the pipe or filters might be blocked. • Remove the accessory from the appliance and check that there is no blockage in it. •...
- Page 15 ROLLER STUCK FLOOR BRUSH • Press the roller brush release button on the end of the floor brush head and take out the roller brush. • Clean the hair and dirt off the roller brush. • Replace the roller brush back into the brush head and click into place.
-
Page 16: Care And Cleaning
CARE AND CLEANING • Switch off the appliance and let it cool completely before cleaning. • To ensure the best performance regularly check and clean the accessory attachments and aluminium tube. • Check the parts for wear or damage after every few uses. •... - Page 17 CLEANING THE DUST AND HEPA FILTERS • Remove the accessory from the appliance. • Empty the dust container over a bin. • Remove the dust container from the main unit. HEPA filter • Then remove the HEPA filter, place your fingers into the recess and pull directly out, while pressing button (B).
- Page 18 CLEANING THE FLOOR BRUSH • Remove the floor brush or mattress and stairs brush from the appliance, by pressing the grey button and pulling on the accessory. FLOOR BRUSH • Press the roller brush release button on the end of the floor brush head and take out the roller brush.
-
Page 19: Technical Information
TECHNICAL INFORMATION Vacuum (Main product body) Voltage: 25.2V. Power: 550W. Floor brush Voltage: 22V. Power: 50W. Mattress and stair brush Voltage: 22V. Power: 15W. AC Adaptor Input: 100-240V ~ 50-60Hz Output: 30VDC, 1.2A. RECYCLING YOUR ELECTRICALS The Waste Electrical and Electronic Equipment (WEEE) Directive requires UK distributors to maximise separate collection and environmentally friendly processing of WEEE. - Page 20 Lakeland Alexandra Buildings, Windermere, Cumbria, UK LA23 1BQ Tel: +44(0)15394 88100 lakeland.co.uk...
