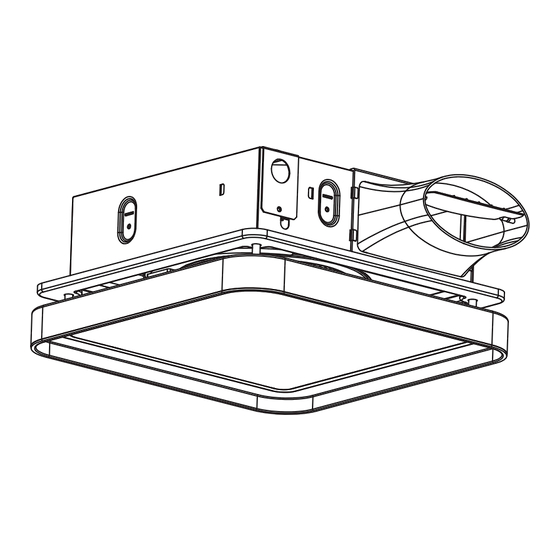

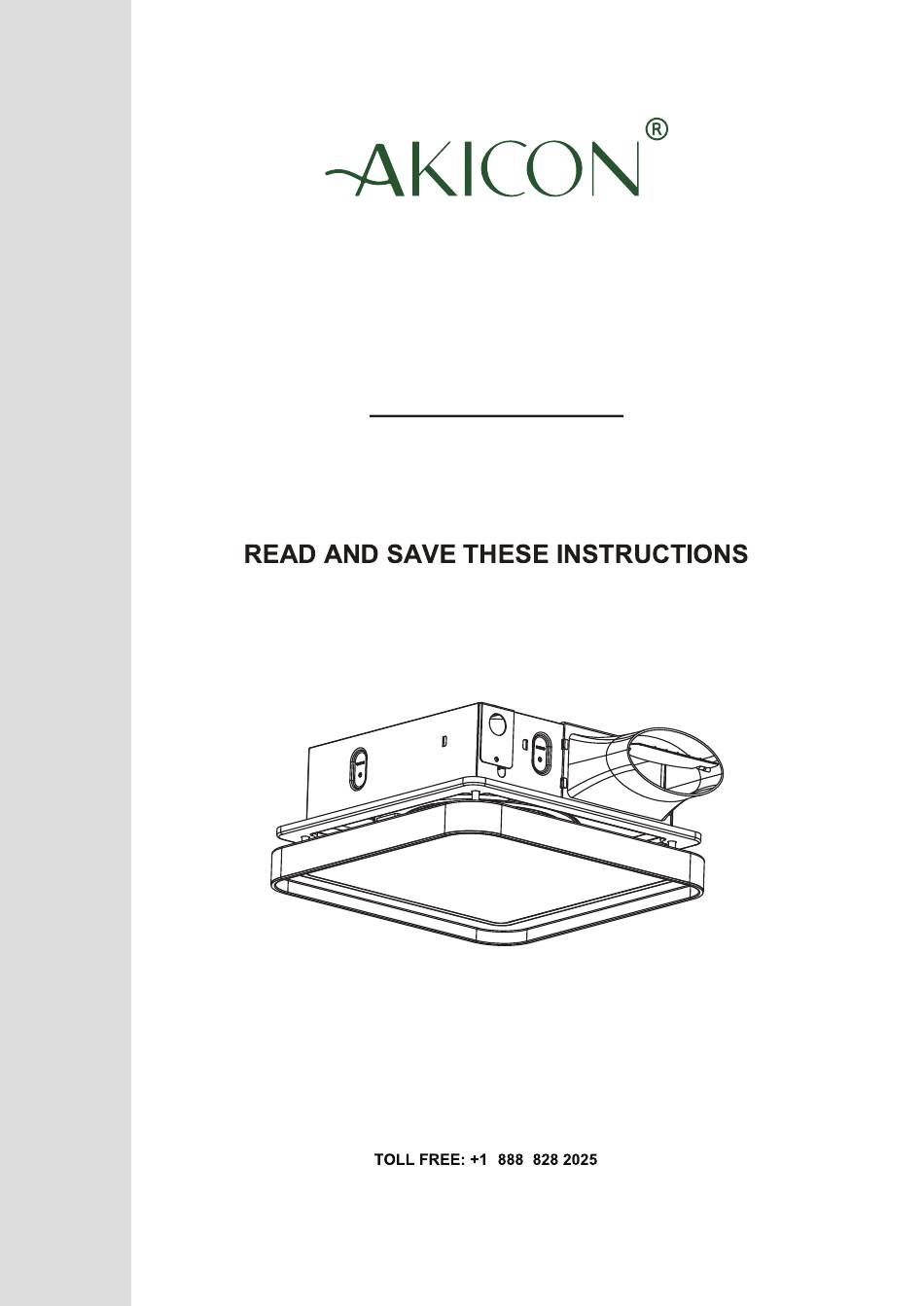

- Page 1 USE AND CARE GUIDE AK18CL1-W AK18CL1-B AK18CL1-S Ventilation Fan with Light Questions, problems, missing parts? Before returning to the store, call AKICON Customer Service 8 a.m.-6 p.m.,EST, Monday-Friday service@akiconshop.com AKICONSHOP.COM...
-
Page 2: Safety Information
Safety Information READ AND SAVE THESE INSTRUCTIONS WARNING — TO REDUCE THE RISK OF FIRE ELECTRIC SHOCK OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: a. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer. -
Page 3: Pre-Installation
Pre-Installation PLANNING FOR SUCCESSFUL INSTALLATION When installing the ventilation fan in a new construction site, install the main body of the fan and duct work during the rough-in construction of the building. The grille should be installed after the finished ceiling is in place. When installing in existing construction, use the dimensions on page 7 to determine the required hole size for the ceiling. -
Page 4: Package Contents
Pre-Installation Package contents 1 × light component 1 × fan housing 1 × duct connector 1 × 4” oval to 4” round convertor 8 × long wood screws — 4 —... -
Page 5: Installation - New Construction
Installation - New Construction CAUTION: Make sure power is switched off at service panel before installation. Do not install in cooking area. Choose the location of your fan to ensure the best air and sound performance. It is recommended that the length of ducting and the number of elbows be kept to a minimum, and that insulated hard ducting be used. - Page 6 Installation - New Construction STEP 5 Mount the fan housing Notion: There are two mounting ways to mount the fan housing. Please try to use the Step 5b as possible as you can. Step 5a. Mount with Mounting Holes (No Attic Access) step 5a.
-
Page 7: Troubleshooting
Troubleshooting PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Be sure the CFM rating on the fan matches CFM too great the size of your room Check damper to ensure it is opening and Damper not working properly or damaged closing properly. If the damper has become damaged, please call Customer Service The fan seems louder Be sure you do not have any sharp bends in...
