Summary of Contents for Signaline HEAT LocatorPlus-EN

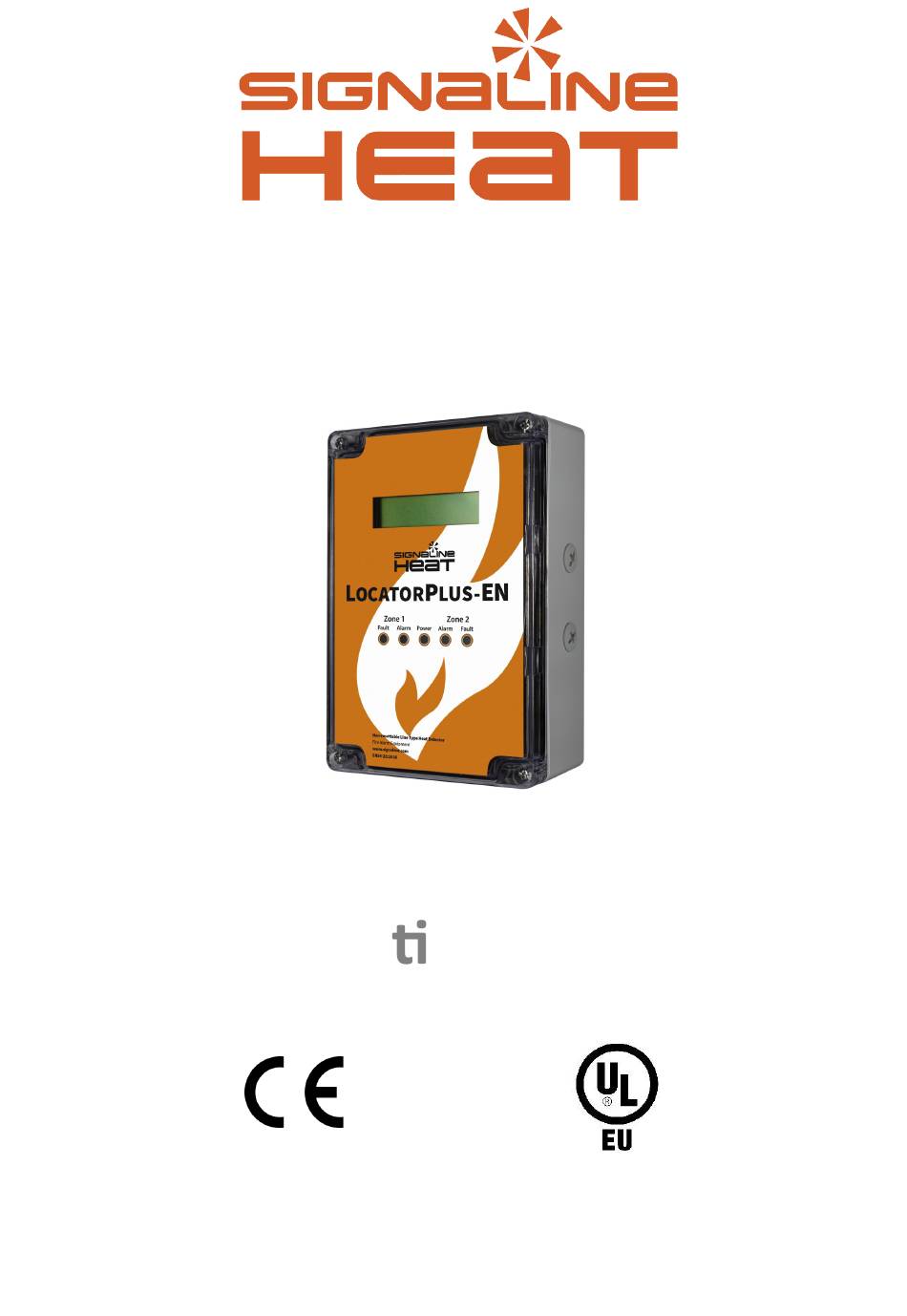

- Page 1 LocatorPlus-EN Installa on Manual Tel: +44(0)1252 725257 Revision 2 (2023) © 2023/24 LGM Products Ltd. Email: sales@lgmproducts.com Web: www.signaline.com ISO 9001:2015 certified Address: LGM Products Ltd, Unit 3 Quantum Business Park, Beacon Hill Road, Hampshire, GU52 8EA United Kingdom...
-
Page 2: Table Of Contents
Dimensional Drawings and Moun ng Specifica on Commissioning Commissioning (cont.) Tes ng & Verifica on Two-Wire RS485 Modbus RTU/ASC11 Communica ons Rese ng the Signaline LocatorPlus-EN PleaseÊreadÊthisÊinstruc onÊleafletÊthoroughlyÊbeforeÊcommencingÊinstalla on. Tel: +44(0)1252 725257 Revision 2 (2023) © 2023/24 LGM Products Ltd. -
Page 3: Key Points
Only use Signaline FT-EN Linear Heat Detec on cable with the Signaline LocatorPlus-EN. Þ Test the Signaline FT-EN Linear Heat Detec on cable before connec ng it to the Signaline LocatorPlus- Þ EN using a mul meter. -
Page 4: Signaline Locatorplus-En Overview
Signaline LocatorPlus-EN Overview The Signaline LocatorPlus-EN is a dual zone module for monitoring up to two zones of Signaline FT-EN linear heat detector cable. If an overheat/fire situa on triggers either zone of the cable, this unit automa cally calculates and displays the distance along the cable, in feet and metres, to the alarm point. -
Page 5: Product Specifica On
0.08mm2 (28AWG) to 4mm2 (11AWG) Supervised circuits Power, Input Zone 1 & Input Zone 2 Inputs Up to two Class B zones of Signaline FT-EN Linear Heat Detec on cables Zone length 1m to 1000m (3,280 ) End of Line resistor 3.6kohm (included) -
Page 6: Installa On
Detec on cable for a fault (open circuit) or an alarm (overheat or fire condi on). Due to the wide range of applica ons that Signaline FT-EN Linear Heat Detec on cable can be used for, it may not always be possible, or be too me consuming, to locate where along the cable where an alarm has occurred. -
Page 7: Connec On Diagram
The unit is provided with a 3.6kohm end of line resistor in each zone input. If only one zone is required, leave the 3.6kohm resistor connected across the zone which is not in use. Otherwise the 3.6kohm resistor should be connected at the end of the Signaline FT-EN Linear Heat Detec on cable. Tel: +44(0)1252 725257 Revision 2 (2023) ©... -
Page 8: Opera Ng Modes
There are two opera ng modes for the Signaline LocatorPlus-EN: 1. Independent (see Fig. 3) – This is when the Signaline LocatorPlus-EN is used as a two zone system. When a fault or overheat condi on occurs on a zone of Signaline FT-EN Linear Heat Detec on cable, the corresponding fault or alarm output respec vely is triggered. -
Page 9: Opera Ng Modes (Cont.)
Signaline LocatorPlus-EN. The alarm output is only ac vated when both zones of Signaline FT-EN Linear Heat Detec on cable trigger an alarm due to an overheat condi on. If one zone of Signaline FT- EN Linear Heat Detec on cable input registers an alarm but the second does not, the alarm output will not be ac vated. -
Page 10: Leader Cable
This may be required if the expected ambient temperature range, or other environmental condi ons, where the Signaline FT-EN Linear Heat Detec on cable is to be used is greater than the maximum ambient temperature range for the Signaline LocatorPlus-EN. -
Page 11: Sta C Discharge Cau Onary
Do not handle the printed circuit board (PCB) without proper protection against static discharge. Þ In the unlikely event that the Signaline LocatorPlus-EN malfunctions after encountering a static discharge correct operation of the unit can be restored by interrupting power to unit for a brief period (approximately 10 seconds). -
Page 12: Dimensional Drawings And Moun Ng Specifica On
The maximum screw head diameter is 7mm and the maximum screw thread diameter is 4mm. Fig. 5. Moun ng specifica on for Signaline LocatorPlus-EN Fig. 6. Moun ng specifica on for Signaline LocatorPlus-EN Tel: +44(0)1252 725257 Revision 2 (2023) ©... -
Page 13: Commissioning
Signaline FT-EN linear heat detector cable. Select “Yes” and press the Set bu on to con nue. 9. If ‘Yes’ in step 8, the Signaline LocatorPlus-EN will then ask if the zone is ready to be calibrated. The leader cable/IS barrier must be connected to the Signaline LocatorPlus-EN and securely shorted out at the point where it connects to the start of the Signaline FT-EN Linear Heat Detec on cable. -
Page 14: Commissioning (Cont.)
12. Select whether you would like the alarm outputs for both zones to be latching. If set to Yes, then if an alarm is triggered the Signaline LocatorPlus-EN will either require the power supply to be interrupted (min. 2s) or the Set bu on to be pressed to reset to normal once the alarm condi oned has been cleared. -
Page 15: Tes Ng & Verifica On
SET and SELECT bu ons for 10s or more un l the device resets. Tel: +44(0)1252 725257 Revision 2 (2023) © 2023/24 LGM Products Ltd. Email: sales@lgmproducts.com Web: www.signaline.com ISO 9001:2015 certified Address: LGM Products Ltd, Unit 3 Quantum Business Park, Beacon Hill Road, Hampshire, GU52 8EA United Kingdom... -
Page 16: Two-Wire Rs485 Modbus Rtu/Asc11 Communica Ons
Number of bytes of register values to be read (8-bit) Þ Register values (16-bits per register) The Signaline LocatorPlus-EN stores the informa on for each zone of the Signaline FT-EN Linear Heat Detec on cable in the follow- ing format: Register... - Page 17 To reset the Signaline LocatorPlus-EN unit back to the factory state, when the unit is powered up and in normal opera on (see step 20 in the Commissioning procedure), press and hold the SET and SELECT bu ons for a minimum of 10 seconds con nuously.
- Page 18 Or call 01252 725257 to speak to our sales team Tel: +44(0)1252 725257 Revision 2 (2023) © 2023/24 LGM Products Ltd. Email: sales@lgmproducts.com Web: www.signaline.com ISO 9001:2015 certified Address: LGM Products Ltd, Unit 3 Quantum Business Park, Beacon Hill Road, Hampshire, GU52 8EA United Kingdom...
