- Page 1 Operating instructions Photovoltaic heating element (ROD-550) TECHNICAL DESCRIPTIONASSEMBLY, OPERATION AND MAINTENANCE INSTRUCTIONSWARRANTYTERMS & CONDITIONS...
-
Page 2: Table Of Contents
Operation ....................................8 Maintenance and repair ................................9 Disturbances .................................... 9 Environmental protection ..............................9 Warranties ....................................9 Contact: fothermo System AG Im Starkfeld 45b 89231 Neu-Ulm Germany Phone: + 49 (0) 7346 9649960 Email: info@fothermo.com Registration Court Ulm: HRB 739609... -
Page 3: Technical Drawing

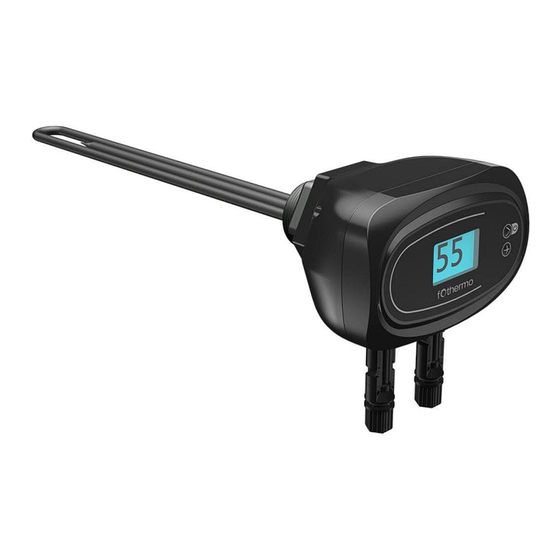

V1.0 Technical Drawing Heating element Electronics & Display Case Screw-in thread MC4 Contact Plug... -
Page 4: Specifications
V1.0 Specifications UNIT PHOTOVOLTAIC BOILER Product ROD-550 Max. Photovoltaic Heating Capacity Max. Photovoltaic Current Consumption 15,5 IP class Weight (± 3%) medical history Max. water temperature °C Integrated MPP Tracker ✓ Integrated reverse polarity protection ✓ Digital display ✓... -
Page 5: Assembly
V1.0 Assembly Step 1: Drain water from the tank. Step 2: Before inserting the heating rod into the socket, the thread of the screw-in radiator must be sealed with sealing material. Next, insert the heating rod into the desired socket with a thread of G 11/2". -
Page 6: Further Information
(including children aged 3 years and older) with Dear customers, thank you for reduced physical or mental abilities if such persons choosing a device from fothermo are under the supervision of or have been instructed System AG-Germany! by such person in the use of the device. Children must... -
Page 7: Other Things To Note
V1.0 IMPORTANT! Before connecting the electrical energy Connection to the water tank supply of the heating element, the water tank must be filled with water! Failure to comply with the The heating rod has a 11/2 inch screw-in thread. This... -
Page 8: Operation
The following table serves as a guideline for the design polarity when connecting! of the photovoltaic power depending on the climatic conditions: Climatic conditions ROD-550 Sun-poor countries, 1200 W e.g. Northern and Central Europe Sun-rich countries, e.g. southern Europe and... -
Page 9: Maintenance And Repair
V1.0 Power off: indicates that the appliance must not be disposed of in normal household waste at the end of its service Press and hold the - button for about three life. It must be handed in at a disposalcentre with seconds. - Page 10 V1.0 COMPLIANCE WITH THEREQUIREMENTS SPECIFIED IN THE MANUAL IS A PREREQUISITE FOR THE SAFE OPERATION OF THE PURCHASED PRODUCT AND IS PART WARRANTYCONDITIONS. ANY- MODIFICATIONS OR MODIFICATIONS MADE TO THE STRUCTURE OF THE PRODUCT BY THE USER OR BY PERSONS AUTHORIZED BY HIM ARE STRICTLY PROHIBITED.
