- Page 1 2GE+1POTS+WiFi(dual band) Dual Mode HGU HG323DAC Quick Installation Guide V2.0 P01.030485...
-
Page 2: Product Picture

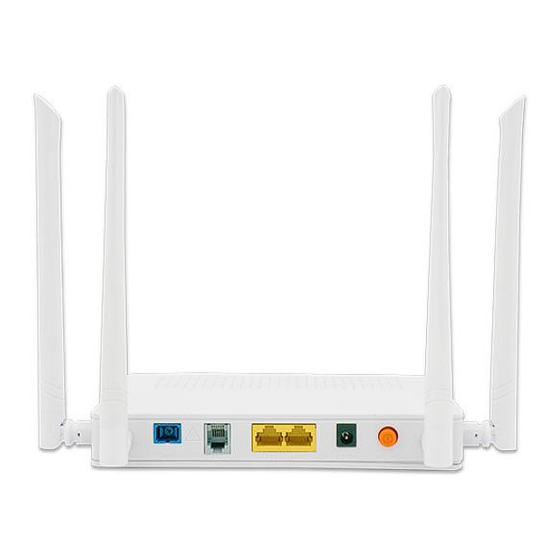

2LAN+1POTS+WiFi(dual band) Dual Mode HGU Quick Installation Guide_V2.0 1. Indicator and Interface Description 1.1 Product Picture Figure 1 2GE+1POTS+WiFi(dual band) Dual Mode HGU 1.2 Application Chart Figure 2 Application Chart 1.3 Panel Lights Figure 3 Panel Lights Mark Status Description The device is powered up. - Page 3 2LAN+1POTS+WiFi(dual band) Dual Mode HGU Quick Installation Guide_V2.0 The device is registered to PON system. Registration Device is not registered to PON system. Blink Device is registering. Blink Device does not receive optical signal. Optical signal Device has received optical signal. WAN connection is up.
-
Page 4: Packing List
2LAN+1POTS+WiFi(dual band) Dual Mode HGU Quick Installation Guide_V2.0 Pair Press down WiFi pair button to begin pairing. WiFi Press down WiFi button to enable/disable WiFi function. Table 2 Interface/button Panel 2. Packing List Contents Quantity Contents Quantity Dual Mode HGU 1 pcs Power adapter 1 pcs... -
Page 5: Fcc Statement
2LAN+1POTS+WiFi(dual band) Dual Mode HGU Quick Installation Guide_V2.0 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
