EcoLet Separera mini User Manual

Urine extraction
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
URINE EXTRACTION
User Manual
IMEL-006-2024-05-21
ecoflo.com.au

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Separera mini and is the answer not in the manual?

Questions and answers

Related Manuals for EcoLet Separera mini

Summary of Contents for EcoLet Separera mini

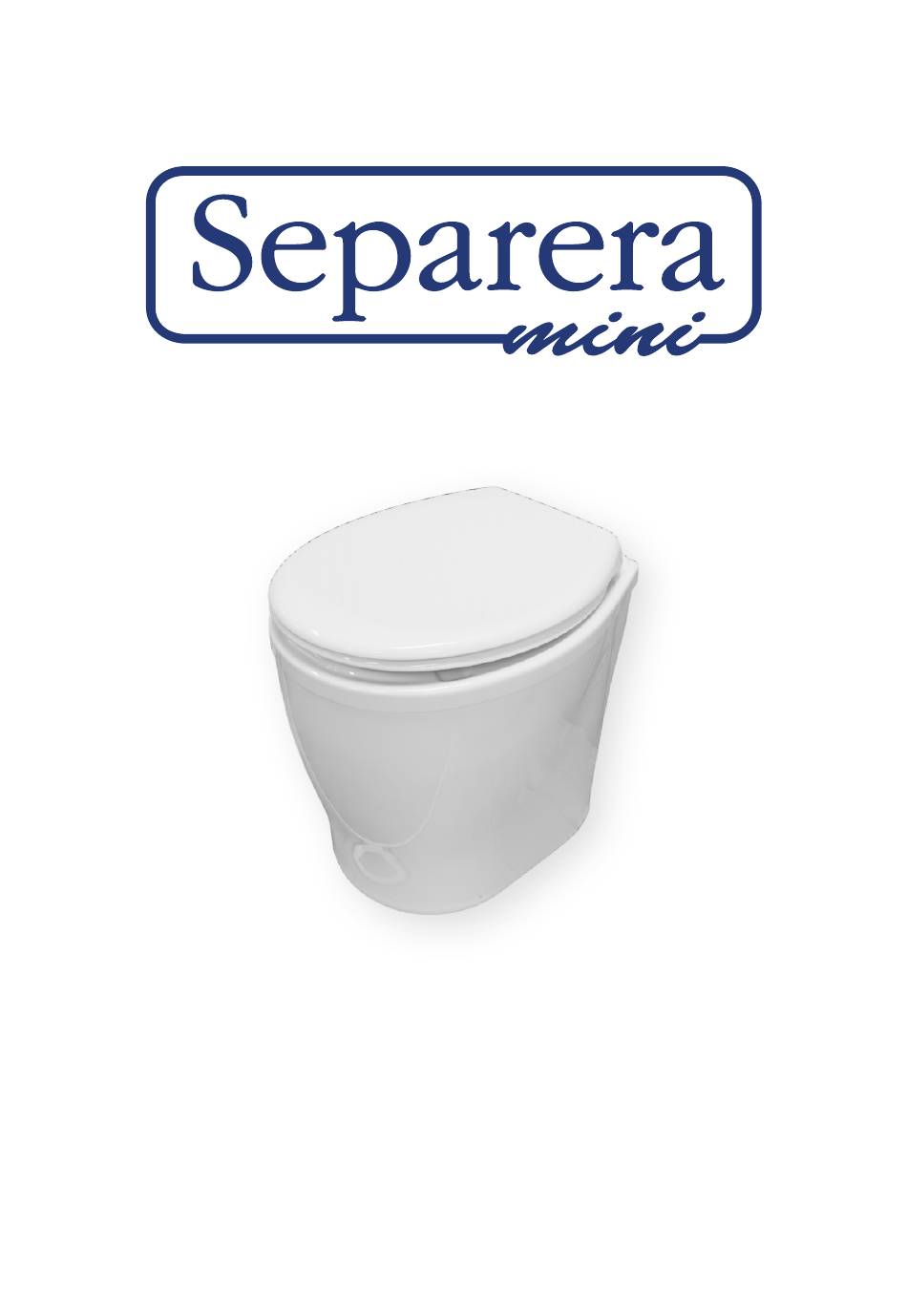

  • Page 1 URINE EXTRACTION User Manual IMEL-006-2024-05-21 ecoflo.com.au...

  • Page 2: Table Of Contents

    Table of Contents SEPARERA MINI WITH URINE EXTRACTION Contacting Environmental Health Inside the Separera box Vent Installation Kit Separera Mini cross section INSTALLATION Tools Air supply Assembly Step 1 - Unpacking the base Step 2 - Ventilation pipes through the wall or roof...

  • Page 3: Separera Mini With Urine Extraction

    This urine separating toilet is constructed from eco-friendly material and is designed to cope with high demand over many years. What does separating waste mean? Well, the toilet is designed so solid waste is separated from the liquid (urine). This means that the Separera Mini has two containers, one for urine and another for solid waste.

  • Page 4: Installation

    Installation Tools • Drill • Silicone • Holesaw for 55 and 35mm hole • Jigsaw/handsaw Air supply Make sure there is a good air supply, for example, through a 10 mm gap under the door or a vent. Air will be evacuated through the toilet, so cross-draughts must be avoided.

  • Page 5: Step 3 - Urine Hose Through The Wall Or Floor

    Step 3 - Urine hose through the wall or floor 1. Make a hole for the urine hose, either through the wall or floor. - Through wall: up from floor c/c 25mm - Through floor: from wall c/c 40mm. When the hose is installed through the wall make sure that you have a slope of at least 2 degrees (2 cm per meter) to ensure enough drain out from the toilet.

  • Page 6: Maintenance

    Maintenance Urine drainage Urine can be drained away in a number of different ways. Check what is required by your local authority; there are variations depending on ground conditions and the water table. There must be a drop in the hose coming out and away from the toilet to avoid salt deposits; for longer distances, its better to connect it to a 32mm PVC pipe.

  • Page 7: Contact

    CONTACT The place of purchase is responsible for handling warranty claims and addressing product concerns during the warranty period. AUSTRALIA Ecoflo Wastewater Management ecoflo.com.au PH 1300 138 182 or (07) 3889 6144 info@ecoflo.com.au Available Monday - Friday (excluding public holidays) NEW ZEALAND Waterless Composting Toilets NZ wctnz.co.nz...
