Summary of Contents for Excel GB-L0218

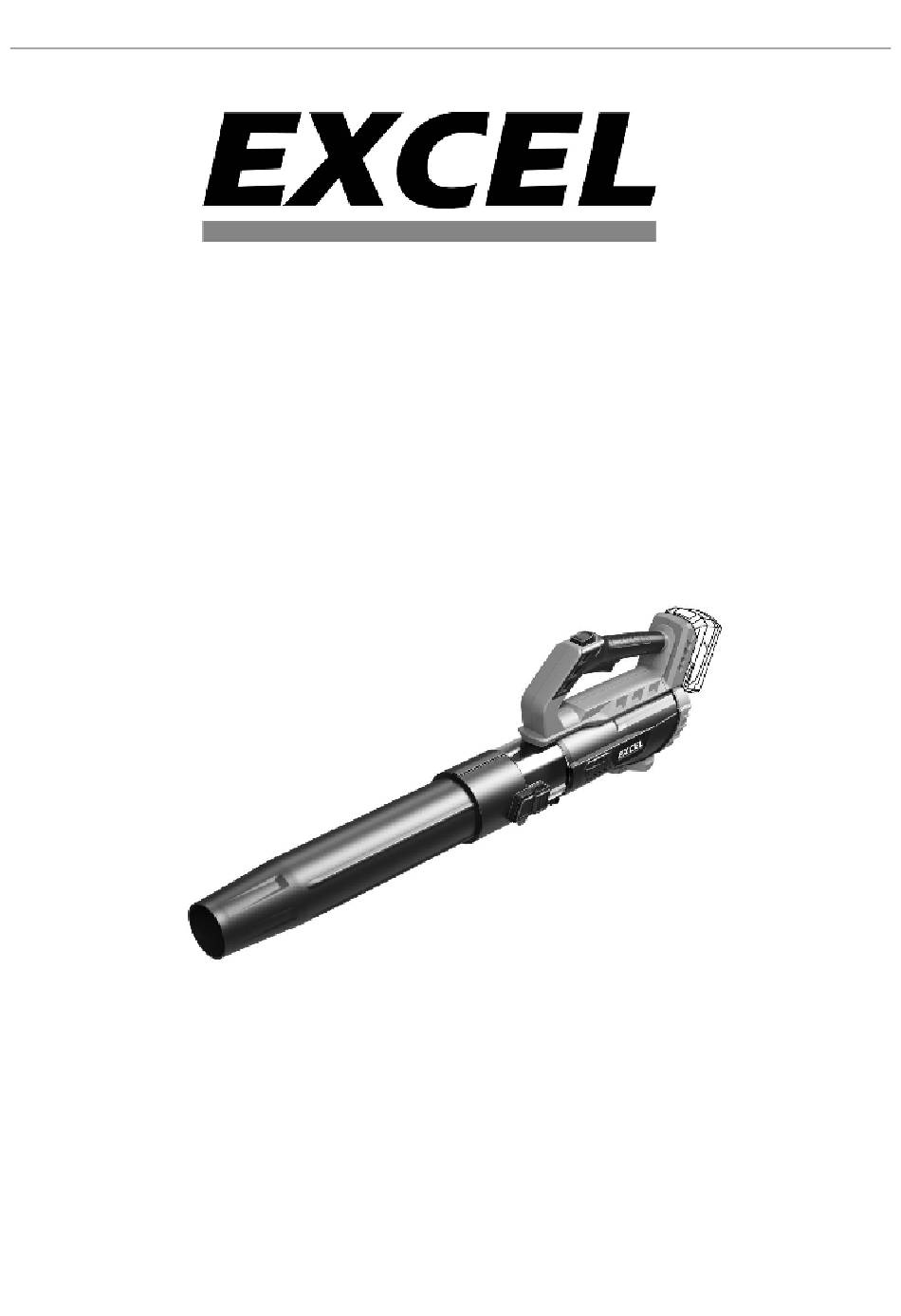

- Page 1 Original Instructions 18V Cordless Blower 11785/GB-L0218 INSTRUCTION MANUAL...
-
Page 2: Description Of The Symbols
Original Instructions DESCRIPTION OF THE SYMBOLS Symbols are used in this manual to attract your attention to possible risks. The safety symbols and the explications which accompany them must be perfectly understood. The warning themselves do not prevent the risks and cannot be a substitute for proper methods of avoiding accidents. Before any use, refer to the corresponding paragraph in the present manual. - Page 3 Original Instructions Sound power level Recycle unwanted materials instead of disposing of them as waste. All tools, hoses and packaging should be sorted, taken to the local recycling centre and disposed of in an environmentally safe way. On battery Do not expose the battery to water Do not expose the battery to fire or incinerate Do not expose the battery to high temperatures (above 40°C) On charger...
- Page 4 Original Instructions SAFE OPERATING PRACTICES FOR HAND-HELD GARDEN BLOWERS. IMPORTANT READ CAREFULLY BEFORE USE. KEEP FOR FUTURE REFERENCE. 1） Training a) Read the instructions carefully. Be familiar with the controls and the proper use of the appliance. b) Never allow children, persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge or people unfamiliar with these instructions to use the machine.
- Page 5 Original Instructions e) If the machine should start making any unusual noise or vibration, immediately shut off the power source and allow the machine to stop. Remove battery and take the following steps before restarting and operating the machine: i) inspect for damage; ii) replace or repair any damaged parts;...
-
Page 6: Other Safety Instructions
Original Instructions OTHER SAFETY INSTRUCTIONS a) Make sure all the parts assembled fully and properly before use. b) To prevent dust irritation the wearing of a face mask is recommended. c) Operate the appliance only in daylight or in good artificial light. d) Keep all cooling air inlets clear of debris. - Page 7 Original Instructions v) Do not expose batteries to heat or fire. Avoid storage in direct sunlight. w) Do not subject battery to mechanical shock. x) Keep battery out of the reach of children. y) The battery gives its best performance when it is operated at temperature (20°C ±5°C).
- Page 8 Original Instructions d) Treat battery garden tools carefully. Check whether the moving parts work perfectly and do not drag, whether not broken or damaged to such an extent that functioning of the tools could be affected. Have any damaged parts repaired before using the machine. Many accidents are caused by poorly maintained power tools.
- Page 9 Original Instructions When replacing parts, please observe the installation instructions provided and remove the battery beforehand. When working with the device, hold it firmly with hands and hold it away from your body. Before starting the device, make sure that the blowing device is not touching anything.
- Page 10 Original Instructions SAFETY WARNING FOR BLOWER a. Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow. b. Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts. c.
- Page 11 Original Instructions use the battery charger. Never open the battery charger yourself. Have repairs performed only by a qualified technician and only using original spare parts. Damaged battery chargers, cables and plugs increase the risk of an electric shock. • Do not place any objects on the battery charger and do not place the battery charger on soft surfaces.
-
Page 12: Intended Use
• Minimize remaining hazards by following the instructions in ”Safety Rules”, ”Use only as authorized” and in the entire operating manual. TECHNICAL DATA Product name 18V Cordless blower Model GB-L0218 Rated voltage 18Vd.c. No-load speed 13000/min Max.Air Volume 570m Motor speed... - Page 13 Original Instructions Recommended battery BA-1850B Li-ion 18V d.c. 5.0Ah Model : CH-1802A Input : 100-240V~ 50Hz 60W Output : 20V DC 2.3A Charging time : 140MIN Model :CH-1802B Input : 100-240V~ 50Hz 125W Recommended charger Output : 20VDC, 5A Charging time : 70 MIN Model :CH-1802D Input : 100-240V~ 50Hz 130W Output : 20VDC, 2.3AX2,...
- Page 14 Original Instructions LIST OF MAIN PART (Fig. 1) 1. ON/OFF trigger switch 2. Turbo button 3. Handle 4. Blower tube 5. Battery(excluded)
- Page 15 Original Instructions Before using the equipment Battery charger (Fig.1) The lithium-ion battery can be charged at any time and will not develop a “memory” when charged after only a partial discharge. It is not necessary to run down the battery pack charge before recharging.
- Page 16 Original Instructions b. Insertion and removal of rechargeable battery (Fig. 2) Depress the battery-release button located on the front of the battery pack to release battery pack. Pull the battery pack out and remove it from the tool. Fig. 2 Warning! Always remove the battery pack before making adjustments to the equipment.
-
Page 17: Operation
Original Instructions Press the release button, so that you can separate the tube.Do not try to separate the tubes by force or by using tools. OPERATION Turbo button(2): A function of increase in airflow”turbo”,is used only on occasions when leaves and trash is stuck or when the normal airflow is not sufficient. -
Page 18: Maintenance & Storing
Original Instructions MAINTENANCE & STORING CAUTION: Before putting away or cleaning, switch off and remove the battery pack. Cleaning • Regular cleaning and maintenance of your blower will ensure efficiency and prolong the life of your machine. During operation, keep the air slots clean and free of debris. •... - Page 19 Original Instructions Disposal Electronic devices are recyclable waste and must not be disposed of in the household waste. At the end of its service life, dispose of the product according to the relevant statutory regulations. Remove any rechargeable battery, if necessary, and dispose of it separately from the product.
- Page 20 Original Instructions Exceltools.co.uk Sales@exceltools.co.uk...
