Page 4: Get Started

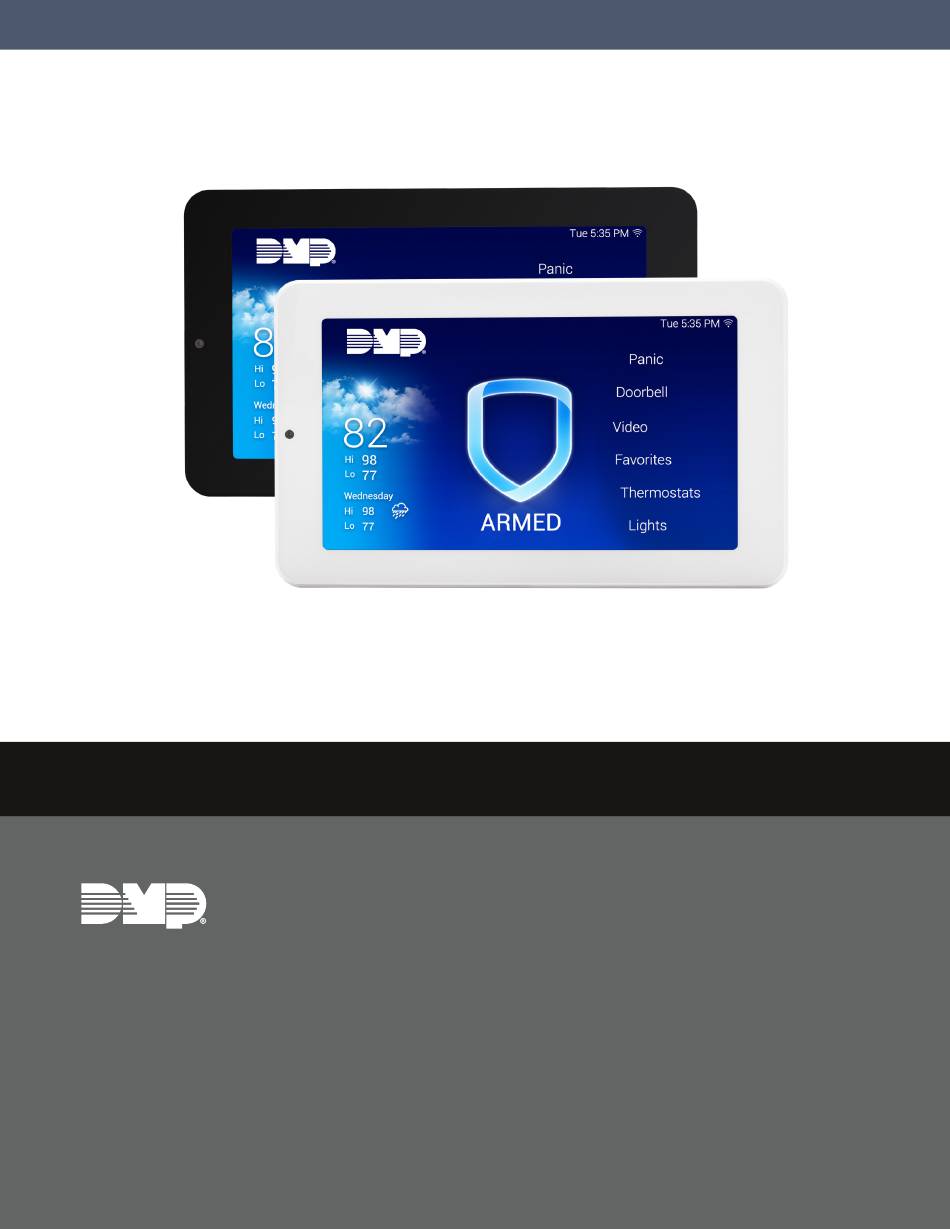

8860 7-Inch Touchscreen Keypads offer an easy to use touchscreen interface with an on-board camera, optional panic keys, an internal speaker, a simple terminal connection to a 4-wire keypad bus, and other features. The 8860 has enhanced Wi-Fi communications to Dealer Admin™ for video system integration and image capture when arming and disarming at the keypad. -
Page 5: Update The Panel Firmware
Voice Annunciation • Level G Hardware or higher • Bluetooth Disarming • Firmware Version 241 or higher • Firmware Version 231 or higher • Wi-Fi Communication • Level G Hardware or higher 8860 Installation and Programming Guide | Digital Monitoring Products... -
Page 6: Program The Panel
If you want to connect up to three Wi-Fi keypads, set the Programming Port to 0. The default port is 2001. This must match the Panel Port in keypad Network Options. 8860 Installation and Programming Guide | Digital Monitoring Products... -
Page 7: Device Setup
For use as a standard keypad, select NO. NETWORK? For use as a Wi-Fi keypad, select YES. To finish connecting the keypad to the panel via Wi-Fi network, refer to Network Options in the Options menu. NETWORK? 8860 Installation and Programming Guide | Digital Monitoring Products... -
Page 8: Install The Keypad
Plug the power supply into an unswitched outlet. Refer to Device Type in the Programming the Panel section of this document for programming instructions. Note: DMP recommends performing system power calculations before installing more than one device on the keypad bus. -
Page 9: Mount The Keypad
Note: Once you have mounted the keypad, remove BOTTOM the plastic film on the screen. Failure to do so will affect the touch functionality of the keypad. Figure 3: Mounting Hole Locations 8860 Installation and Programming Guide | Digital Monitoring Products... -
Page 10: Connect To Wi-Fi And Update The Keypad
Enter 3577 and enter CMD. Select Check for Updates. Follow the on-screen prompts to complete update. Update the Keypad Remotely Connect the keypad to the Wi-Fi network before proceeding. Navigate to Dealer Admin. Select the user and system. Next to the keypad name, select Update. 8860 Installation and Programming Guide | Digital Monitoring Products... -
Page 11: Program The Keypad
Wi-Fi keypads, set the Programming Port to 0 in Network Options on the panel. If the Programming Port is not set to 0, then only one Wi-Fi keypad can be connected. Refer to the table below for more information. 8860 Installation and Programming Guide | Digital Monitoring Products... -
Page 12: Check For Updates
The keypad has local and remote update capabilities. The keypad needs to be connected to Wi-Fi to perform a local and remote update. The remote update capabilities can be used for per device updates through Dealer Admin. 8860 Installation and Programming Guide | Digital Monitoring Products... -
Page 13: Program Keypad Options
Ok to return to the previous menu. Set Arm/Disarm Snapshot Select this option to enable or disable Snapshot Verification Events at the keypad during an Arming or Disarming event. Default is On. 8860 Installation and Programming Guide | Digital Monitoring Products... -
Page 14: Program The Carousel Menu
Bypass. Default is no items selected. Select Edit Favorites to display the Edit Z-Wave icon on the Favorites screen. Select Edit Z-Wave to display the Edit Z-Wave icon for the Lights, Doors, Thermostats, and Appliances screens. 8860 Installation and Programming Guide | Digital Monitoring Products... -
Page 15: Program Z-Wave Devices
Z-Wave favorites can be assigned at the keypad. Press Activate next to the name of the favorite that you want to activate. The name of the favorite will change to Activated after the process is complete. 8860 Installation and Programming Guide | Digital Monitoring Products... -
Page 16: Train Your Customers
If arming, HOME AWAY displays. Select HOME to arm the perimeter or select AWAY to arm all areas. If a selection is not made, all areas will automatically arm AWAY. If ENTER CODE displays, enter a user code at the keypad. 8860 Installation and Programming Guide | Digital Monitoring Products... -
Page 17: Bluetooth Disarming
▶ Press !@# to enter special characters ▶ Press 123 to enter numbers Tap CMD. Note: This notification refers to the panel Wi-Fi network only. The 8860 Wi-Fi settings can be found in Options. 8860 Installation and Programming Guide | Digital Monitoring Products... -
Page 18: Clean The Keypad
To enable the keypad to annunciate that the pre-defined zone name has been opened when the zone is tripped, use the toggle and adjust the annunciation volume with the slider in the Brightness and Volume settings menu. 8860 Installation and Programming Guide | Digital Monitoring Products... -
Page 19: Pre-Defined Zone Name List
SAFE DOOR SOUTH MOTION SHED DOOR STORAGE MOTION SHIPPING DOOR TELLER MOTION SHOP DOOR UPSTAIRS MOTION SIDE DOOR VAULT MOTION SIDE ENTRY DOOR WAREHOUSE MOTION SLIDING DOOR WEST MOTION 2ND FLOOR MOTION 8860 Installation and Programming Guide | Digital Monitoring Products... -
Page 20: Wi-Fi Enabled Video Features
WI-FI ENABLED VIDEO FEATURES This section explains how to use the different video features available on the 8860 Series keypad when it is connected to a Wi-Fi network. Video clips will be saved in Virtual Keypad and not stored locally on the keypad. -
Page 21: Snapshot Verification Events
To remove an individual filter, press the X on each filter. Connect the Video Doorbell Note: The 8860 supports one doorbell per system. Video doorbell capabilities are only available for the DMP Model V-4061DB Video Doorbell. 1. In the Carousel menu, tap Video Doorbell. -
Page 22: Upload A Logo And Dealer Information
Note: If the logo is not downloading to the keypad, confirm that the panel date and time are correct, then press the DMP logo on the 8860 keypad. This will trigger the keypad to reach out to Dealer Admin for the new logo. -
Page 23: Icons
Z-Wave Thermostats Controls Video Decrease Increase Auto Heat Cool Room Temp Status Bar Header Home Sleep Away Perimeter All System System Ready Attention List Armed (Area) Chime Battery Trouble AC Trouble Wi-Fi 8860 Installation and Programming Guide | Digital Monitoring Products... -
Page 24: Reference
▶ When powering an 8860 from the keypad bus, to maintain auxiliary power integrity when using 22-gauge wire do not exceed 100 ft. When using 18-gauge wire do not exceed 500 ft. To increase the wire length or to add devices, install an additional power supply that is listed for Fire Protective Signaling, power limited, and regulated (12/24 VDC nominal) with battery backup. -
Page 25: Certifications
