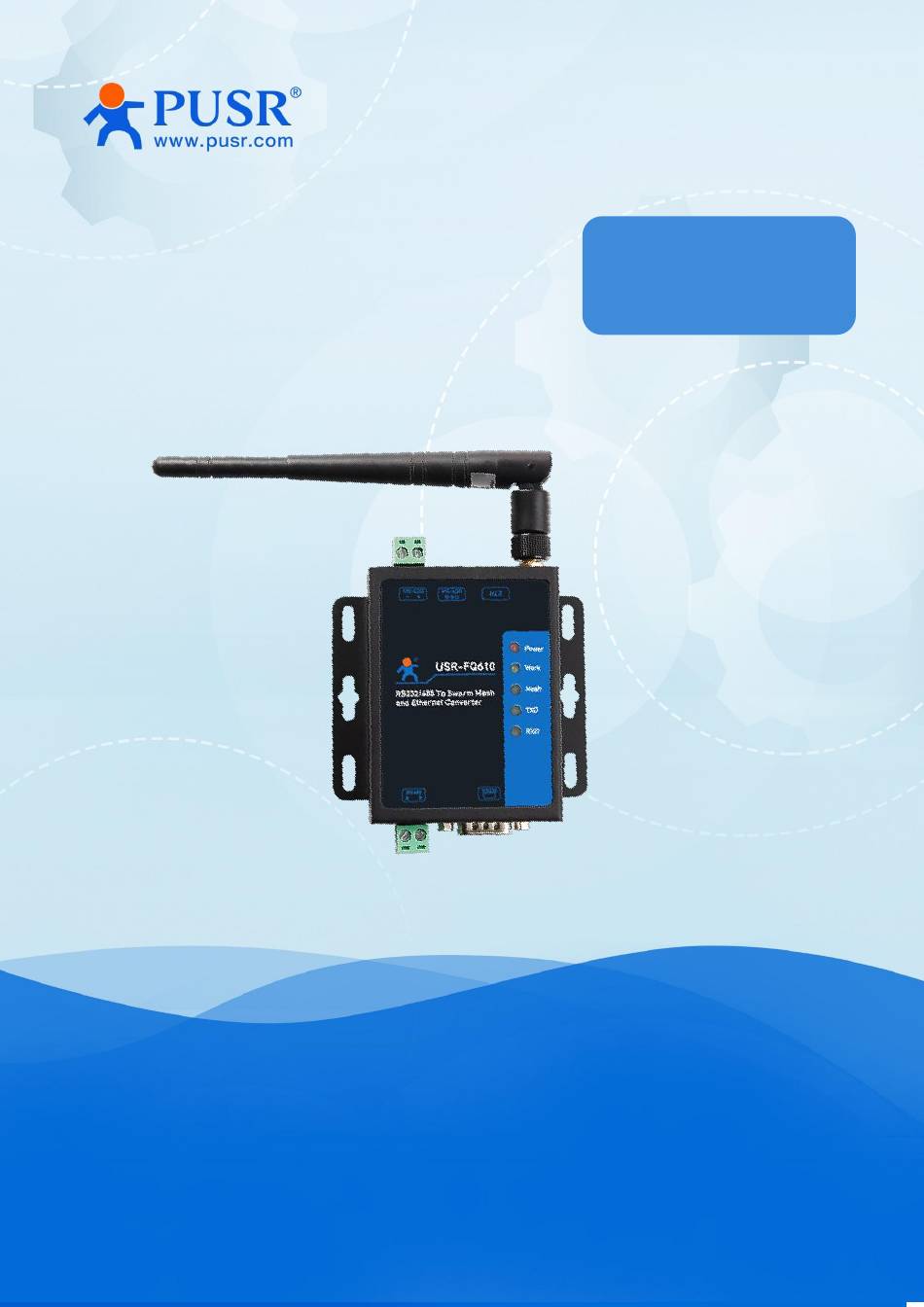

USR-FQ610 User Manual
Swarm Wireless Client
User Manual
USR-FQ610
V2.0
Be Honest & Do Best
Your Trustworthy Smart Industrial IoT Partner
.pusr.com
1
WWW

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the USR-FQ610 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PUSR USR-FQ610

Summary of Contents for PUSR USR-FQ610

  • Page 1 USR-FQ610 User Manual  Swarm Wireless Client User Manual USR-FQ610 V2.0 Be Honest & Do Best Your Trustworthy Smart Industrial IoT Partner .pusr.com...

  • Page 2: Table Of Contents

    USR-FQ610 User Manual Content 1. Introduction ..............................- 4 - 1.1. Features ..............................- 4 - 1.2. Technical Parameters ..........................- 5 - 1.3. Indicator status description ........................- 7 - 1.4. Dimensions ............................- 7 - 2. Function description ............................- 8 - 2.1.
  • Page 3 USR-FQ610 User Manual 6. Disclaimer ..............................- 29 - .pusr.com - 3 -...

  • Page 4: Introduction

    16-level relay in the physical layer, 1S fast networking, and 1024 equipment communication; it can perform the conversion between serial port/network port and swarm wireless network, and can support the function of wireless switch. USR-FQ610 adopts this kind of wireless network.

  • Page 5: Technical Parameters

    Support TCPC\TCPS\UDPC\UDPS network communication, DHCP, STATIC; Support custom key, user total control, device ID, group definition; Support network hop number can be set, relay, FM control, transmit power adjustable; 1.2. Technical Parameters USR-FQ610 Wireless client parameters are as follows: Items Description DC: 9~24V, Power Supply 2-pin terminal block connector, 5.08mm-2P, reverse polarity protection,...
  • Page 6 USR-FQ610 User Manual RJ45, 10/100 Mbps, compliance with IEEE 802.3, supports auto MDI/MDIX, Interface 1.5KV network isolation transformer protection Wireless Frequency 902~928MHz, Bandwidth 125/200/500KHz/1MHz Data speed Up to 740kbps Jump Capacity 1024 1-3 kilometers/jump Covering distance For 16 jumps, up to (1-3)*16 kilometers...

  • Page 7: Indicator Status Description

    USR-FQ610 User Manual Indicators 1 x Power, 1 x Work, 1x Mesh, 1 x TXD, 1 x RXD APPROVALS Regulatory CE/RED*, RoHS*, WEEE*, FCC* 1.3. Indicator status description Table 1. Indicator Status Name Description Long light after power-on WORK Network port broadcast mode: 300ms frequency flash (300ms on,...

  • Page 8: Function Description

    Note: Under the swarm network, the user ID of each USR-FQ610 must not be duplicate, the key frequency and the total number of users must be consistent, and the group ID must be consistent or set to 0. If the group ID is 0, it means that the broadcast domain can be received.

  • Page 9: Operating Steps

    (1)Configure USR-FQ610 to work in transparent mode (2)Configure another USR-FQ610 in the same way, taking care that the user ID is not the same. (3)After saving the parameters, restart the device to take effect, and access the device to view the effect.

  • Page 10: The Communication Tests

    After receiving the data, the USR-FQ610 socket sends it to the swarm network through the swarm module. After receiving the data, the USR-FQ610 in the swarm network sends it to the terminal device at the other end through the socket.
  • Page 11 (1)Configure USR-FQ610 to work in network broadcast mode. Socket mode: UDPS, remote address and port can be ignored. Set the local static IP address. Another USR-FQ610 was set up in the same way. (2)Set the static IP address of the computer, as shown below.

  • Page 12: The Communication Tests

    2.3. Wireless serial sever mode 2.3.1. Function introduction When USR-FQ610 works in wireless serial service mode, the main function is to receive serial data and encapsulate it through TCP/IP protocol, and then send the data to the bee colony network through the bee colony module.After receiving the data, USR-FQ610 at the other end hands it over to TCP/IP protocol for...
  • Page 13 USR-FQ610 User Manual (2)Restart after setting and send data to serial port respectively .pusr.com - 13 -...

  • Page 14: The Communication Tests

    100 bytes/500ms transmission; time slot minimum set to 4, each more relay forwarding FQ610 hop point, time slot on the basis of 4 + 2. As shown below: 2.4.2. Operating steps (1)Configure the USR-FQ610 to work in wireless switch mode, the user ID should be different with each other device. .pusr.com - 14 -...

  • Page 15: The Communication Tests

    USR-FQ610 User Manual (2)Configure PC IP to 192.168.1.10 and 192.168.1.201 respectively. (3)After configuration is completed, power on again and access the equipment to check the effect. (4)Set up socket through test software, and send data 2.4.3. The communication tests 3. Firmware upgrade Before firmware upgrade, the device need be set in network broadcast mode.
  • Page 16 USR-FQ610 User Manual Steps of upgrading firmware: (1)Connect the PC to FQ610 via RS232 cable, open the PC software to read parameters, and ensure that it is in network broadcast mode. (2)Connect the PC to FQ610 via Ethernet cable, and set the IP of PC to the same network segment as FQ610.

  • Page 17: At Command

    USR-FQ610 User Manual 4. AT command 4.1. AT command mode You can switch the device to Command Mode by sending data at a specific timing to the device's serial port. After completing operation in "command mode", return the device to the previous operating mode by sending specific commands.

  • Page 18: Introduction To Instruction

    USR-FQ610 User Manual T2 < current serial port packaging interval time T3 < current serial port packaging interval time T4 = current serial port packaging interval time T5 < 3 s T6 = current serial port packaging interval time The time sequence of switching from transparent mode/HTTP mode to “AT Command mode” : 1.Serial device continuously sends "+++"...

  • Page 19: Command Content

    USR-FQ610 User Manual 4.2.1. Command content AT command format： Table 3. Command format Type Command format Explain <AT+><CMD><CR> Execute the action of the instruction or query the current parameter value <AT+><CMD><CR> Execute the action of the instruction or query the current parameter value <AT+><CMD>=[para-1,para-2,para-3,para-...
  • Page 20 USR-FQ610 User Manual AT+VER Query Equipment Version No. AT+MAC Query current device MAC AT+WKMODE Set DTMB operating mode AT+DTMBID Set DTMB ID information AT+DTMBBASE Setting DTMB Basic Information AT+DTMBRELAY Set DTMB relay information AT+DTMBRF Set DTMB RF message AT+DTMBCACHE Set DTMB cache information...
  • Page 21 USR-FQ610 User Manual Inquire AT+E<CR> <CR><LF>+OK=<status><CR><LF> AT+E=< ON/OFF><CR> <CR><LF>+OK<CR><LF> Parameter ON: Turn on echo, echo commands entered under AT command, OFF: In AT command mode, input commands are not echoed. Explain This command must be in capital letters and take effect after restarting DTU 4.4.1.3.
  • Page 22 USR-FQ610 User Manual 4.4.1.5. AT+CLEAR Name AT+CLEAR Function Factory data reset Inquire AT+CLEAR<CR> <CR><LF>+OK<CR><LF> Parameter Not have Explain This command is executed correctly to restore the factory restart equipment. 4.4.1.6. AT+VER Name AT+VER Function Query device software version number Inquire AT+VER<CR>...
  • Page 23 USR-FQ610 User Manual AT+WKMODE=<mode><CR> <CR><LF>+OK<CR><LF> Parameter mode: working mode 0: Serial broadcast mode 1: Network port broadcast mode 2: Wireless serial service mode 3: Wireless switch mode 4.4.1.9. AT+DTMBID Name AT+DTMBID Function Set DTMB ID information Inquire AT+DTMBID<CR> <CR><LF>+OK=<all>,<userid>,<group><CR><LF> AT+DTMBID=<all>,<userid>,<group><CR>...
  • Page 24 USR-FQ610 User Manual frequency Enable header: enable header Band rate: RF bandwidth, 0, 1M 1, 500K 2, 250K 3, 125K 4.4.1.11. AT+DTMBRELAY Name AT+DTMBRELAY Function Set DTMB relay information Inquire AT+DTMBRELAY<CR> <CR> LF>+OK=Parameter 1>, Parameter 2>, Parameter 3><CR> LF> AT+DTMBRELAY= Parameter 1>, Parameter 2>, Parameter 3>,<CR>...
  • Page 25 USR-FQ610 User Manual 4.4.1.13. AT+DTMBCACHE Name AT+DTMBCACKE Function Set DTMB cache information Inquire AT+DTMBCACKE<CR> <CR><LF>+OK=<cache><CR><LF> AT+DTMBCACKE=<cache><CR> <CR><LF>+OK<CR><LF> Parameter cache: data cache size, values 1-256, actual cache is cache*32, maximum 8192(256*32) bytes 4.4.1.14. AT+DTMBSLOT Name AT+DTMBSLOT Function Set DTMB time slot information Inquire AT+DTMBSLOT<CR>...
  • Page 26 USR-FQ610 User Manual Inquire AT+DTMBPSW<CR> <CR><LF>+OK=<password><CR><LF> AT+DTMBPSW=<password><CR> <CR><LF>+OK<CR><LF> Parameter password: A 32-byte string in hexadecimal notation, such as 000000000006 E023FB906030304 4.4.1.17. AT+WANN AT+WANN Name Function Set/query WAN port parameters AT+WANN<CR> Inquire <CR><LF>+OK=<mode,address,mask,gateway><CR> <LF> AT+WANN=<mode,address,mask,gateway><CR> <CR><LF>+OK<CR><LF> Parameter mode: network IP mode,STATIC: static IP,DHCP: dynamic IP;...
  • Page 27 USR-FQ610 User Manual Inquire AT+UART<CR> <CR><LF>+OK=<baudrate,data_bits,stop_bit,parity,f lowctrl ><CR><LF> AT+UARTN=<baudrate,data_bits,stop_bit,parity,flowctrl ><CR> <CR><LF>+OK<CR><LF> Parameter baudrate: Baud rate: 600-230400 Default: 230400 data_bits: 7, 8; default: 8 stop_bits: 1, 2; default: 1 parity: NONE EVEN MARK SPACE Default:NONE Flowctrl: Flow control, NFC: no flow control FCR: with software flow control, default: NFC 4.4.1.20.

  • Page 28: Contact Us

    USR-FQ610 User Manual ip_addr: Local IP/Destination IP or Domain Name (64 characters) According to C/S mode differentiation, when the module is set to "Client", IP address is remote server IP; when it is "Server", it islocal server; default: 192.168.1.23 Port:protocol port, decimal number, 0~65535 When port=0 is a random port number.
  • Page 29 USR-FQ610 User Manual Address : Floor 12 and 13, CEIBS Alumni Industrial Building, No. 3 Road of Maolingshan, Lixia District, Jinan, Shandong, China Official website: https://www.pusr.com Official shop: https://shop.usriot.com Technical support: http://h.usriot.com/ Email : sales@usriot.com Tel : +86-531-88826739 Fax : +86-531-88826739-808 6.
  • Page 30 USR-FQ610 User Manual Official Website: www.pusr.com shop.usriot.com Official Shop: Technical Support: h.usriot.com Inquiry Email: inquiry@usriot.com Skype & WhatsApp: +86 13405313834 关注有人微信公众号 登录商城 Product Catalog Facebook Youtube Click to view more: & & .pusr.com...
