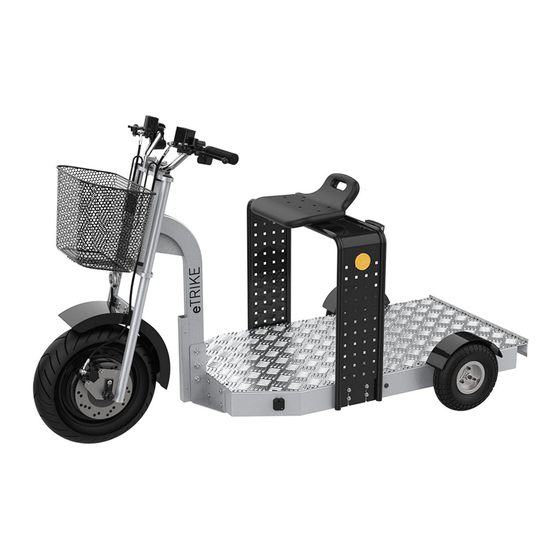

Summary of Contents for Fathom eTRIKE Platform Scooter PLS 135
- Page 1 eTRIKE Platform Scooter USER’S GUIDE...
-
Page 2: Table Of Contents
CONTENT: Introductory notes ...................................... 2 Scope of delivery ......................................3 Intended use ......................................... 3 Safety instructions ...................................... 3 Safety in traffic ......................................4 Load capacity ........................................ 4 Damaged or worn parts .................................... 4 Checking scope of delivered goods ..............................4 Adjusting the scooter .................................... -
Page 3: Scope Of Delivery
SCOPE OF DELIVERY eTRIKE Platform Scooter (with example packaging) • Operating instructions in the form of a QR code displayed on the scooter • Charger (accessory) • Batteries (fixed installation) • INTENDED USE The eTRIKE Platform Scooter is designed for normal use on a flat, solid surface. Follow the safety instructions described in these operating instructions exactly. -
Page 4: Safety In Traffic
SAFETY IN TRAFFIC If you are under the influence of substances that may affect your ability to drive, you must not ride an • eTRIKE Platform Scooter. To drive an eTRIKE Platform Scooter, you must meet the physical requirements necessary to drive vehicles. •... -
Page 5: Operation
OPERATION To be able to drive the eTRIKE Platform Scooter, you must first fully charge the battery. We recommend that the first driving experience be gained at low speed, with and without loaded containers, in a real-life operating environment. The selected speed should be appropriate and enable the vehicle to be stopped in good time in hazardous situations. -
Page 6: Parking Brake And Parking Position
PARKING BRAKE AND PARKING POSITION It is necessary to check the eTRIKE Platform Scooter's hydraulic handbrake for proper operation before beginning each journey. The park position is engaged and released by actuating the catch. HANDLEBAR BASKET The eTRIKE Platform Scooter is equipped with a handlebar basket. Hang the handlebar basket on the handlebar. Ensure that the permitted basket load is not exceeded (maximum 4 kg). -
Page 7: Repair And Maintenance Instructions
necessary to service the disk brake. You can send the eTRIKE Platform Scooter to Fath GmbH for this purpose. Customer maintenance is not envisaged, because errors can be made relating to oil and settings. REPAIR AND MAINTENANCE INSTRUCTIONS It is recommended that the eTRIKE Platform Scooter be subjected to an annual accident prevention inspection by FATH GmbH. -
Page 8: Model Designation/Chassis Number (Vin)
MODEL DESIGNATION/CHASSIS NUMBER (VIN) TECHNICAL DATA MOTOR: RANGE: 48 volts 1000 Watt up to 40 km depending on load, terrain and driving • • max. 195 rpm style • Rated current: 20 A • WEIGHT: Rated torque: 19.7 Nm • Empty weight PLS 135: 95 kg •... - Page 9 Platform Scooter PLS 135 item no. 1200000144 eTRIKE Platform Scooter PLS 175 item no. 1200000145 Technical data subject to change without notice.
-
Page 10: Ec Declration Of Conformity According To Machinery Directive 2006/42/Ec, Annex Ii 1.A
Platform Scooter Product description Types: eTRIKE Platform Scooter PLS 135 / item no. 1200000144 eTRIKE Platform Scooter PLS 175 / item no. 1200000145 Serial Number: complies with the provisions of the above-mentioned Directive – including its amendments in force at the date of the declaration.
