Summary of Contents for Everdure KILN EKILN1GEU

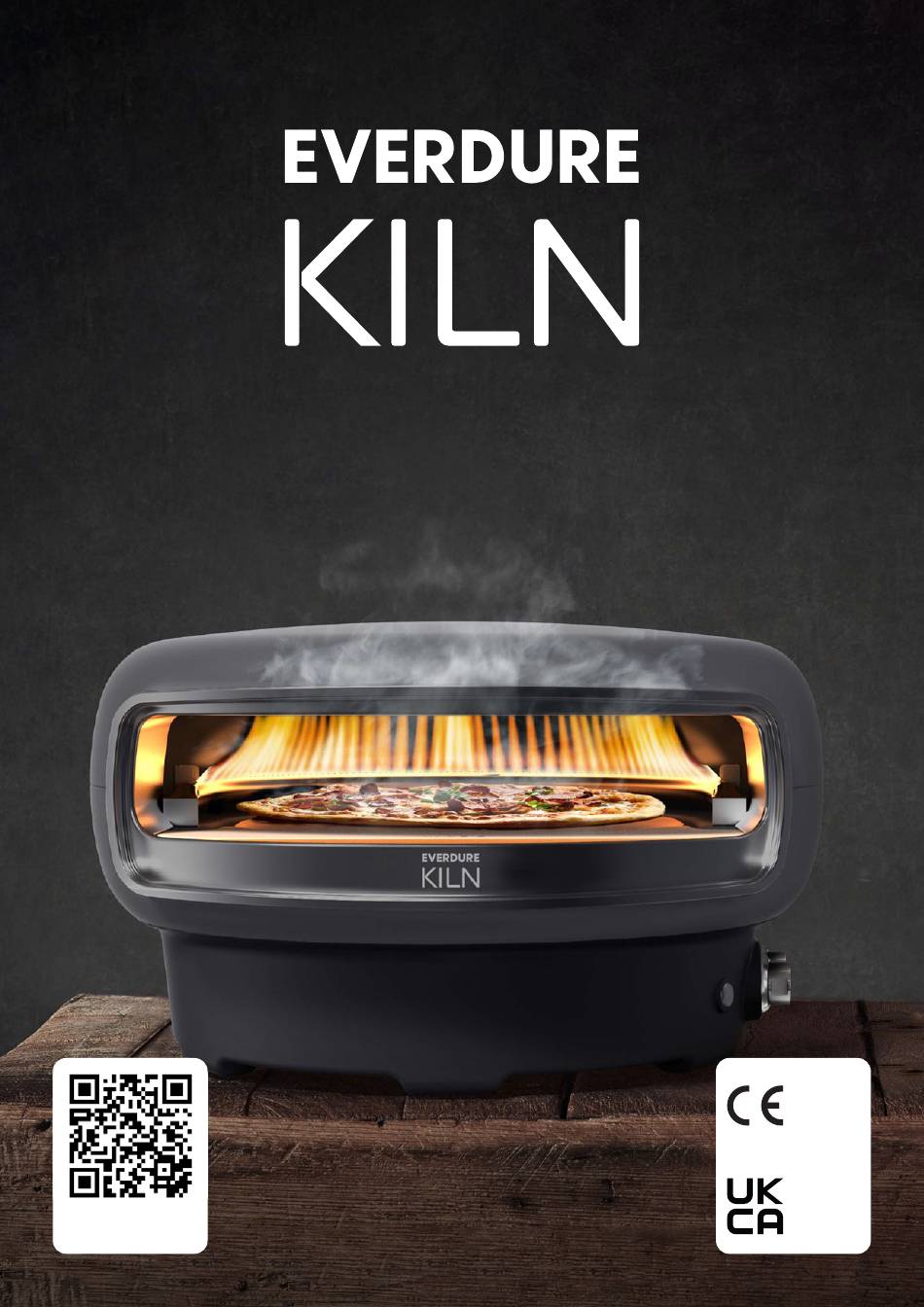

- Page 1 INSTRUCTION MANUAL 8504-23 2531-23 Scan for further support...
- Page 2 Cooking Hints & Tips KILN R Series - 2 Burner Care & Maintenance Troubleshooting Specifications Warranty Note; In this instruction manual, the Everdure Kiln will be referred to as an appliance. 1 BURNER 1 BURNER 1 BURNER 2 BURNER 2 BURNER...
-
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS: DO NOT operate this appliance before reading the instruction booklet. DO NOT place articles on or against this appliance. DO NOT store chemical or flammable materials or spray aerosols near this appliance. DO NOT operate this appliance indoors. •... -
Page 4: Appliance Details
WHEN USING AND COOKING IN YOUR EVERDURE KILN OVEN Do NOT leave the main burner on HIGH setting for over 30 minutes after ignition. Please refer to COOKING HINTS and TIPS KILN S/R SERIES page in the instruction manual on preheating, cooking and after cooking instructions. - Page 5 OUTDOOR INSTALLATION GUIDE: This appliance shall only be used in an above ground open-air situation with natural ventilation, without stagnant areas, where gas leakage and products of combustion are rapidly dispersed by wind and natural convection. This appliance must not be used indoors. Do not use your appliance in garages, porches, sheds, or other enclosed areas.
-
Page 6: Battery Installation
BATTERY INSTALLATION Unscrew pulse igniter cap fit one new AA battery note the (+) and (–) marking refit the cap. 2. EKILN R Series, Remove the battery compartment cover. Load a set of four new “AA” type batteries so that their plus (+) and minus (–) ends are facing as indicated by the markings. - Page 7 OPERATING INSTRUCTIONS: Once your regulator is connected, open the gas from your gas cylinder. First-time use It is highly recommended prior to cooking on your appliance for the first time that you conduct a burn-off. Turn the main burner on high for 30 minutes. Then turn off the main burner and let the oven cool down naturally. Once the appliance has cooled, use a paper towel to wipe the inside of the appliance to remove any soot from the burn-off.
- Page 8 COOKING HINTS AND TIPS KILN S SERIES - 1 BURNER Preheating Ignite the appliance and leave it on high for approx. 15 to 20min. This will give you enough time to heat the stone to your desired cooking temperature. Cooking When the appliance has reached your desired cooking temperature, turn the knob to halfway.
- Page 9 COOKING HINTS AND TIPS KILN R SERIES - 2 BURNER Preheating Press the turntable switch. Ignite the main burner first, then light the boost burner. It is recommended to leave the main burner on high for a minimum of 15 minutes to allow your oven and stone to heat up. To determine if the stone has reached the desired temperature, use an infrared gun.
-
Page 10: Care And Maintenance
CORDIERITE PIZZA STONE CARE • This pizza stone is designed to be used in the Everdure Kiln only. Only use water to clean the pizza stone. DO NOT submerge in water, using soap will leave residue in the pores of •... -
Page 11: Troubleshooting
TROUBLESHOOTING: Burner will not ignite when using the igniter: Cylinder valve is not on Turn cylinder valve on Cylinder is empty Replace with a full cylinder Igniter button is not working Check battery Igniter is not sparking Contact the Service Centre Burner flame is erratic: Flame is burning inside burner Turn off burner, allow to cool and re-ignite... -
Page 12: Specifications
SPECIFICATIONS: PRODUCT 1 BURNER 2 BURNER Dimensions (mm) 740 x 660 x 380 (mm) 740 x 660 x 380 (mm) Weight NW / GW 25.8 / 31.5 (kg) 29.2 / 35.0 (kg) Turntable RPM using the adapter supplied 2.5 rpm Power supply KILN R Series - 2 Burner MODEL SPECIFICATION... - Page 13 KILN S SERIES - EUR - 1 BURNER NO. PART NAME NO. PART NAME Upper lid 15 Base welding bracket Lower outer housing 16 1B Valve assembly Aluminium fascia 17 Bezel of main burner Inner firebox 18 Knob Insulation of inner firebox 19 Gas inlet connector SS main burner 20 Corrugated pipe Ignition pin I...
-
Page 14: Warranty
WARRANTY Refer to your local dealer for more information. - Page 15 NOTES...
- Page 16 IM REF: EKILN EU 12/06/2023...
