Summary of Contents for GPOAS B09N6DGVWS

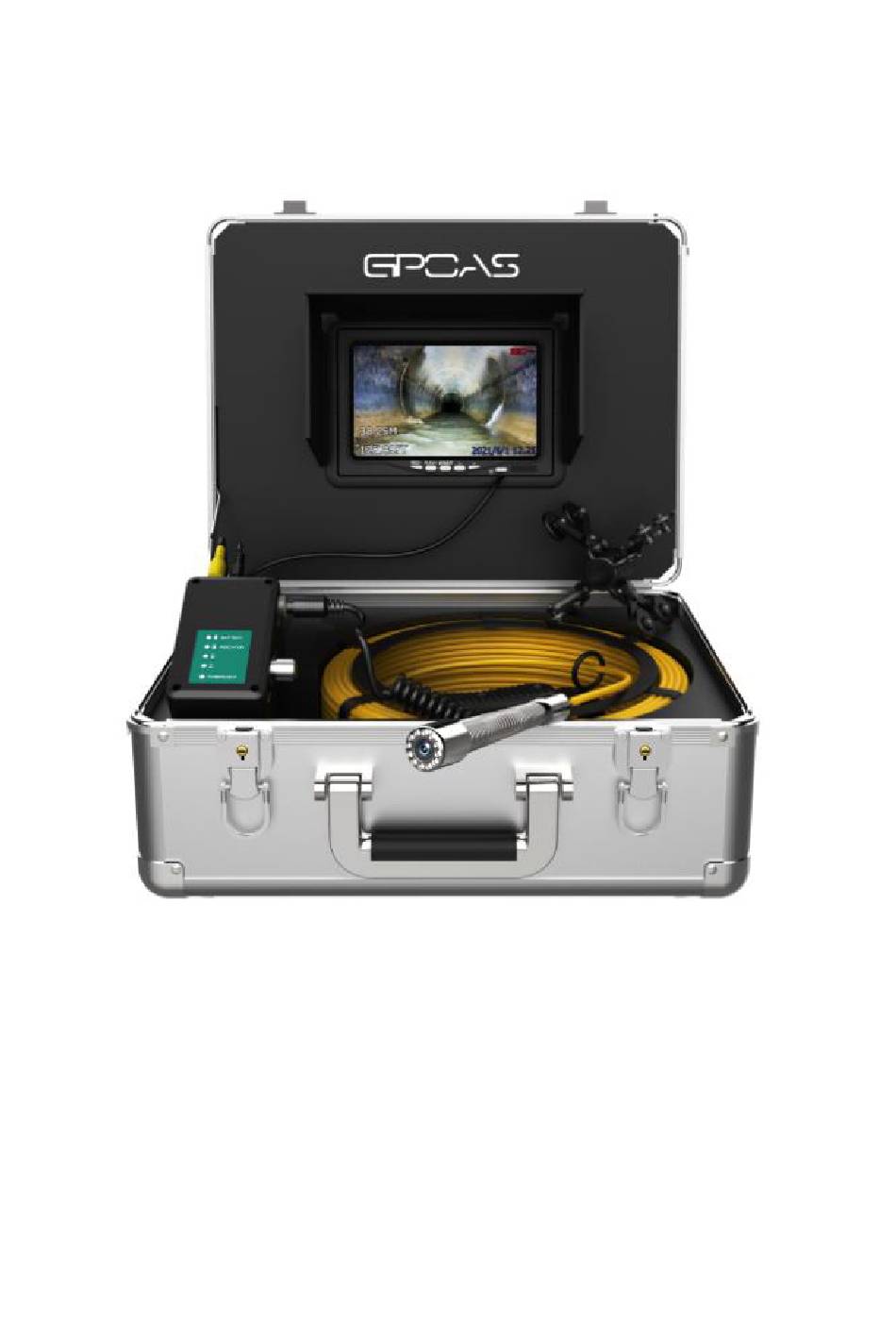

- Page 1 GPOAS Pipe Sewer Pipeline Inspection Camera User Manual ------------------------------------------------------------------------------------------------------------ Please contact us at the first time if you got any issue with the product...
-
Page 2: Table Of Contents
Catalog Note……………………………………………….…….....1 Range of product use……………………......2 Product specification………………………………....3 Product interface details ……………..…………………..4 Accessories ………………………………..…….....5 System install ……………………..…………......6 Detailed operation ...............7 Recharge ................8 Failure and diagnosis............9 After service................10... -
Page 3: Range Of Product Use
1：Note 1：Please read this user manual carefully before using this product . 2：Do not throwing or pressure with strength . 3：Do not dismantling the machine without permission. 4：Please copy your information before connection the TF card . 5：Do not suddenly cut off the power during recording and playing. This may damage the product and video files. -
Page 4: Product Interface Details
---Display--- Size ：7inch IPS Camera /monitor picture :color Monitor input voltage :12V DC SD card :max support 64GB,factory standard 16GB . Display resolution：7 inch ,16：9, 1024*600 Menu ：English optional . Display port :power input /Video Display video format: Year,Month,Date,Time and Seconds Video Format :MP4 Photo format :JPG Display operate :button . - Page 5 (2) Camera...
- Page 6 (3) SD card slot 1: Press the buttons on both sides of the display at the same time to pop the display out. 2: There is an SD card slot on the left side of the screen. 5.Accessories list 1：Aluminum box *1 2：Charger *1 3：camera*1 4: Cable wheel *1 5：Battery*1 6：User manual *1 7：camera protective cover*1...
-
Page 7: System Install
6：System install 1.Connect the charger to the battery , fully charged need about 4-5 hours. Charging voltage is DC12.6V, with power battery display on battery. 2.Connect the device according to the wiring diagram,then turn on and using . - Page 8 3.Install the protection cover and the pulley...
- Page 9 4.How to use the cable...
-
Page 10: Detailed Operation
7：Detailed operation DVR display operation: 1. Turn on Connect the connectors, turn on the switch of the power control box and monitor 2. Menu setting: needs to exit the REC mode Menu setting: press MENU/EXIT key to enter, press <> to select, REC/- to confirm, pres s MENU/EXIT to exit . -
Page 11: Failure And Diagnosis
2：Is the DC plug inserted good ? 10.After service GPOAS always put the customer's actual experience in the first place, so if you encounter any problem during the use of the product, please contact us on Amazon as soon as possible!！！...
