PLASH BT-60W-RGBW User Manual

User's Manual for Plashlights RGBW Bluetooth™ LED Controller
READ THESE INSTRUCTIONS BEFORE INSTALLATION.
SAFETY
TIPS:
1. Non-compliance of these instructions may cause damage to the lights
and/or bodily injury.
2. The installation must be carried out by quali ed personnel.
3. Regularly inspect the lights, power wire, connections, and any other
accessories. If any part is damaged, the product should not be installed.
4. Disconnect the power supply before installation and service.
5. Keep this instruction manual handy for future use.
6. Do not disassemble the controller.
7. Prohibit the use of this product in excess of the operating voltage
(12V DC/ 24V DC) +-5%. The correct voltage is on the package.
8. Always use the proper fuse size (see wiring diagram).
A. INSTALLATION INSTRUCTIONS
1. Mount the controller in a central location using the tabs on the side. Mount away from heat and be aware of metal as it will block
the signal.
2. INPUT: Connect positive (Red +) wire to the positive output on a 12V~24V power supply through a fuse to a switch (see diagram below).
Connect negative (Black -) wire to negative battery terminal.
3. OUTPUT: Connect the Black (V+) wire from the controller to the black (V+) from the light. Connect remaining negative wires from
light to controller output. Connect Red to R, Green to G, Blue to B, and if using RGBW lights then connect the White to W.
NOTE: If using RGB lights, Instead of RGBW, the white wire (-) will not be used. Simply cut it o .
NOTE: Marine grade heat shrink butt connectors, or solder with adhesive heat shrink power source are recommended.
NOTE: The usage of a properly rated switch is highly recommended as opposed to using the App to turn on/o the lights. The switch
needs to be rated for at least 15A.
NOTE: Occasionally, some other RGB light manufacturers us a Yellow wire for Green (G) and a White wire for a Blue (B).
Connecting too many lights (over-current) may cause permanent damage to the controller!
B. PAIR CONTROLLER TO DEVICE
1. Download the Plashlights APP in the APP store or Scan the QR code
to download App. (IOS 6 or Android 4.3 and above)
2. Pair Bluetooth™: Power on the controller within 2 minutes. open the
PlashLights APP on your device. The APP will automatically connect to
the controller. Go to zone selector, create zone, name is optionall, add
device to zone, select zone, lights can be conrolled now.

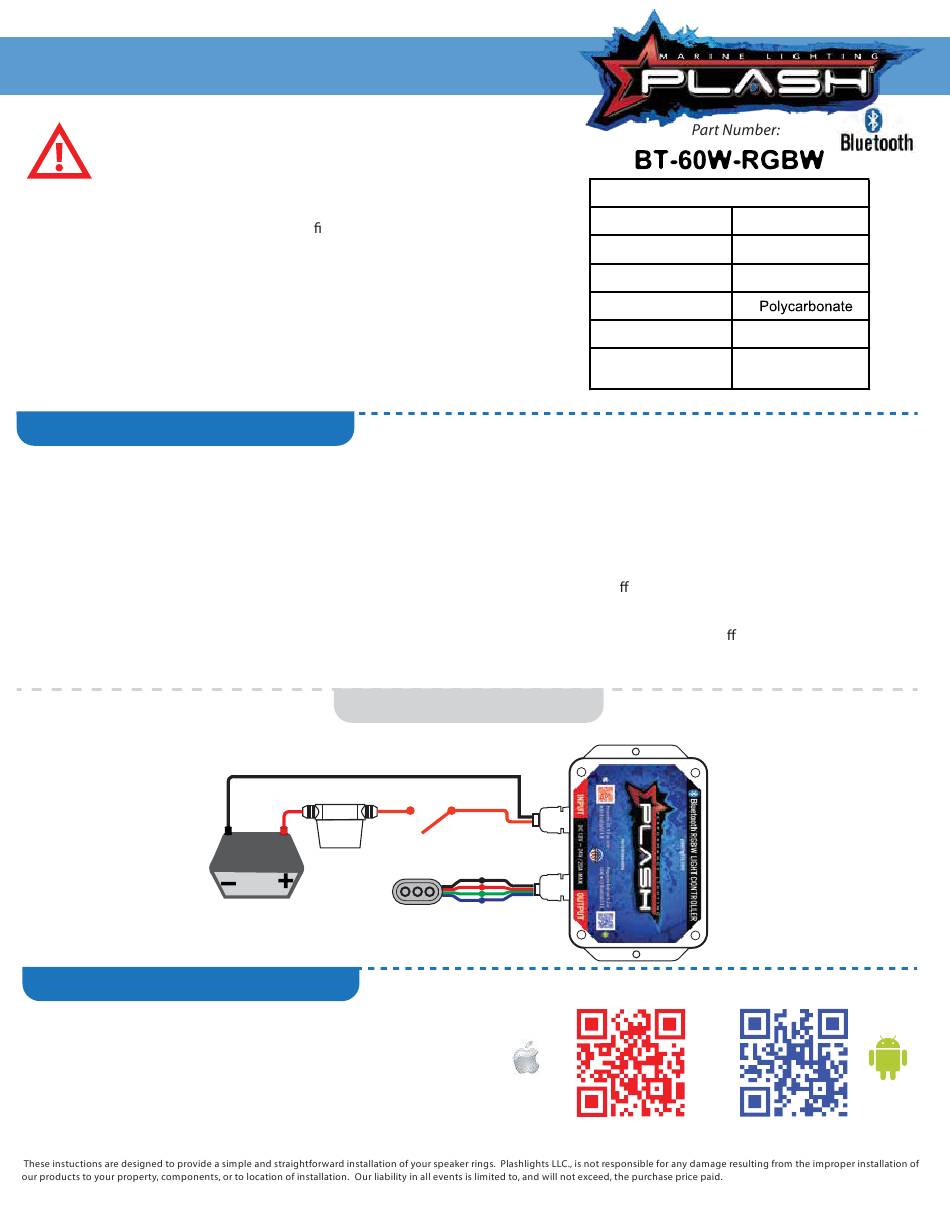

WIRING DIAGRAM
Black(-)
Switch
Red(+)
Fuse
15A
MAX
Battery
Lights
***DISCLAIMER***
For Technical Questions Please Call: 1-855-661-1002 Ext. 3
Mon-Fri 10am-5pm Central Time
Input Voltage
Waterproof Rating
Material
Bluetooth Transmition
Switch
Bluetooth Control ox
B
12V DC or 24V DC
Output Max: 200 W
IP67
Size 4.96"*3.23"*1.10"
900 FT MAX
Distance
