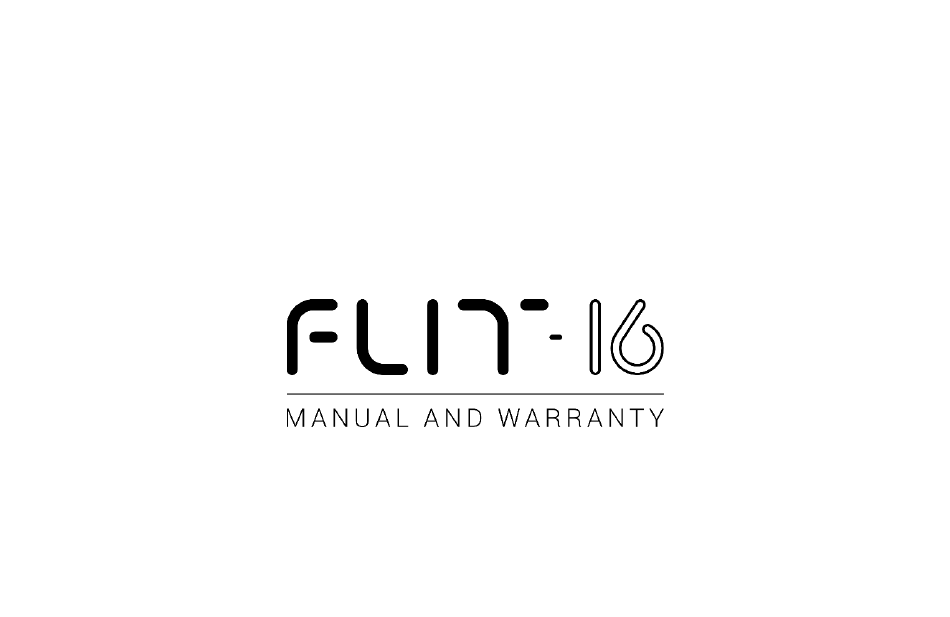

FLIT -16 Manual And Warranty

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FLIT-16 and is the answer not in the manual?

Questions and answers

Summary of Contents for FLIT FLIT-16

  • Page 2: Table Of Contents

    Before the first ride ........................................12 Before every ride ........................................17 Other checks (every so often) ....................................20 Safe riding ..........................................21 Tips for riding the FLIT-16 ......................................22 Transporting the FLIT-16 ......................................24 Servicing ..........................................25 Torque Settings ........................................30 Warranty...........................................

  • Page 3: Introduction

    Introduction Dear cu stomer, Thank you for choosing the FLIT-16! We worked very hard to source high quality components and build frames which will last. The result is a compact folding e-bike which doesn’t compromise on ride quality. General sa fe ty notes...

  • Page 4: General Information

    General information T he FLIT -16 Page 3 of 39...
  • Page 5 Additionally, a charger with a mains adapter is provided in the box with the bike. If any parts are missing, please contact us via the support section of the website, or by emailing support@flit.bike. Meaning of icons used in the manual...

  • Page 6: Intended Use

    For city riding, not stunts The FLIT-16 is intended to be used only on paved roads with both wheels on the ground. It is not intended to be used for stunts, wheelies, hops, jumps, racing, or similar. Flit (Cambridge) Limited and our suppliers are not liable for any consequential damage from improper use.

  • Page 7: Local Regulations

    It’s important to note that laws, rules, and guidelines around electric bicycles and their use may differ from country to country. If you are not using your FLIT-16 in the UK, it’s important to find out what laws apply in your location before you start riding your electric bicycle.

  • Page 8: Battery Storage And Use

    Battery storage and use A basic set of instructions for how to use the battery is summarised below. Please consult the separate battery instructions booklet for more detail on how to store and use the battery. The labels above are: LED indicator.
  • Page 9 Removing and inserting th e battery To remove the battery, first undo the seat post quick release and take the seat post all the way out of the frame. The battery can then be removed by gripping the black plastic light holder and pulling it out. To re-insert the battery, first remove the seat post from the bike.

  • Page 10: Battery And Electrical System Care

    Battery capacity is measured in Watt-Hours. • The FLIT-16 comes with a 230 Wh battery that should have a suitable capacity to last for 20 - 30 miles for most riders on most journeys. • The battery can be locked in the bike by fixing the seat post in place using the lock on the seat post quick release.
  • Page 11 Cleaning and Handling • Do not use any pressure washers/jet washers, solvents, aerosols, or degreasers to clean the battery or e-bike. This will cause harm to the mechanical and electrical components and will void the warranty. • Likewise, submerging the battery or e-bike in water will also damage the parts and void the warranty. •...

  • Page 12: Display And Control Operation

    We recommend starting off on no more than assistance level 2 or 3 whilst getting used to the FLIT-16. See section 1.8 Properties in the DP C230.CAN booklet to change from kilometres (km) and kilometres per hour (km/h) to miles (m) and miles per hour (mph).

  • Page 13: Before The First Ride

    Read th e manuals The FLIT-16 comes with additional manuals for the battery, display and folding of the e-bike. Read them carefully before riding the e-bike for the first time or before doing maintenance. If anything is unclear please contact us via the support section of the website, or by emailing support@flit.bike.
  • Page 14 Brakes • Test your brakes by applying both brake levers one at a time and rocking the bike backwards and forwards as shown in the image opposite. The bike should not roll and the brake pads should stop the wheels moving. •...
  • Page 15 How the bike fi ts A good riding position is a comfortable one. An e-bike which is badly adjusted may lead to joint or back pain, and make the e-bike more difficult to control. • A good rule of thumb is that when your foot 01 is on the pedal 02, directly above the pedal axle 03, and the pedal is at the bottom of its stroke, your leg should be almost straight, with a bend at the knee.
  • Page 16 Be careful not to adjust the seat post so that the insertion depth is less than the minimum insertion depth. This can result in damage or fracture to the frame and may also lead to injury. • If you are still not comfortable with the seat post at minimum insertion depth, you may need to order the FLIT-16 extended seat post. •...
  • Page 17 Inside leg measurements The FLIT-16 is suitable for the following inside leg lengths in cm. Inside leg is measured from the crotch, down the inside of the leg, to the bottom of your foot when it is flat on the ground.

  • Page 18: Before Every Ride

    Before every ride Electrical sy stem • Check the battery is connected and the electrical system is working. (See pages 7 – 10.) The display will alert you about any errors or warnings, and these should be resolved before riding. •...
  • Page 19 DO NOT RIDE THE FLIT-16 IF THE LOWER OR Ensure that the two clamps have no cracks or fractures in them! The most critical hinge is the fork (lower) hinge as shown UPPER CLAMPS FRACTURED below in the picture on the left. Any cracks or fractures may...
  • Page 20 With the front wheel wedged between Raise the bike up around 10 cm (~ 4 To make sure that the seat post and your legs, twist the handlebars to make in) and drop it down. If anything shakes saddle are secured, try to turn the saddle by sure that they are firmly secured.

  • Page 21: Other Checks (Every So Often)

    Other checks (every so often) Check the welds • Check the welds on the frame, with particular attention to the hinge welds. Your e-bike will experience stress during riding. Any change of colouring, cracks, or scratches on the frame in highly stressed areas may indicate it is damaged. •...

  • Page 22: Safe Riding

    Safe riding Pay attention to th e road • Keep an eye out for potholes, car doors opening and children playing. • Be mindful of other vehicles’ blind spots. Think about how visible you are. • Stay alert when riding. Don’t wear earphones/headphones which affect your ability to hear vehicles or other hazards.

  • Page 23: Tips For Riding The Flit-16

    Selecting the cor rec t assistance le vel The FLIT-16 is a single-speed electric bike, which means that you don’t have multiple gears to choose from. Instead, the electrical system will help you start moving if you are on a hill. You can adjust the assistance up and down to suit your riding conditions.
  • Page 24 Riding without power assi stanc e The FLIT-16 is designed to work as an ordinary bicycle when the level of assistance is set to zero. You can keep the display on to keep an eye on your speed, but turn the assistance off if you like, by pressing the minus button when the bike is set on assistance level 1. You can also extend the range of the e-bike by turning down the assistance.

  • Page 25: Transporting The Flit-16

    • The FLIT-16 is also small enough when folded down that it should fit in the boot of most cars. Be careful not to damage the chain tensioner. If you need to lay it down, lay it down on the non-drive side (with the chain facing up).

  • Page 26: Servicing

    & 'horseshoes', motor, rims, pedals, seat post, suspension, torque sensor bottom bracket and wheels, use FLIT-16 approved replacement parts. They are tested to ensure they work safely with your e-bike. If you are unsure about which parts to use or need to order more parts, you can contact us via the support section on our website, or email support@flit.bike.
  • Page 27 Brak es Riding with poorly adjusted or worn-out brakes is dangerous and can result in injury or even death. Regularly check the brake pads and rims for signs of wear. There are wear indicators on the rims as well as on the brake pads. When brake pads are worn down, their notches will appear shallow or even smoothed down completely.
  • Page 28 Drivetrain The chain has been designed not to fall off but it is useful to remember how to set it up properly in case it does. Excessive wear and chain stretch mean the chain will damage the teeth of the gears on the drive train, requiring an expensive replacement, so check chain wear regularly with a chain wear tool! The chain should be replaced every 2,000 to 3,000 miles (or 3,200 km to 4,800 km).
  • Page 29 mechanic.
  • Page 30 Simple troubleshooting continued… Problem Check Action by rider Charge fully. Reduced battery Is the battery fully charged? The battery may be ageing with use; if you have had the battery for several years, performance. considering purchasing a new one and sending the old one for recycling. Check the light on the Charger not giving charger remains red during...

  • Page 31: Torque Settings

    Torque Settings Steering and handlebars Tool kgf.cm lbf.in Handblear grip bolt 3 mm Allen key Hinge bolt male 4 mm Allen key Hinge bolt female 4 mm Allen key Hinge bolt cap 5 mm Allen key Bolts for hinge stainless steel protector plate "horseshoe" 2 mm Allen Key Head tube bolt 4 mm Allen key...
  • Page 32 Brakes Tool kgf.cm lbf.in Front v-brake mounts to frame 9 mm (across flats) tool Front brake pad screws 5 mm Allen key Front brake mount bolts 5 mm Allen key Rear brake caliper to frame 5 mm Allen key Rear brake pad screws 4 mm Allen key Brake levers to handlebar 5 mm Allen key...

  • Page 33: Warranty

    FLIT-16 WARRANTY TERMS AND CONDITIONS To keep your FLIT-16 in good condition and protect your warranty, we strongly recommend that you have it serviced only as recommended in the manual and any supporting documentation that FLIT sends to you. If you do need to claim under these warranty terms please contact us to arrange the repair or replacement of the relevant parts.
  • Page 34 This warranty applies only to the original retail purchaser and is not transferable. The warranty described is only valid within the country which the e-bike was purchased in, or if bought online direct from FLIT (CAMBRIDGE) LIMITED, the country the purchaser set as the destination country.
  • Page 35 14. The warranty does not cover bikes used on a commercial basis, e.g. by couriers or despatch riders, etc. 15. The warranty does not cover defects which have not been reported to FLIT (CAMBRIDGE) LIMITED within ten days of discovery of the defect.
  • Page 36 *Misuse includes any use not in accordance with the recommendations made in the owner’s manual, and any use contrary to the warnings given in that same handbook. In addition, misuse includes, but is not limited to, any use of the e-bike which does not constitute normal road use, as your FLIT- 16 is intended for use on roads and well-made paths.

  • Page 37: Declaration Of Conformity

    Declaration of conformity T he Manufacturer : FLIT (CAMBRIDGE) LIMITED, Future Business Centre Kings Hedges Road Cambridge CB4 2HY Hereb y confirms tha t the following product: Product Descriptio n: Foldable Electric Bicycle Model Desig nation: FLIT-16 Year of Manufactu re:...
  • Page 38 Page 37 of 39...
  • Page 39 Page 38 of 39...
  • Page 40 Page 39 of 39...
