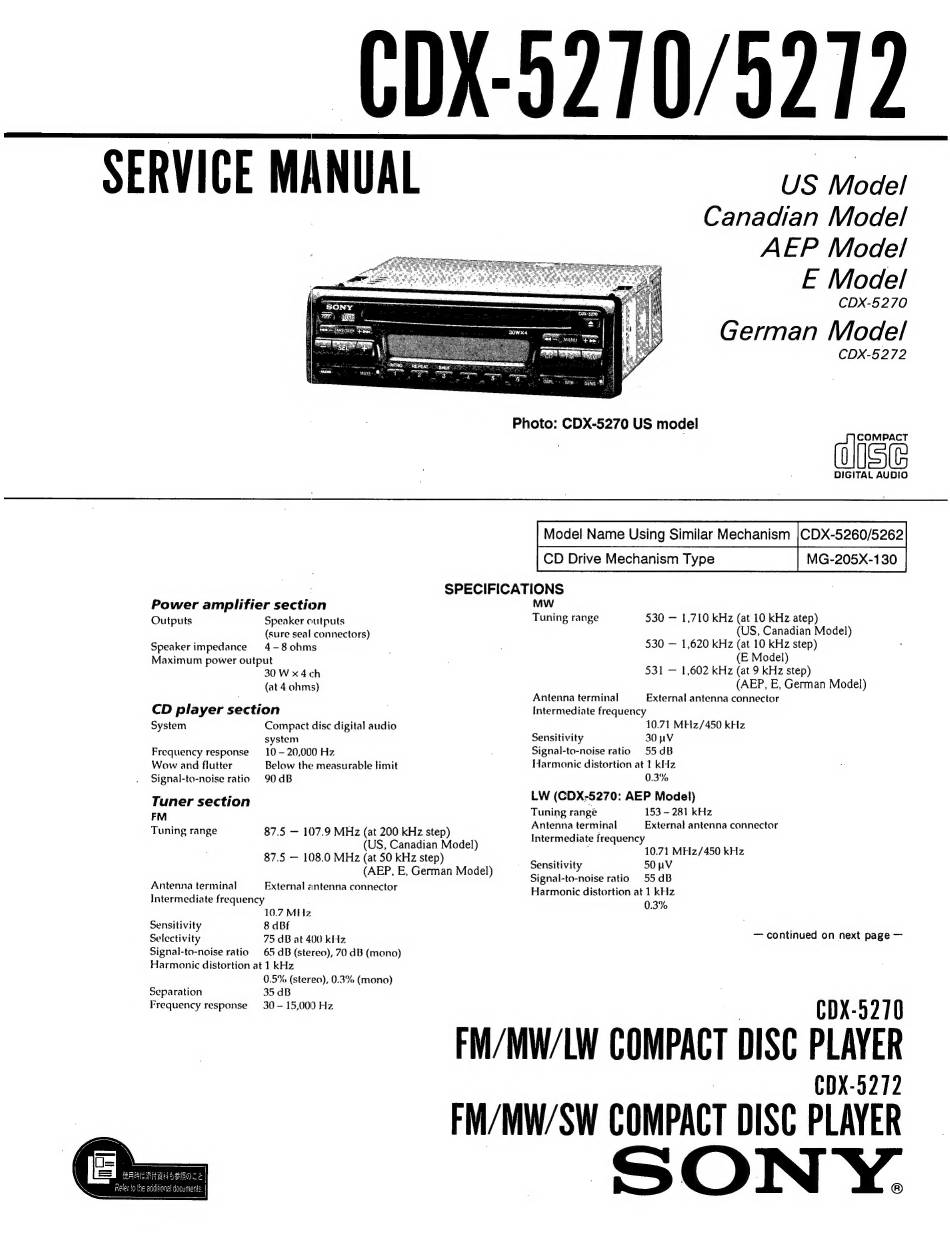

ERVICE MANUA US Model
Canadian Model
AEP Model!
E Model
CDX-5270
German Model
CDX-5272
Photo: CDX-5270 US model
COMPACT
DIGITAL AUDIO
Model Name Using Similar Mechanism |CDX-5260/5262
CD Drive Mechanism Type MG-205X-130
SPECIFICATIONS
Power amplifier section MW
Outputs Speaker outputs Tuning range 530 — 1,710 kHz (at 10 kHz atep)
(sure seal connectors) (US, Canadian Model)
Speaker impedance 4-8 ohms 530 — 1,620 kHz (at 10 kHz step)
Maximum power output (E Model)
30Wx4ch 531 — 1,602 kHz (at 9 kHz step)
(at 4 ohms) (AEP, E, German Model)
Antenna terminal External antenna connector
CD player section Intermediate frequency
System Compact disc digital audio 10.71 MHz/450 kHz
system Sensitivity 30 nV
Frequency response 10 - 20,000 Hz Signal-to-noise ratio 55 dB
Wow and flutter Below the measurable limit Harmonic distortion at 1 kHz
Signal-to-noise ratio 90 dB 0.3%
Tuner section LW (CDX-5270: AEP Model)
FM Tuning rangé 153 - 281 kHz
: Antenna terminal External antenna connector
Tuning range 87.5 — 107.9 MHz (at 200 kHz step) intermediate treqdency
(US, Canadian Model) 10.71 MHz/450 kHz
87.5 — 108.0 MHz (at 50 kHz step) Pree
Sensitivity 50 pV
(AEP, E, German Model) ; ' :
: : Signal-to-noise ratio 55 dB
Antenna terminal External antenna connector Harrionic distortion-at.1 kHz
Intermediate frequency 9
0.3%
10.7 ME iz
Sensitivity
8 dBf
,
Selectivity 75 dB at 400 kHz — continued on next page —
Signal-to-noise ratio 65 dB (stereo), 70 dB (mono)
Harmonic distortion at 1 kHz
0.5% (stereo), 0.3% (mono)
Separation 35 dB
FM/MW/LW COMPACT DISC PLAYER
CDX-5272
FM/MW/SW COMPACT DISC PLAYER
