THANK YOU FOR PURCHASING ERICA
SYNTHS BLACK SERIES MODULE!
Erica Black Series include high-end,
unique functionality and superior
quality modules. Only the best, highest
quality components are used, all inputs
and outputs are protected against
undesired overvoltage. Erica Black
series consist of range of modules that
are needed to put together entire synth.
Enjoy!
Erica Black Voltage Controlled
Envelope Generator brings you
ultimate control over envelopes in
your modular synth. It's looping
lin/log ADSR envelope generator with
CV control over each stage. Together
with the VC EG Expander you get really
advanced modulation source.
FEATURES:
Retriggerable ADSR envelope
generator
CV control over each stage
CV level attenuators
Looping function
Lin/log envelope selection shape
Skiff-friendly design
TECHNICAL SPECIFICATIONS:
Envelope level ............................... 0 - 10V
Attack time .............................................12"
Decay time ............................................12"
Release time ..........................................12"
CV level (full sweep) ................. -5V - +5V
Panel width ........................................10HP
Module depth ................................30mm
Power consumption ..................................
......................... 30mA@+12V, 15mA@-12V
Power consumption w. Expander ...........
........................ 40mA@+12V, 20mA@-12V

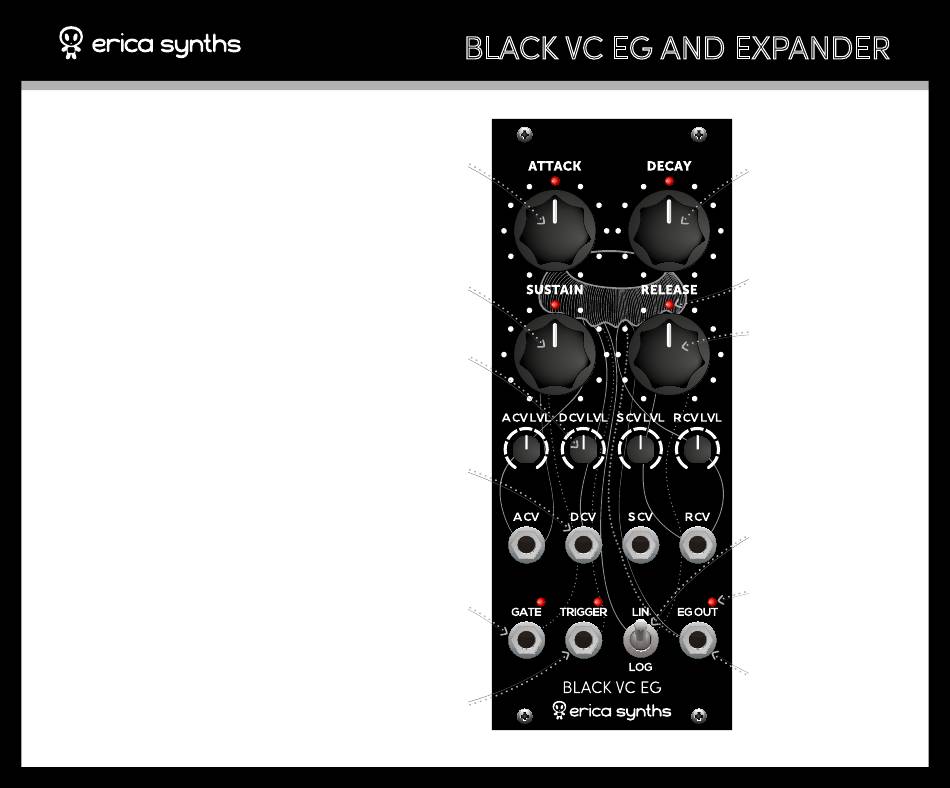

BLACK VC EG AND EXPANDER
Set attack time
of the envelope.
The potentiometer has
exponential curve, so first
half of turn will alter attack
time form 0 to 1"
Set sustain level of the
envelope
These are CV attenuators
for each envelope stage
These are CV inputs to
alter time/level for each
stage of the envelope.
Unlike regular CV control
over ADSR parameters,
Black VC EG samples CV
at the beginning of each
stage and sets duration/
level of the stage according
to momentary CV value
Patch gate signal here
to start the envelope.
If nothing is patched in
this jack, the envelope
generator automatically
advances in looping mode,
where loop is defined by
A and D times.
You can retrigger the
envelope at any stage by
applying trigger signal
here. Also trigger initiates
AD envelope instead of
ADSR.
Set decay time of the
envelope
Small LEDs give visual
feedback on active stage
Set release time of the
envelope
Switch between linear
or logarithmic envelope
shapes
Small LEDs give visual
feedback on input/output
status
This is envelope output
Advertisement
Summary of Contents for Erica Synths BLACK VC EG
- Page 1 BLACK VC EG AND EXPANDER THANK YOU FOR PURCHASING ERICA SYNTHS BLACK SERIES MODULE! Set attack time Erica Black Series include high-end, of the envelope. The potentiometer has unique functionality and superior Set decay time of the exponential curve, so first envelope quality modules.
- Page 2 Logic output means, the NB! This is expander module that can be module outputs +5V gate LEDs give visual feedback connected only to the Black VC EG. It will signal when the relevant on each stage status stage is active.
- Page 3 BLACK VC EG AND EXPANDER SAFETY INSTRUCTIONS Please follow the instructions for use of this You will find Erica Synths terms of warranty at Erica Synths module below, ‘cause only this http://ericasynths.lv/en/terms/ will guarantee proper operation of the module Items for return, exchange and/or warranty and ensure warranty from Erica Synths.
