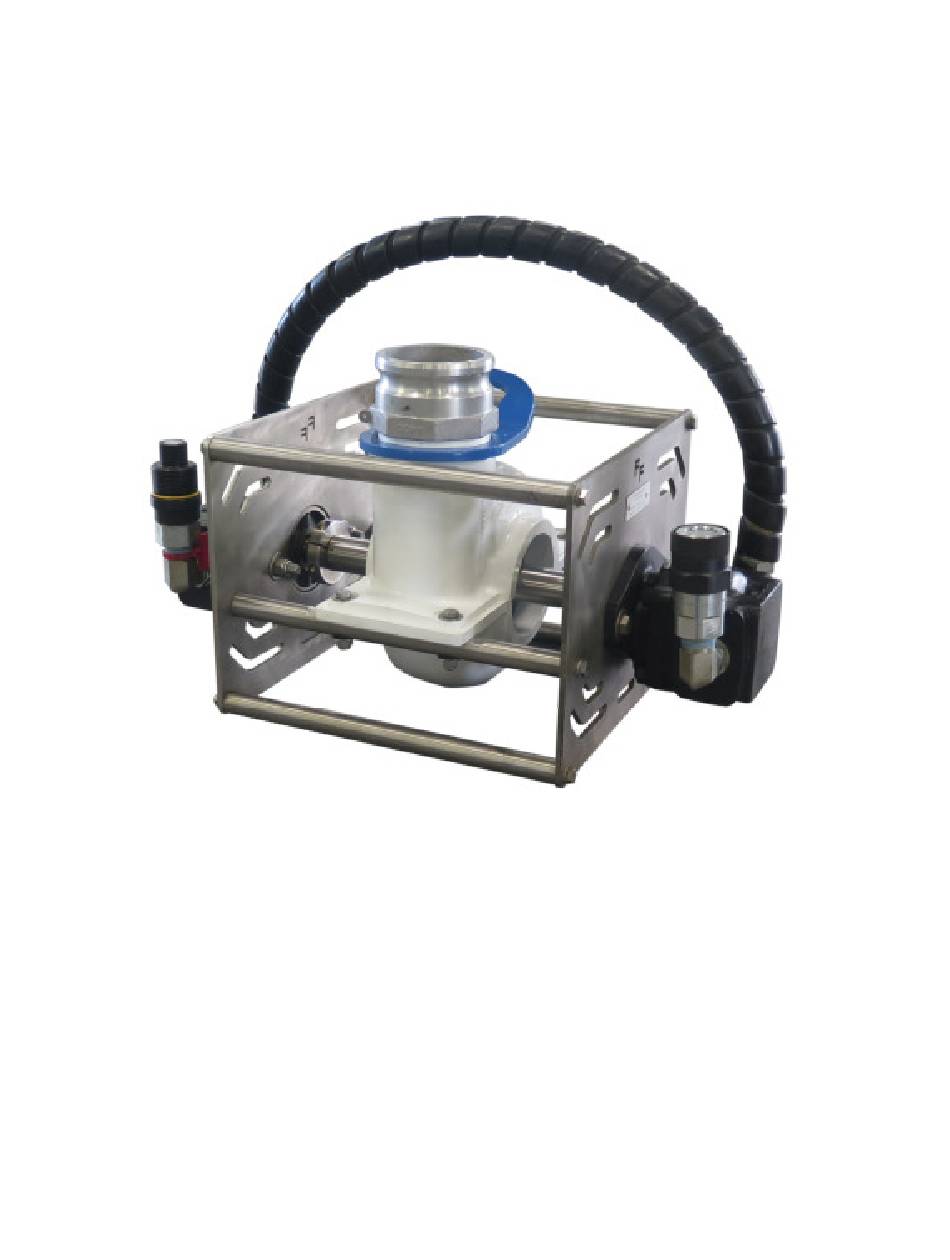

- Page 1 Fast Flow 4” Chromium Twin Motor Centrifugal Submersible Hydraulic Pump Opera on and Maintenance Manual Revision 5—03/01/2021...
- Page 2 C E N T R I F U G A L S U B M E R S I B L E H Y D R A U L I C P U M P Operation and Maintenance Manual Manual: FF-4C-TM Language: English Revision: 4 Fast Flow Pumps LLC 9700 Highway 63 Moss Point, MS 39562 Phone (228) 475-2468 • Web fastflowpump.com...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Safety Informa on ........................... 4 Descrip on ............................5 Technical Data ........................ 5 Patent Informa on ......................5 Installa on ............................6 Unpacking and Hose Installa on ..................6 Hydraulic Power Unit Installa on & Pump Connec on ..........7 Hydraulic Connec ons……………………………………………………………………………………………….8 Pump Tes ng Procedures .................... -
Page 4: Safety Informa On
•Read and familiarize yourself with both the FF-4C-TM Manual and the HPU’s manual before a=emp ng to operate this pump. Pump service applica ons are seldom iden cal, please call Fast Flow Pumps at (228) 475-2468 if you have any ques ons about your specific applica on. -
Page 5: Descrip On
Descrip on This opera on and maintenance manual applies to the Fast Flow Pump model FF-4C-TM Centrifugal pump system, made up of two major components—the pump head manufactured by Fast Flow Pumps and the Hydraulic Motors mounted on the Pump Head. In order to use this pump system you will also require supply and return hydraulic hose and an external power source. -
Page 6: Installa On
•Ensure the hydraulic motor and hose couplings are free of blockage, have not been damaged, and properly match. •Contact Fast Flow Pumps or an approved service provider if any system component appears to be damaged, defec ve, or incomplete. Hose Installa on •Connect the hoses from the power source-connect the return hose first, when turning off... -
Page 7: Hydraulic Power Unit Installa On & Pump Connec On
Fluid Power System | Hydraulic Power Unit (HPU) •Follow any warning s ckers and instruc onal s ckers on the HPU, as well as reading the manual. •Ensure the HPU has a flow of 4-32 GPM (15-121 LPM) @ 2000-3000 PSI (155-206 Bar) and make sure the system opera ng pressure is set between 1500 PSI to 3000PSI. -
Page 8: Hydraulic Connec Ons
Hydraulic Connec ons 1. Clean the ma ng surface of the couplings to avoid contamina ng the circuit. 2. Pull the connec on sleeve of the female coupling forward 3. Align the female and male coupling holding the connec on sleeve and thread together and turning the sleeve. -
Page 9: Pump Tes Ng Procedures
Dry Run Spin Test The FF-4C-TM is capable of Running Dry for extended periods of me, and it is best prac ce to perform a run dry test before using the pump. To perform this test, first double check that all hydraulic couplings are fully ghtened, then connect the hydraulic system and run the FF-4C-TM pump dry with varying speeds for 1-2 minutes. -
Page 10: Shutdown And Disassembly
Shutdown and Disassembly Shut Down •Slowly shut down the power unit, star ng/stopping fluid flow suddenly can cause damage to the pump and motor seals. In case of Emergency, you can use the manual shutdown on the hydraulic power unit. Disassembly •Ensure all moving parts have come to a complete stop. -
Page 11: Exploded View Diagrams
Pump Head Exploded View w/Parts List ❷ Fast Flow ⓯ Pump Part Number FF-4C-TM-SS ⓬ ⓮ ❿ ❻ ⓭ ❼ ❻ ❺ ❹ ❶ ⓫ ❺ ❽ ❼ ❻ ⓮ ❻ ❸ ❾ ⓭ ❶ Major Pump Parts Description Part No. -
Page 12: Torque Spec Sheet
Torque Spec Sheet/Hardware List ❻ ❸ Recommended Thread Locker ❼ Primer Loc te SF 7649 ❶ Locker Loc te 242 Hardware List Description Part No. Torque Specs Anti-Seize Loctite Primer 1. 3/8"-16 x 1" (SS) HCS [Hex Head Bolt] HDW113 17 ft-lb/23 Nm 2. -
Page 13: Impeller Removal And Replacement
Impeller Replacement Disassembly Make certain there is no residual pressure in the hydraulic system 2. Disconnect hydraulic power hoses from the pump head 3. Drain off any fluid by inver ng the pump head and clean. 4. Place the pump head on a solid flat surface with adequate working space. 5. -
Page 14: Troubleshoo Ng
Troubleshoo ng Problem Possible Causes Resolu ons 1. No hydraulic fluid or pressure. 1. Turn on power unit and test that Pump will not Turn appropriate flow and pressure is available 2. Bad hydraulic couplers or not with flow gauge and pressure meter. screwed together properly 2. -
Page 15: Warranty
All warranty claims should contact Fast Flow Pumps at 9700 Hwy 63, Moss Point, MS 39562. Power Units judged by Fast Flow Pumps to have been defective in workmanship or materials when shipped from the factory and within the warranty period, will be either repaired or replaced at the discretion of Fast Flow Pumps free of charge excluding motor freight both ways.
