Summary of Contents for FAS FNI ECT-106-009-K54

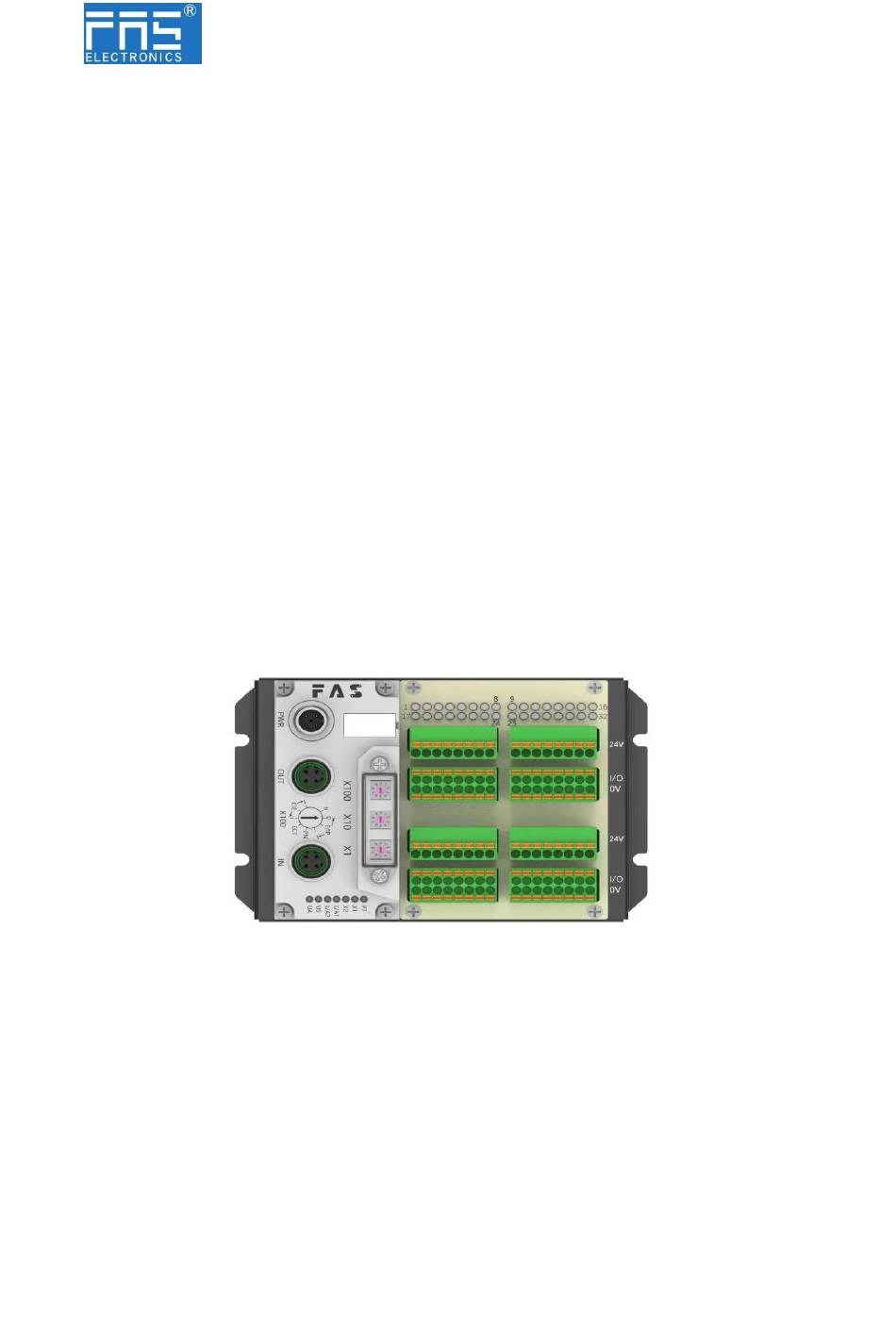

- Page 1 FuYanShengElectronic(FuJian)Co.,Ltd. FNI ECT-106-009-K54 (009E73) IP 20 Module User Manual Page 1 of 12...
-
Page 2: Typography
1 Notes 1.1. Manual structure 1.1This manual is organized by organization, so the chapters are interconnected. Section 2: Basic Security Information. Chapter 3: Getting Started Guide Chapter 4: Technical Data ..1.2. Typography The following typographic conventions are used in this manual. Enumerate The enumeration is displayed as a list with bullets. -
Page 3: Safety
1.3. Acronym FAS network interface Standard input port Profinet EtherCAT CCIEBS CC-Link IE Field Basic Slave Ethernet/IP Electromagnetic Compatibility Functional ground Standard output port 1.5.Viewing angle deviation Product views and explanations in this manual m ay deviate from the actual product. They are on ly used left and right to explain the material. -
Page 4: Table Of Contents
Content 1 Notes 1.1. Manual structure 1.2. Typography 1.3. Symbol 1.4. Abbreviation 1.5. Deviating views 2 Safety 2.1. Intended use 2.2. Installation and startup 2.3. General Security Notes 2.4. Resistance to aggressive substances 3 Getting Started Guide 3.1. Module overview 3.2. - Page 5 FuYanShengElectronic(FuJian)Co.,Ltd. 3 入门指南 3.1. 模块综述 Power supply interface Sensor power supply+24V EtherCAT output port 1-32 Signal interface Sensor power supply 0V DIP switch 10 Sensor power supply+24V EtherCAT input port 11 32-64 Signal interface Module status indicator 12 Sensor power supply 0V Signal status indicator light Page 5 of 12...
- Page 6 FuYanShengElectronic(FuJian)Co.,Ltd. display Function blue EtherCAT protocol close No error, device initializing Green light Pre-operation: The device is in pre-operation state flashes 2.5HZ G r e e n l i g h t Safe operation: The equipment is in safe operation. f l a s h e s 1HZ Steady green Running: The device is running...
-
Page 7: Mechanical Connection
FuYanShengElectronic(FuJian)Co.,Ltd. 3.1 guide 3.2. mechanical connection3. The module is installed with 4 M4 bolts or DIN35 rail clips. 3. Electrical connections 3.3.1 Network Interface (D-code) send data+ receive data- send data+ receive data- illustrate: Unused I/O port sockets must be covered with end caps to meet the IP67 degree of protection. -
Page 8: Size
FuYanShengElectronic(FuJian)Co.,Ltd. 4.2 mechanical data Shell material Aluminum shell Shell rating conforms to IEC 60529 IP20 A-Code power interface Pluggable screw-free quick connect terminals input port/output port 136.5mm*92mm*52.7mm Size(W*H*D) installation type Screw fixing or DIN35 guide rail snap-on about 670g Weight 4.3. - Page 9 FuYanShengElectronic(FuJian)Co.,Ltd. Technical data 4.1. size Page 9 of 12...
-
Page 10: Integrated
FuYanShengElectronic(FuJian)Co.,Ltd. 5 integrated 5.1 Module configuration 5.1.1 reset 1. When the device is powered off, dial 900; 2.. Power on the device and wait 10 seconds; 3.Power off the device and dial the code to the state before setting; 4.Power on the device and restore it to factory status; 5.1.2 Node address configuration ①The node address is assigned by PLC: Dial address X100=4 X10=0 X1=0... -
Page 11: Plc Integration Tutorial
FuYanShengElectronic(FuJian)Co.,Ltd. 5.3 PLC Integration tutorial 5.3.1 Omron NX1P2 Sysmac Studio integrated (ECT) 1. Install the ESI file: Double-click EtherCAT in Configuration and Settings--right-click the main device--select "Show ESI Library", and select the ESI file in the pop-up window for installation. 2、Configure the module into the EtherCAT network: Find the FieldBus Modules in the toolbox on the right. -
Page 12: Appendix
FuYanShengElectronic(FuJian)Co.,Ltd. 6 appendix 6.1. Order code Part number Order code FNI ECT-116-009-K54 009E73 Page 12 of 12...
