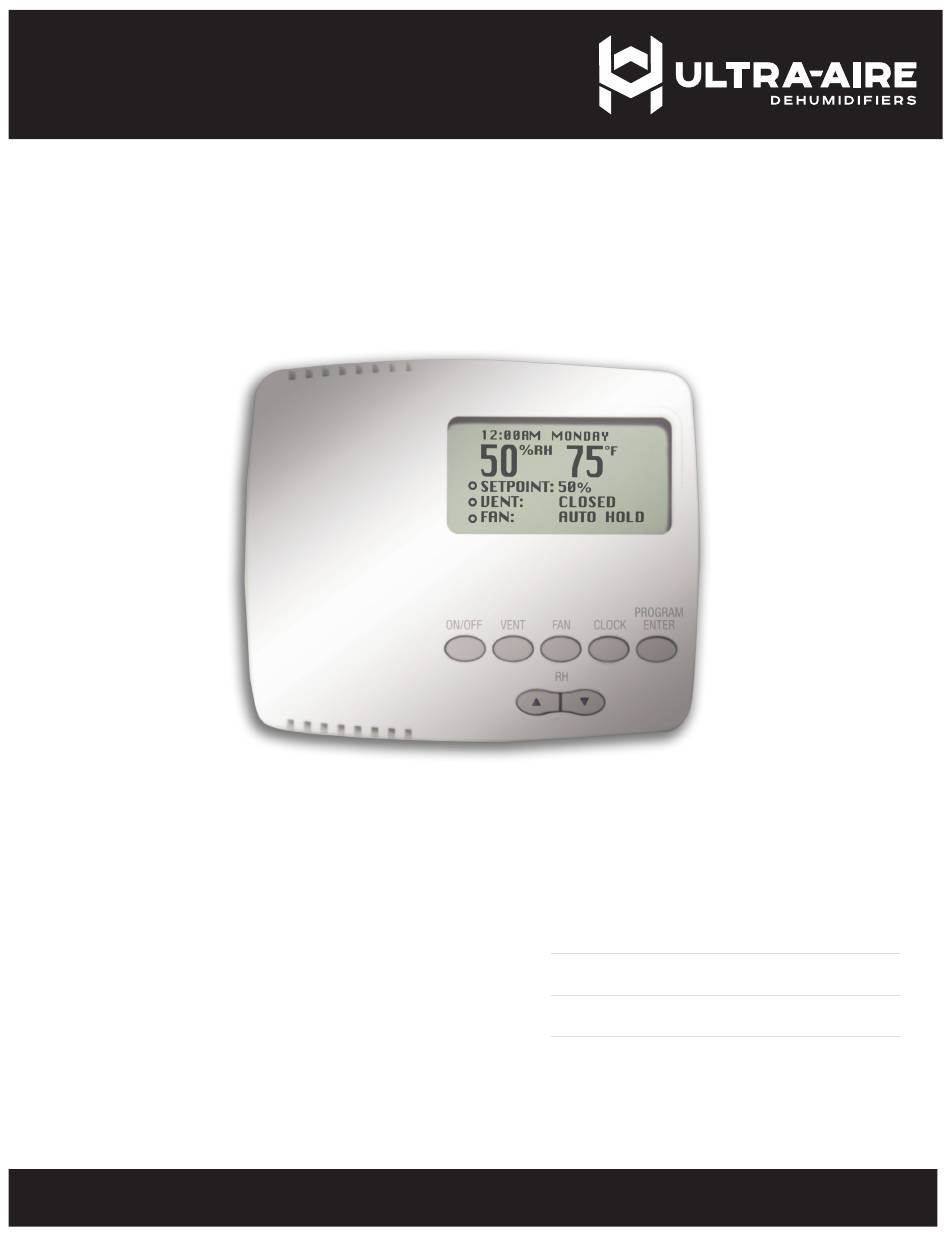

ULTRA AIRE DEH 3000 / 3000R
Installation & Operation Instructions
The Ultra Aire DEH3000 / 3000R Digital Control is
designed to integrate with the Ultra Aire line of
ventilating dehumidifiers and enables homeowners
to monitor and control moisture levels, manage
fresh air ventilation (with optional damper) and
activate air filtration - all from the convenience of
their living space.
Ultra-Aire.com | 800.533.7533
Serial Number
Install Date
Sold By
TS-1110 7/19 Rev B
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Ultra-Aire DEH 3000
- Page 1 ULTRA AIRE DEH 3000 / 3000R Installation & Operation Instructions The Ultra Aire DEH3000 / 3000R Digital Control is Serial Number designed to integrate with the Ultra Aire line of Install Date ventilating dehumidifiers and enables homeowners to monitor and control moisture levels, manage...
-
Page 2: Table Of Contents
Remote Sensor Option ............... 17 Warranty ..................18 Ultra Aire is committed to manufacturing quality products. To maintain our standards, product specifications may change without notice. 4201 Lien Road, Madison, WI 53704 (800) 533-7533 www.Thermastor.com | www.Ultra-Aire.com © 2019 Therma-Stor LLC... -
Page 3: Safety Instructions
Max Current - DMP, COMP, FAN: ± 10 - 95% RH, Humidity Range/Accuracy: 5 Amps, 24 VAC Auxillary Relay Capacity: 30°-90° F, 2% Temp Range/Accuracy: Dimensions: Width: 1.06" Height: 4.19" Length: 4.95" Ultra-Aire.com | (800) 533-7533 Ultra Aire DEH 3000/R Installation Instructions... -
Page 4: Installation
INSTALLATION Install the DEH 3000 control or the remote sensor portion of the DEH 3000R in a central area of the structure where it will sense the relative humidity of the structure accurately. Do not install the control panel or remote sensor where it may not accurately sense the relative humidity such as near HVAC supply registers, near exterior doors and windows, or near a pool or spa. -
Page 5: Wiring
THE REMOTE CONTROL OF THE ULTRA AIRE DEHUMIDIFIER OPERATES ON A LOW VOLTAGE CIRCUIT (24 VAC) AND MUST NEVER CONTACT OR BE CONNECTED TO A HIGH VOLTAGE CIRCUIT. WARNING! UNPLUG THE ULTRA AIRE DEHUMIDIFIER BEFORE WIRING THE DEH 3000/R. The installer must supply all field wiring, including the wiring between the Ultra Aire dehumidifier and the DEH 3000/R. Some of the control wires or terminals on the dehumidifier may not be used in some control situations and should be left disconnected with wire nuts taped onto the stripped ends (if necessary). - Page 6 White W or W1 operation of the central heating/cooling Force Fan On Green system with dehumidifier fan operation. Compressor The DEH 3000/R contains a relay that Call for Cooling Yellow Y or Y1 provides this ability. Terminal Block Control Operation: Terminal Function Version 1:...
-
Page 7: Common Uses
1. Wire the Yellow thermostat terminal to the NC terminal on the DEH 3000/R. 2. Run the Yellow wire from the A/C unit to the COM terminal on the DEH 3000/R. Energize the A/C Central Fan During Dehumidifier Fan Operation (Figure 2) To automatically run the A/C FAN when the dehumidifier fan runs. -
Page 8: Dehumidifier Lock-Off Or Lock-On
Figure 4 24VAC 24VAC TRANSFORMER TRANSFORMER BLACK BLACK BLACK BLACK ON-DETECT GREEN GREEN OFF-DETECT COMP COMP YELLOW UNIT YELLOW UNIT YELLOW YELLOW HVAC THERMOSTAT HVAC THERMOSTAT DEH 3000 DEH 3000 Ultra Aire DEH 3000/R Installation Instructions Ultra-Aire.com | (800) 533-7533... -
Page 9: Testing
Increase the RH “SETPOINT” on the display to well above the “%RH” reading on the display. Press the “RH” up arrow to increase the RH “SETPOINT”. After running the dehumidifier compressor, the DEH 3000/R applies a 10 minute restart lockout on all functions. You will have to wait for the restart lockout to expire. -
Page 10: Troubleshooting
Yellow & Blue 24V and DEHU Fan & Compressor Yellow & Green 24V and FAN Fan Only Note: A jumper or normal closed float switch must be installed from FLOAT to FLOAT. Ultra Aire DEH 3000/R Installation Instructions Ultra-Aire.com | (800) 533-7533... -
Page 11: Operation
10 seconds, the control will remember any changes made and return to the normal display screen, allowing you to proceed to the next step. Ultra-Aire.com | (800) 533-7533 Ultra Aire DEH 3000/R Installation Instructions... -
Page 12: Setting Clock Time
Temperature Cutout Programming Dehumidifiers produce heat when dehumidifying and depending upon outside conditions, the ventilation function may also introduce warm air. Some conditions may introduce enough heat to drive household temperatures up. The DEH 3000/R temperature cutout feature disables all Ultra Aire operations if household temperatures reach the cutout setpoint. In most installations this feature will not need to be used (the cutout is factory set to 99°F). If a lower temperature cutout is desired, program the setpoint by pressing and holding the “PROGRAM ENTER”... -
Page 13: Fan Setting And Operation
To set “OPEN” – hold or “CLOSED” – hold ventilation operation: 1. P ress the “VENT” button. The current setting will begin to flash on the display. Release the button. 2. P ress the “VENT” button again to switch between “OPEN” and “CLOSED”. 3. Leave the control alone for 10 seconds and your settings will be saved. Ultra-Aire.com | (800) 533-7533 Ultra Aire DEH 3000/R Installation Instructions... -
Page 14: Damper Operation And Ventilation, Programmed Ventilation
The DEH 3000/R will operate fresh air ventilation according to your ventilation program. The control needs to be programmed to turn the ventilation function ON and OFF at the desired intervals. This is done by programming the ventilation timer. - Page 15 15 minutes. This schedule of 15 minutes open, 15 minutes closed will continue until the start time of the night schedule. Morning schedule is available anytime from 12:00AM until 11:59AM. Night schedule is available anytime from 12:00PM until 11:59PM. 4. P ress “PROGRAM ENTER” again to go to the “MON-FRI” night schedule. Repeat the steps listed above for this and the “SAT-SUN” day and night schedules. When you have finished programming your schedule (either the 7-day version or the weekday/weekend split version), use the down “RH” button to highlight the EXIT option and then press “PROGRAM ENTER” to select it. Running the Ventilation Program Press and hold the “PROGRAM ENTER” button until the “PROGRAM” screen appears as shown below. Use the down “RH” button to highlight “RUN PROGRAM”. Then press “PROGRAM ENTER” to select it. The display below will appear. Ultra-Aire.com | (800) 533-7533 Ultra Aire DEH 3000/R Installation Instructions...
-
Page 16: Calibration
If no key is pressed for 5 seconds, the control exits this mode. Calibration Reset While setting the offset (RH or Temp is Flashing) If you hold the program button for two seconds, the offset will be set to the default of 0. Ultra Aire DEH 3000/R Installation Instructions Ultra-Aire.com | (800) 533-7533... -
Page 17: Remote Sensor Option
NOT COVERED BY THE PRODUCT WARRANTY. The remote sensing option is used when an installation requires mounting the DEH 3000 out of the conditioned space or when it is desired to specifically monitor and control the conditions at a particular location in a larger conditioned space. -
Page 18: Warranty
Some states do not allow limitations on how long an implied warranty lasts, and some do not allow the exclusion or limitation of incidental or consequential damages, so one or both of these limitation may not apply to you. Legal Rights: This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Ultra Aire DEH 3000/R Installation Instructions Ultra-Aire.com | (800) 533-7533... - Page 20 (800) 533-7533 www.Ultra-Aire.com...
