QIACHIP B09P8HGMJX Manual

DC12-72V RF wireless controller manual

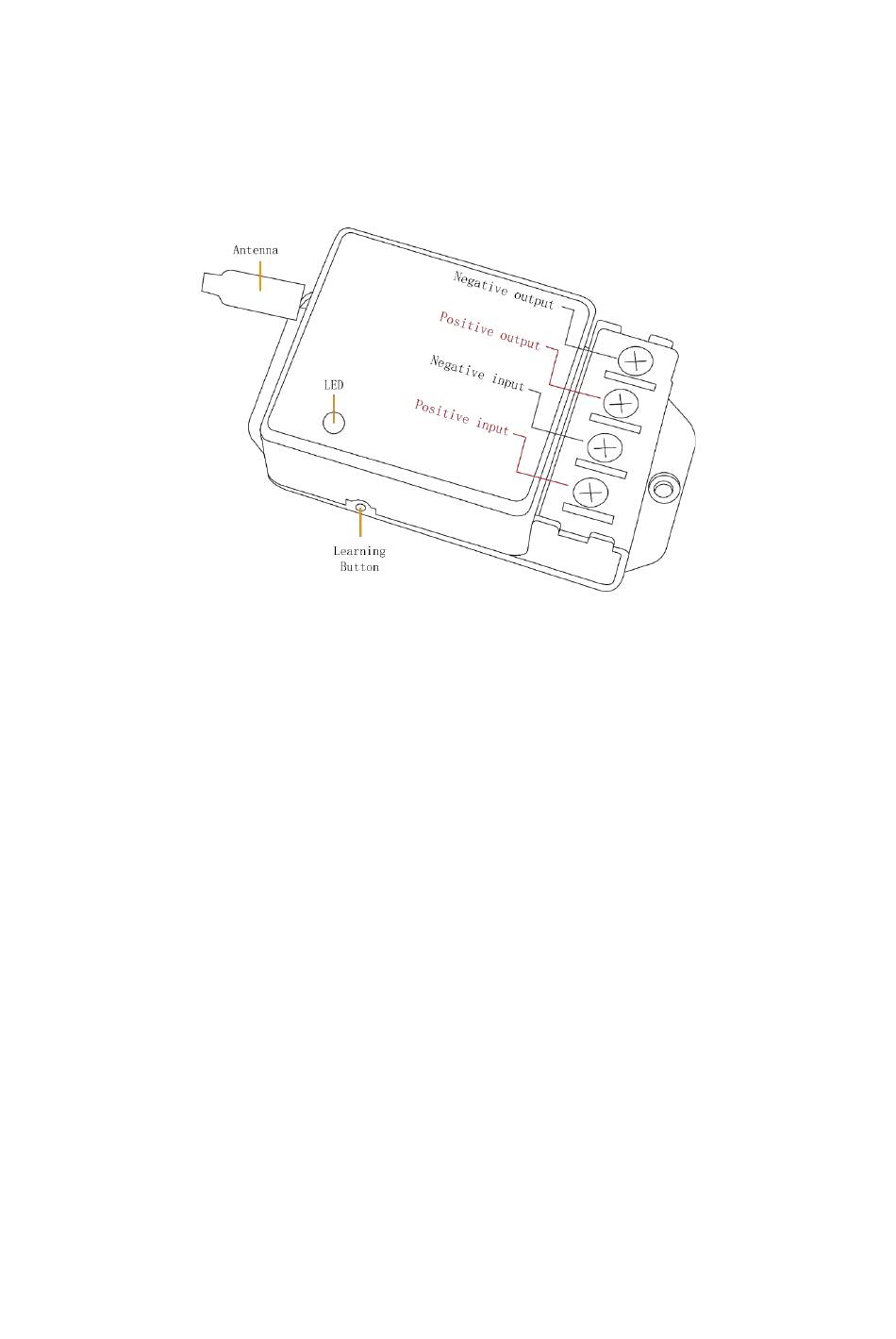

Wiring diagram
Instructions
1. Reset settings
After pressing the learning button 8 times, the indicator light flashes, the output of
the device is powered off, and all the remote control data in its memory is cleared at
the same time. After the power is restored, the output of the device is directly powered
off.
2. Toggle mode pairing instructions
Toggle mode: The same button of the remote control can control the power-on
and power-off of the output terminal of the device. Press once to power on the output
terminal of the device, and press it again to power off the output terminal of the device.
Setting method: Press the learning button twice continuously, the device indicator
light is always on, the device enters the code matching state, and then long press the
button of the remote control, the indicator light goes out after the code is successfully
coded.
3. Latching mode pairing instructions
Latching mode: The two buttons of the remote control respectively control the
power-on and power-off of the output terminal of the device. One button can only
control the power-on of the output terminal of the device, and the other button can
only control the power-off of the output terminal of the device.
