MR CARTOOL V30 User Manual

Injector cleaner & tester
Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the V30 and is the answer not in the manual?

Questions and answers

Related Manuals for MR CARTOOL V30

Summary of Contents for MR CARTOOL V30

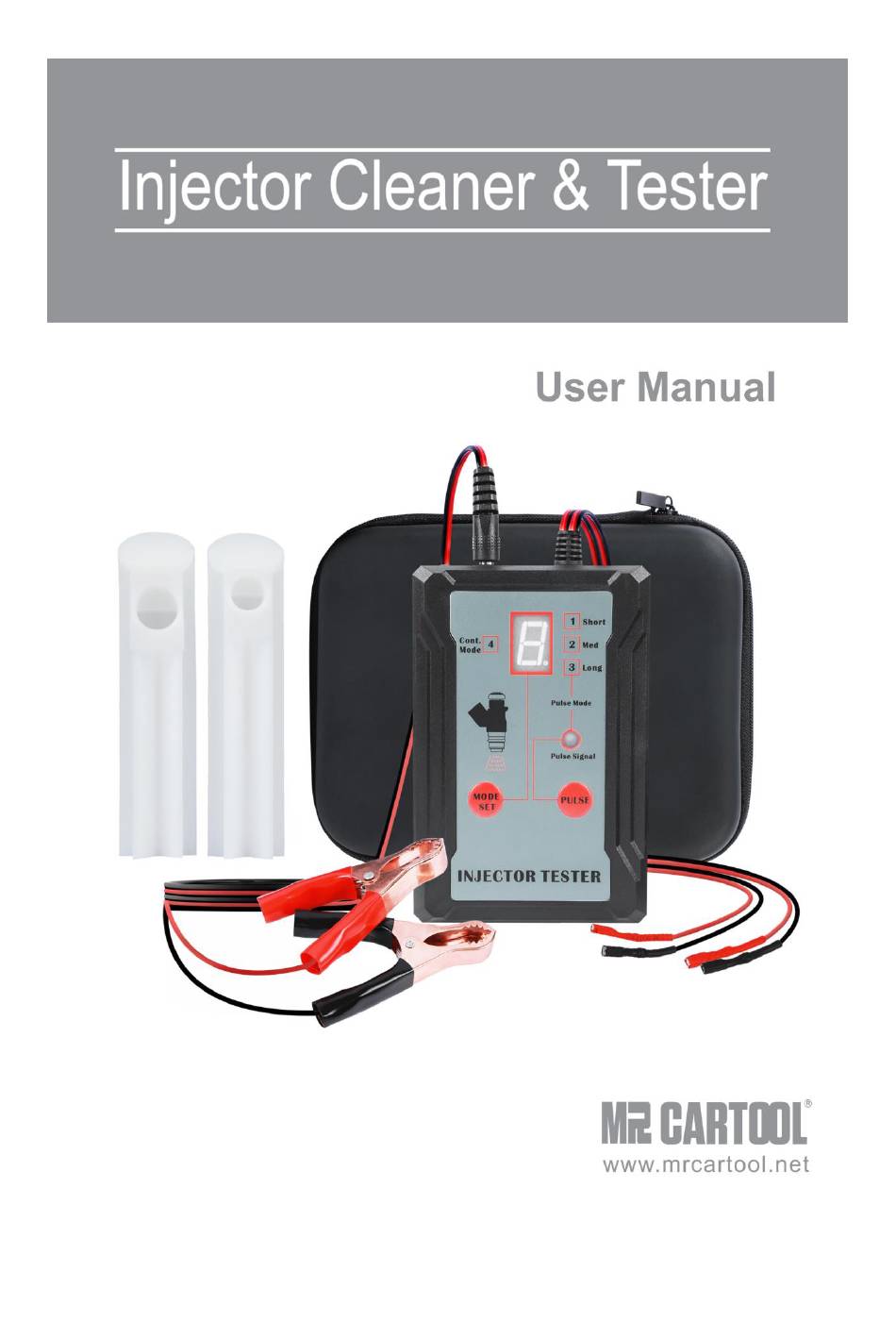

  • Page 2 Product Display ① DC input port (12V) ② Working mode indication window ③ Output status indicator light ④ Power indicator + short circuit protection indicator ⑤ Pulse output button ⑥ Mode selection button ⑦ Pulse output terminal ⑧ Battery clamp ⑨...

  • Page 3: Product Introduction

    Product Introduction This instrument can help you diagnose injector problems and can be used to test injectors one by one or two at the same time to help confirm sticking, leaking, damage or burnout conditions. It has 2 output voltage levels and 4 pulse signal output modes.

  • Page 4: Mode Description

    of fuel injection cleaner (Not Included). Mode Description ⚫ Mode 0: standby state, no output ⚫ Mode 1: Single pulse low power mode, in this mode, when the PULSE key is pressed, the instrument will send out a pulse with a pulse width of about 255 milliseconds.

  • Page 5: Electrical Specifications

    Point 1. This product includes power input reverse connection protection and output short circuit protection functions. In the case of a damaged fuel injector or a short circuit of the pulse output terminal, the power indicator light will flash. 2. This product can be modified for relay testing or solenoid valve testing, and other modifications should be carried out under the guidance of professionals Electrical Specifications...
