Harbor Infinity Overhead Merchandiser Instruction Sheet

With large backlit graphic
Hide thumbs

Advertisement

Table of Contents

HARBOR • Infinity Overhead Merchandiser
NOTICE: PROFESSIONAL INSTALLERS
ARE RECOMMENDED FOR THIS
INSTALLATION. FOR ASSISTANCE
WITH THIS, PLEASE CONTACT OUR
CUSTOMER SERVICE DEPARTMENT
AT 616-842-5330.
NOTICE: The Infinity Overhead Merchandiser may
be referred to as "IOM" throughout these instructions.

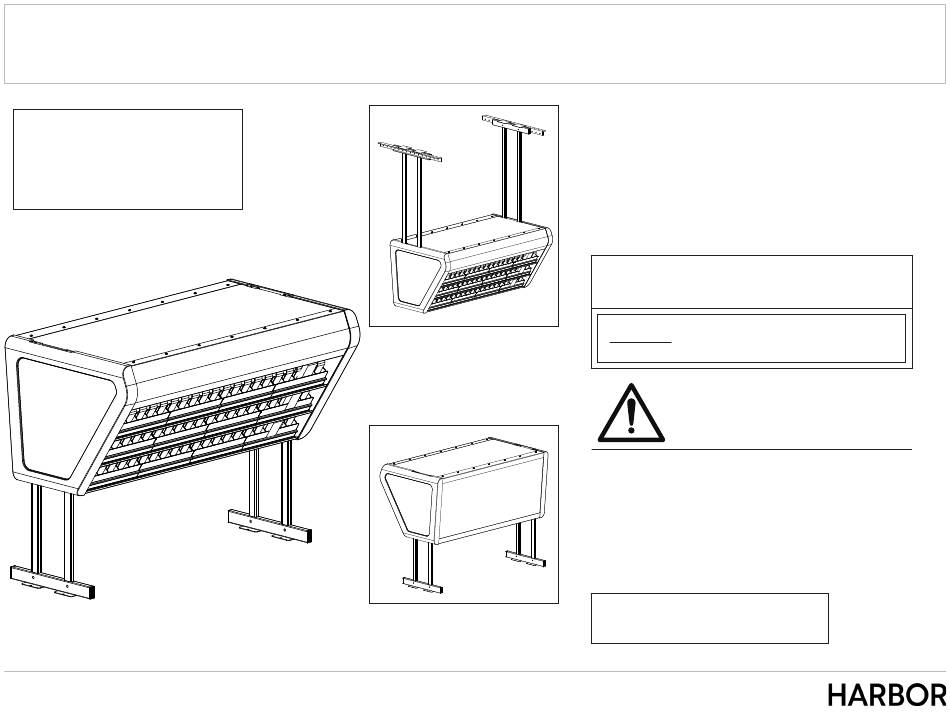

SHOWN COUNTER MOUNT
(CASHIER SIDE)
325076IS
07-08-2024
**IT IS THE RESPONSIBILITY OF THE INSTALLER TO CAREFULLY READ & FOLLOW ALL STEPS IN THE INSTRUCTIONS.
With Large Backlit Graphic
CEILING MOUNT
(CASHIER SIDE)
174 POUNDS WITHOUT PRODUCT
(CONSUMER SIDE)
SHEET 1 OF 15
Carefully read the contents of these instructions, as the
instructions indicate the correct step by step procedure to
assemble the product. The carton contents page(s) will
identify the assembly part numbers and their descriptions.
Before proceeding with the assembly process, match the
carton contents to the stated contents to ensure there are
no missing parts. In the event of assembly problems or
missing parts, please call our customer service department
at 616-842-5330.
CAUTION:
ASSEMBLED UNIT IS VERY HEAVY. DO NOT ATTEMPT TO
LIFT OR MOVE WITHOUT ASSISTANCE.
THE MANUFACTURER OF THIS DISPLAY ASSUMES
NO LIABILITY FOR INJURY CAUSED BY IMPROPER
ASSEMBLY / INSTALLATION OF THIS DISPLAY.
WARNING :
This product contains chemicals known to
the State of California to cause cancer and
birth defects or other reproduction harm.
For more information, go to www.P65Warnings.ca.gov
3 PEOPLE NEEDED TO ASSEMBLE
ESTIMATED TIME : 1 HOUR
TOOLS
• #2 Phillips screwdriver
• Power driver
• Tape Measure
For Counter Mount IOM, refer to sheet 4.
For Ceiling Mount IOM, refer to sheet 12-15.
• Ladder
• Flat Blade Screwdriver

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Infinity Overhead Merchandiser and is the answer not in the manual?

Questions and answers

Summary of Contents for Harbor Infinity Overhead Merchandiser

  • Page 1 CUSTOMER SERVICE DEPARTMENT AT 616-842-5330. no missing parts. In the event of assembly problems or missing parts, please call our customer service department NOTICE: The Infinity Overhead Merchandiser may at 616-842-5330. be referred to as “IOM” throughout these instructions. CAUTION: ASSEMBLED UNIT IS VERY HEAVY.

  • Page 2: Safety Guidelines

    HARBOR • Infinity Overhead Merchandiser SAFETY GUIDELINES With Large Backlit Graphic WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in personal injury or property damage. This instruction manual uses the following safety terms to alert you to hazardous situations and the risk of personal injury or property damage.

  • Page 3: Carton Contents

    HARBOR • Infinity Overhead Merchandiser With Large Backlit Graphic 48678 #5/16-18 X 1-½ HEX HD 43706 1/4-20 X 1/2” TRUSS BT ZINC (4x) HEAD ZC (8x) 40913 #5/16-18 HEX NUT - 40113 #10 X 3/4 TEK PH PHL PLAIN (4x) SW ZC (8x) NOT SHOWN: 412801 WIRE MANAGEMENT TRACK (1x) &...
  • Page 4 HARBOR • Infinity Overhead Merchandiser With Large Backlit Graphic LEG ASSEMBLY COUNTER MOUNT INSTALLATION CAUTION The Counter Mount Installation of the IOM requires a minimum two people. STEP 1 Before mounting the leg assemblies, determine your 17”-34” 24”* desired counter clearance and reach to access the ADJUSTMENT product.
  • Page 5 HARBOR • Infinity Overhead Merchandiser With Large Backlit Graphic COUNTER MOUNT INSTALLATION (CONTINUED) STEP 2 With assistance, lift and place the IOM on the counter, as close to its final position as possible. Check that the leg assemblies are straight. Measure the distance between 24”...
  • Page 6 HARBOR • Infinity Overhead Merchandiser With Large Backlit Graphic END PANEL INSTALLATION Attach the RH and LH VF End Panel on each side of the IOM Base Assembly using (8x) 1/4-20 x 1/2” Truss Head 452098 LH VF END ZC (43706) screws, 4-per end panel.
  • Page 7 HARBOR • Infinity Overhead Merchandiser With Large Backlit Graphic SIDE GRAPHIC INSTALLATION Attach the side graphics to the end panels. NOTICE: Remove the backer from the tape on the back of the side graphics and adhere in place on the end panels.
  • Page 8 HARBOR • Infinity Overhead Merchandiser With Large Backlit Graphic TRAY/TRACK INSTALLATION STEP 1 Install the Module Track by snapping tabs into the corresponding slots on the IOM shelf, as shown. Tabs 325076IS 07-08-2024 **IT IS THE RESPONSIBILITY OF THE INSTALLER TO CAREFULLY READ & FOLLOW ALL STEPS IN THE INSTRUCTIONS.
  • Page 9 HARBOR • Infinity Overhead Merchandiser With Large Backlit Graphic TRAY/TRACK INSTALLATION (CONTINUED) Tray Slots STEP 2 Insert the tray guides into the slots on the front of the module track and slide the tray back into place. The front of the tray drops into the lip at the front of the shelf.
  • Page 10 HARBOR • Infinity Overhead Merchandiser With Large Backlit Graphic PRODUCT RETAINER Product retainers reside on the underside of each shelf. They are used to hold the remaining product in place, as the product from the front of the tray is removed for purchase.

  • Page 11: Cord Management

    HARBOR • Infinity Overhead Merchandiser With Large Backlit Graphic CORD MANAGEMENT For a counter mounted IOM, the power cord can be run out the left or right side. To change the side the power cord comes out of, remove the two thumb screws that hold the lower access panel in place.

  • Page 12: Ceiling Mount Installation

    HARBOR • Infinity Overhead Merchandiser With Large Backlit Graphic CEILING MOUNT INSTALLATION EXAMPLE #1 Ceiling Mount Point Due to the variety of ceiling structures and heights, installations will vary. PROFESSIONAL INSTALLERS ARE RECOMMENDED. Installation of this fixture requires three people. Two (minimum) to lift the fixture and one to attach the hardware to secure the IOM in place.
  • Page 13 HARBOR • Infinity Overhead Merchandiser With Large Backlit Graphic CEILING MOUNT INSTALLATION (CONTINUED) Leg Base Again, due to the variety of ceiling structures and heights, installations will vary. PROFESSIONAL INSTALLERS ARE RECOMMENDED. 50.75” CAUTION The ceiling mount installation of this merchandiser requires three people.
  • Page 14 HARBOR • Infinity Overhead Merchandiser With Large Backlit Graphic CEILING MOUNT INSTALLATION (CONTINUED) PROFESSIONAL INSTALLERS ARE RECOMMENDED. NOTICE: When ceiling tile is present, install the legs as shown in Step 3 (Sheet 15) first and then lift and secure IOM to the mounted leg assemblies as shown below in Step 2.
  • Page 15 HARBOR • Infinity Overhead Merchandiser With Large Backlit Graphic Rafter CEILING MOUNT INSTALLATION (CONTINUED) Angle Bracket STEP 3 Lift IOM in place. Using (4x) 5/16-18 X 1-1/2” Hex Bolts, (4X) Washers and (4x) Hex Nuts, attach each leg assembly to the installed angle brackets.
