Summary of Contents for Fridgemaster MUZ4860E

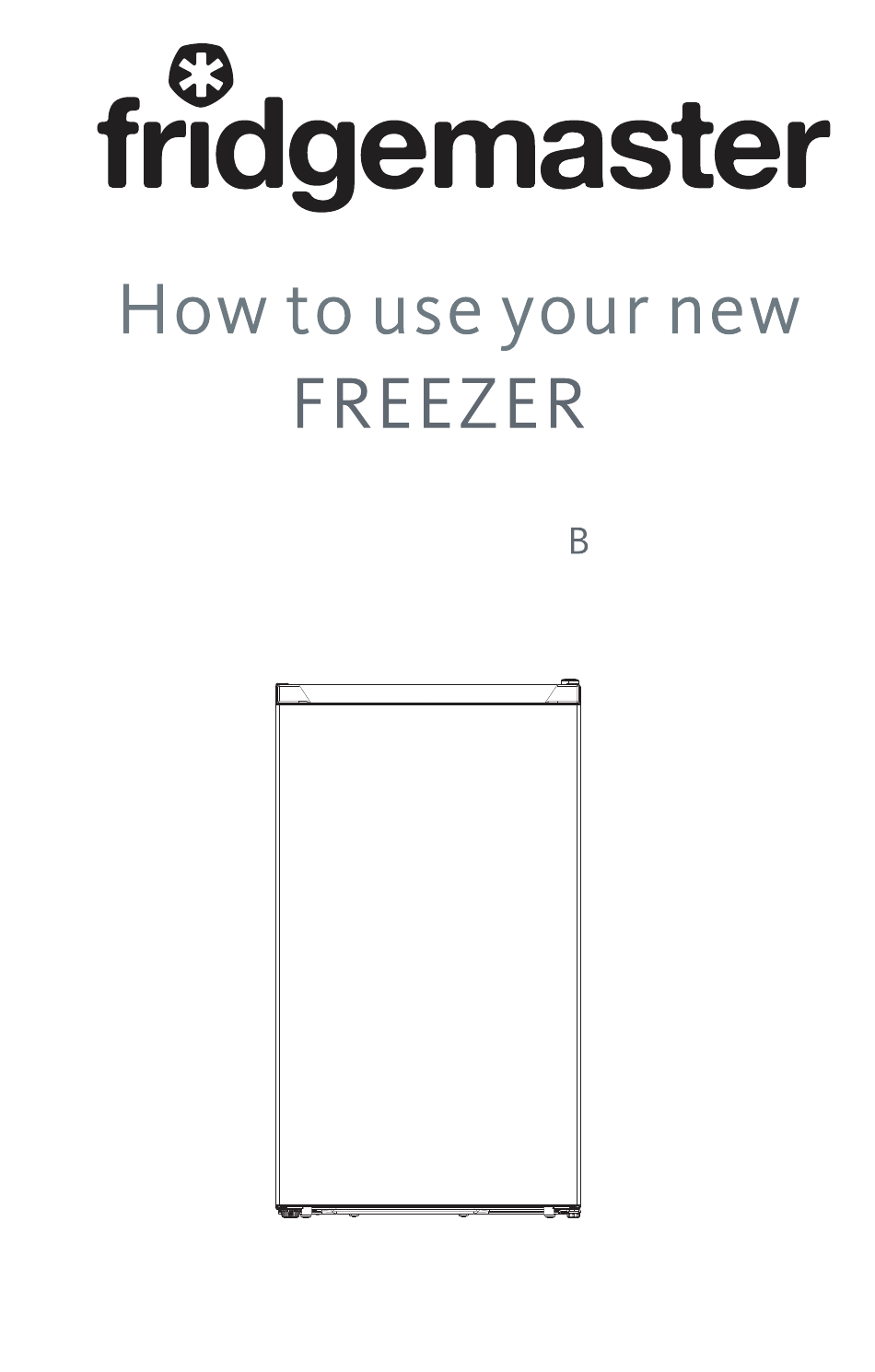

- Page 1 Model MUZ4860E MUZ4860E...
- Page 2 EU EPREL database using the link https://eprel.ec.europa.eu and the model name and product number that you can find on the rating plate of the appliance. For more detailed information about the energy label, visit www.theenergylabel.eu. https://www.fridgemaster.co.uk Important safety warning...
-
Page 3: Table Of Contents
CONTENTS INTRODUCTION 4 IMPORTANT NOTES AND PRECAUTIONS 4 SAFETY AND WARNING INFORMATION APPLIANCE 11 INSTALLING YOUR NEW APPLIANCE DESCRIPTION 13 APPLIANCE DESCRIPTION 14 CHANGING THE DOOR OPENING DIRECTION 16 OPERATING THE APPLIANCE 18 USING YOUR APPLIANCE DEFROSTING 21 HELPFUL HINTS AND TIPS AND CLEANING THE APPLIANCE 22 CLEANING AND CARE... -
Page 4: Important Notes And Precautions
IMPORTANT NOTES AND PRECAUTIONS SAFETY AND WARNING INFORMATION For your safety and correct usage, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to make sure that all people using the appliance are thoroughly familiar with its operation and safety features. - Page 5 According to IEC standard This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. •...
- Page 6 • WARNING — Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. • WARNING — If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. •...
- Page 7 • WARNING — Refrigerators contain refrigerant andgases in the insulation. Refrigerant and gases must be disposed of professionally as they may cause eye injuries or ignition. Ensure that tubing of the refrigerant circuit is not damage prior to proper disposal. WARNING! Risk of fire/flammable materials.
- Page 8 that the voltage exceeds the above scope, for safety sake, be sure to apply A.C. Automatic voltage regulator of more than 350W to the fridge. The fridge must employ a special power socket instead of common one with other electric appliances. Its plug must match the socket with ground wire.
- Page 9 instruction booklet The appliance is heavy.Care should be taken when moving it. • Do not remove nor touch items from the freezer compartment if your hands are damp/wet,as this could cause skin abrasions or frost/freezer burns. • Never use the base,drawers, doors etc. to stand on or as supports.
- Page 10 Installation Important! • For electrical connection carefully, follow the instructions given in this manual. • Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it.
-
Page 11: Installing Your New Appliance
INSTALLING YOUR NEW APPLIANCE • Before using the appliance for the fi rst time, you should review the following tips. Ventilation of appliance In order to improve effi ciency of the cooling system and save energy, it is necessary to maintain good ventilation around the appliance for the dissipation of heat. - Page 12 Leveling of appliance The appliance should be level in order to eliminate vibration. To make the appliance level, it should be upright and both adjusters should be firmly contacted with the floor. You can also adjust the level by screwing out the appropriate level adjuster at the front (use your fingers or a suitable spanner).
-
Page 13: Appliance Description
APPLIANCE DESCRIPTION 1. Control unit 2. Flap 3. Drawers 4. Adjustable feet 5. Door... -
Page 14: Changing The Door Opening Direction
CHANGING THE DOOR OPENING DIRECTION • The side at which the door opens can be changed from the right side (as supplied) to the left side (as supplied) to the left side, if the installation site requires. Tools you will need: 1. - Page 15 1. Open the appliance door and unhinge and remove all fittings from inside the appliance. 2. Remove the upper hinge cover (2). 3. Remove the two screws (3) that connect the upper hinge part (4) on the right side of the cabinet top. 4.
-
Page 16: Operating The Appliance
OPERATING THE APPLIANCE SWITCHING THE APPLIANCE ON Starting up and temperature regulation • Insert the plug of the connection lead into the plug socket with a protective grounding contact. When the refrigerator compartment door is opened, the internal lighting is switched on. •... - Page 17 ADJUSTING THE TEMPERATURE • Normally we advise you select a setting of 4, if you want the temperature warmer or colder please turn the knob to higher or lower setting accordingly. When you turn the knob to a higher setting, this can lead to more energy saving. Otherwise, it would result high consumption of energy.
-
Page 18: Using Your Appliance
USING YOUR APPLIANCE Accessories Freezer drawer • For storing frozen food. Ice-cube tray • For making ice and storing ice-cubes. Freezer food compartment • For freezing fresh food and storing frozen and deep-frozen food for a long time. Thawing food •... - Page 19 Order Compartments Target storage Appropriate food TYPE temp.[°C] Fridge Eggs, cooked food, packaged food, fruits and vegetables, dairy products, cakes, Drinks and other foods which are not suitable for freezing. –18 (***)* – Seafood (fish, shrimp, shellfish), Freezer freshwater aquatic products and meat products (recommended time is 3 months –...
- Page 20 Order Compartments Target storage Appropriate food TYPE temp.[°C] Chill –2 Fresh/frozen pork, beef, chicken, freshwater aquatic products, etc. (7 days below 0 °C and above 0 °C is recommended for consumption within that day, preferably no more than 2 days). Seafood (less than 0 for 15 days, it is not recommended to store above 0 °C) Fresh Food...
-
Page 21: Helpful Hints And Tips
HELPFUL HINTS AND TIPS Energy saving tips We recommend that you follow the tips below to save energy. • Try to avoid keeping the door open for long periods. • Ensure the appliance is away from any sources of heat (Direct sunlight, electric oven or cooker etc.) •... -
Page 22: Cleaning And Care
CLEANING AND CARE For hygienic reasons, the appliance interior, including interior accessories, should be cleaned regularly. The appliance should be cleaned and maintained at least every two months. Warning! The appliance should not be connected to the main power supply during cleaning. - Page 23 Defrosting Defrosting in frozen food storage compartment • Defrosting in the freezer chamber is operated manually. Before defrosting, take the foot out. • Tale the ice tray and drawers out or put them into the fresh food compartment temporarily. • leave the door of the refrigerator open until ice and frost dissolve thoroughly and accumulate at the bottom of the freezer chamber.
-
Page 24: Troubleshooting
TROUBLESHOOTING Warning! Before troubleshooting, disconnect the power supply. Only qualifi ed electrician or other personnel must carry out the troubleshooting that is not in the manual. Important! Repairs to the appliance may only be performed by competent service engineers. Improper repairs can give rise to signifi cant hazards for the user. - Page 25 Problem: Possible cause Solution • Carefully warm the leaking sections of the Heavy build-up door seal with a hair • Door seal is not air-tight of frost, possibly dryer (on a cool setting). (possibly after reversing the also on the door At the same time, shape door) .
-
Page 26: Disposal Of The Appliance
DISPOSAL OF THE APPLIANCE It is prohibited to dispose of this appliance as household waste. Packaging materials Packaging materials with the recycle symbol are recyclable. Dispose of the packaging into a suitable waste collection container to recycle it. Before disposal of the appliance 1. - Page 27 Fridgemaster Technical helpline and FRIDGEMASTER Service Centre Ground floor, Munroe Court, Telephone 0191 387 0804 White Rose Office Park, Millshaw Park Lane, Leeds LS11 0EA Fridgemaster@0800repair.com United Kingdom This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste.
