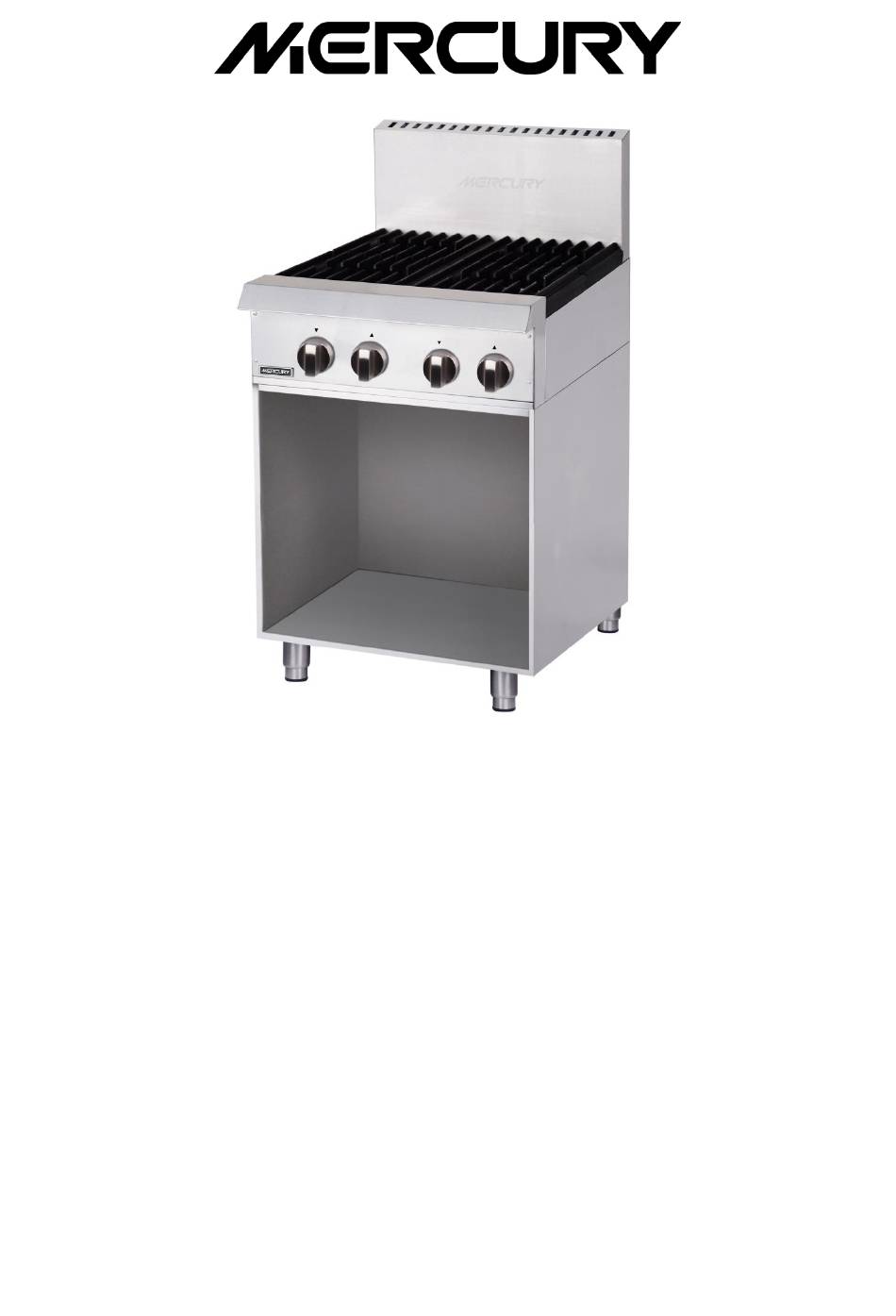

Mercury Gas Cook Top
Model: MHN-12-F MHN-24-F MHN-36-F
Installation and Operation Instructions
NOTICE: This manual contains important safety instructions which must be
strictly followed when using this equipment.
CAUTION: These models are designed, built, and sold for commercial use
only. If these models are positioned so the general public can use the
equipment, make sure that cautions, warnings, and operating instructions
are clearly posted near each unit so that anyone using the equipment will
use it correctly and not injure themselves or harm the equipment.
middleby.com.au

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MHN-12-F and is the answer not in the manual?

Questions and answers

Summary of Contents for Mercury MHN-12-F

  • Page 1 Mercury Gas Cook Top Model: MHN-12-F MHN-24-F MHN-36-F Installation and Operation Instructions NOTICE: This manual contains important safety instructions which must be strictly followed when using this equipment. CAUTION: These models are designed, built, and sold for commercial use only. If these models are positioned so the general public can use the...
  • Page 2 IMPORTANT FOR FUTURE REFERENCE Please complete this information and retain this manual for the life of the equipment. For Warranty Service and/or parts, this information is required. Model Number Serial Number Date Purchased WARNING: For your safety, do not store or use gasoline or other flammable vapors or liquids in the vicinity of this or any other appliances.
  • Page 3: Table Of Contents

    Installation and Operation Instructions Contents Introduction ....................4 Specifications ....................5 General Pack Contents Gas Supply Requirements Dimensions ....................6 Installation ....................7 Installation Requirements Unpacking Location Clearances Assembly Gas Connection Operation ......................12 Operation Guide Description of Controls Open Burners Cleaning and Maintenance ................15 General After Each Use Daily Cleaning...
  • Page 4: Introduction

    Installation and Operation Instructions Introduction We are confident that you will be delighted with your Mercury Gas Cook Top, and it will become a most valued appliance for you. To ensure you receive the utmost benefit from your new Gas Cook Top, there are two important things you can do.
  • Page 5: Specifications

    The following is included: Gas Cook Top  Feet  Instruction Manual  Gas Supply Requirements Natural Gas Propane MHN-12-F MHN-24-F MHN-36-F MHN-12-F MHN-24-F MHN-36-F Single burner Heat Input 32.5MJ 32.5 MJ 32.5 MJ 32.5 MJ 32.5 MJ 32.5 MJ...
  • Page 6: Dimensions

    Installation and Operation Instructions Dimensions MHN-24-F Model Number Dimensions (mm) MHN-12-F 1124 MHN-24-F 1124 MHN-36-F 1124...
  • Page 7: Installation

    Installation and Operation Instructions Installation Installation Requirements NOTE: • It is most important that this appliance is installed correctly and that operation is correct before use. Installation shall comply with local gas, health and safety requirements. • This appliance shall be installed with sufficient ventilation to prevent the occurrence of unacceptable concentrations of substances harmful to health.
  • Page 8 Installation and Operation Instructions Installation (Continued) 1. Remove screws and disassemble the top and side wood packaging. 2. Remove plastic wrap and set aside the flue box. 3. Remove the Gas Cook Top from the pallet for installation. Step 2: Install the Legs A set of four legs is packed with units ordered with legs.
  • Page 9: Location

    Installation and Operation Instructions Installation (Continued) Step 3: Attach Flue Riser Place the flue riser assembly on the range as shown on the appropriate diagram below. Slide the flue riser assembly over the bayonets until it bottom out, as shown below. Secure ends of flue riser assembly with two M6 hex head bolts, flat washers and lock-washers Location Installation must allow for a sufficient flow of fresh air for the combustion air supply.
  • Page 10: Clearances

    Installation and Operation Instructions Installation Clearances NOTE: Only non-combustible materials can be used in close proximity to this appliance. Combustible Surface Non Combustible Surface Left / Right Hand Side 250mm Rear 250mm Assembly NOTE: • This appliance is assembled before delivery except feet. •...
  • Page 11 Installation and Operation Instructions Installation Check that the gas operating pressure. NOTE: The operating pressure to be measured at the manifold test point and with 2 burners operating at the ‘High Flame’ setting. Turn off the mains gas supply and bleed the gas out of the appliance gas lines. Turn on the gas supply and the appliance.
  • Page 12: Operation

    Installation and Operation Instructions Operation Operation Guide CA UTION: • This appliance is for professional use and is only to be used by qualified persons. • Only authorized service persons are to carry out installation, servicing or gas conversion operation operations.
  • Page 13 Installation and Operation Instructions Operation 1. Lighting the Main Burners The hot plates are fitted with individual standing pilots for each open burner which allows the main burners to be turned ON- OFF without the need to manually re-light the burner each time that it is turned ON, as the burner will be automatically lit itself by the pilot burner.
  • Page 14 Installation and Operation Instructions Operation Main burner air supply: 1. For efficient burner operation, a proper balance of gas volume and primary air supply must be maintained which will result in complete combustion. Insufficient air supply results in a yellow streaming flame.
  • Page 15: Cleaning And Maintenance

    Installation and Operation Instructions Cleaning and Maintenance CA UTION: Always turn off the gas supply before cleaning. This appliance is not water proof. Do not use water jet spray to clean this appliance. GENERAL Clean the Gas Cook Top regularly. A clean Gas Cook Top looks better, will last longer and will perform better.
  • Page 16 Installation and Operation Instructions Cleaning and Maintenance Trivets and Burners Pic1 a. Remove the trivets from the top of the appliance (Refer to pic1). b. Remove the burner from the top of the bracket of appliance (Refer to Pic2). c. The trivets and burners should be cleaned with a mild detergent and hot water solution using a soft bristled brush.
  • Page 17: Trouble Shooting

    Installation and Operation Instructions Trouble Shooting This section provides an easy reference guide to the more common problems that may occur during the operation of your equipment. The fault finding guide in this section is intended to help you correct, or at least accurately diagnose problems with your equipment.
  • Page 18: Replacement Parts List

    Installation and Operation Instructions Replacement Parts List IMPORTANT: Only genuine authorized replacement parts should be used for the servicing and repair of this appliance. The instructions supplied with the parts should be followed when replacing components. For further information and servicing instructions, contact your nearest authorized service branch. When ordering replacement parts, please quote the part number and the description listing below.
  • Page 19: Explosion Drawing

    Installation and Operation Instructions Explosion Drawing MHN-24-F...
  • Page 20: Spare Parts List

    Installation and Operation Instructions Spare Parts List DESCRIPTION MODEL CODE MHN-12-F 10401.6084 Trivet MHN-24-F MHN-36-F MHN-12-F 10202.6306 M16 Gas pipe connector nut MHN-24-F MHN-36-F MHN-12-F 20726.6316 Manifold Assembly MHN-24-F 20726.6317 (Include A60U valve) MHN-36-F 20726.6318 MHN-12-F Safety Valve(A60U) MHN-24-F 10208.6021...
  • Page 21 Installation and Operation Instructions MHN-12-F Flame Device System –Front MHN-24-F 10108.6002 (No include injector) MHN-36-F MHN-12-F Flame Device System –Rear MHN-24-F 10108.6003 (No include injector) MHN-36-F MHN-12-F Burner MHN-24-F 20726.6257 MHN-36-F MHN-12-F Regulator MHN-24-F 10208.6096 MHN-36-F MHN-12-F L Connector For Manifold MHN-24-F 10202.6006...
  • Page 24 Middleby, If not, the warranty may be void. NOTICE Any parts that aren’t made by MERCURY may void warranty. NOTICE Middleby and manufacturer of Middleby keep the right to modify the product. Middleby Australia...
