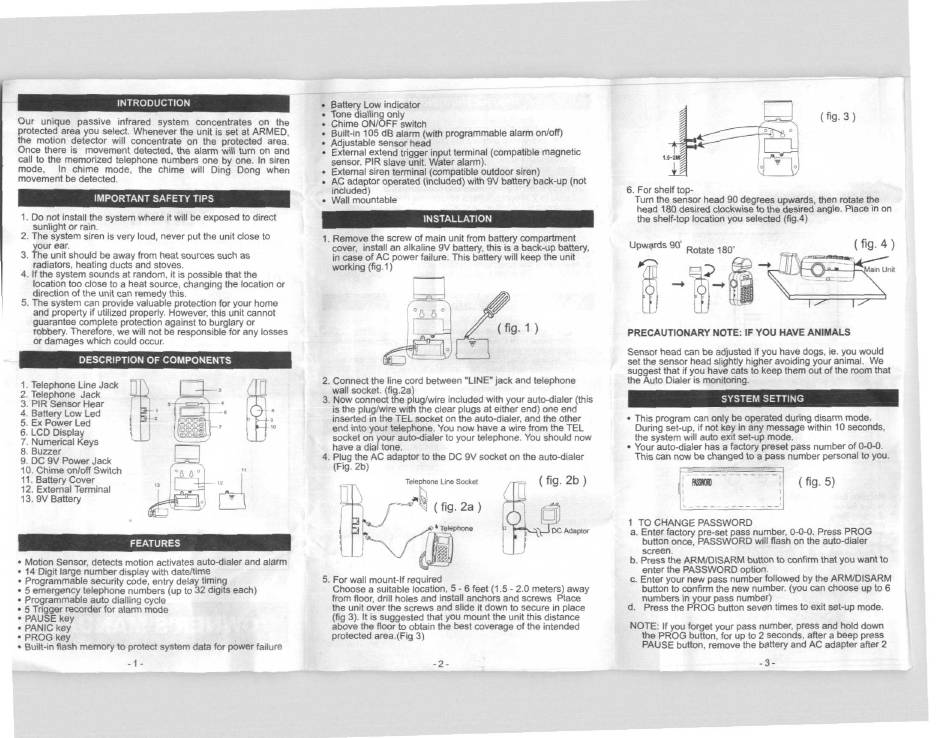

Homesafe T016 Owner's Manual

INTR OD UCTIO N
Our jnique passive in`raroC ^ys,e^ii conccotrates on the
protected area you select. Whenever the unit is set at ARMED,
the motion detector will concentrate on the protected area.
Once there is movement detected, the alarm will turn on and
call to the memorized telephone numbers one by one. In siren
mode, In chime mode, the chime will Ding Dong when
movement be detected.
.O.
1. Do not install the system where it will be exposed to direct
sunlight or rain.
2. The system siren is very loud, never put the unit close to
your ear.
3. The unit should be away from heat sources such as
radiators, heating ducts and stoves.
4. If the system sounds at random, it is possible that the
location too close to a heat source, changing the location or
direction of the unit can remedy this.
5. The system can provide valuable protection for your home
and property if utilized properly. However, this unit cannot
guarantee complete protection against to burglary or
robbery. Therefore, we will not be responsible for any losses
or damages which could occur.
1. Telephone Line Jack
2. Telephone Jack
3. PIR Sensor Hear ^^ • •
4. Battery Low Led z e
5. Ex Power Led o', liL-7 ;°
U^- i 6. LCD Display ^ S
7. Numerical Keys ^ =
8. Buzzer ^
9. DC 9V Power Jack
10. Chime on/off Switch
11. Battery Cover
12. External Terminal "
13. 9V Battery
FEATURES
• Motion Sensor, detects motion activates auto-dialer and alarm
• 14 Digit large number display with dateltime
• Programmable security code, entry delay timing
• 5 emergency telephone numbers (up to 32 digits each)
• Programmable auto dialling cycle
• 5 Trigger recorder for alarm mode
• PAUSE key
• PANIC key
• PROG key
• Buitt-in flash memory to protect system data for power failure
-1-
• Battery Low indicator
• Tone dialling only
• Chime ON/OFF switch
• Built-in 105 dB alarm (with programmable alarm on/off)
• Adjustable sensor head
• External extend trigger input terminal (compatible magnetic
sensor. PIR slave unit. Water alarm).
• External siren terminal (compatible outdoor siren)
• AC adaptor operated (included) with 9V battery back-up (not
included)
• Wall mountable
1. Remove the screw of main unit from battery compartment
cover, install an alkaline 9V battery, this is a back-up battery,
in case of AC power failure. This battery will keep the unit
working (fig.1)
o^c a
(fg 1)
2. Connect the line cord between "LINE" jack and telephone
wall socket. (fig.2a)
3. Now connect the plug/wire included with your auto-dialer (this
is the plug/wire with the clear plugs at either end) one end
inserted in the TEL socket on the auto-dialer, and the other
end into your telephone. You now have a wire from the TEL
socket on your auto-dialer to your telephone. You should now
have a dial tone.
4. Plug the AC adaptor to the DC 9V socket on the auto-dialer
(Fig. 2b)
Telephone Line Socket ( flCg. 2b )
)
fig. 2a )
^
TeiePhone b ^^I
r DC Adaptor
5. For wall mount-If required
Choose a suitable location, 5- 6 feet (1.5 - 2.0 meters) away
from floor, drill holes and install anchors and screws Place
the unit over the screws and slide it down to secure in place
(fig 3). It is suggested that you mount the unit this distance
above the floor to obtain the best coverage of the intended
protected area.(Fig 3)
-2-
' 7 ,-71 (fig.3)
°
^Y O
6. For shelf top-
Turn the sensor head 90 degrees upwards, then rotate the
head 180 desired clockwise to the desired angle. Place in on
the shelf-top location you selected (fig.4)
Upwards 90° Rotate 180
°
( ft9' 4)
Unit
---
, --1 ^^, - ^ _
PRECAUTIONARY NOTE: IF YOU HAVE ANIMALS
Sensor head can be adjusted if you have dogs, ie. you would
set the sensor head slightly higher avoiding your animal. We
suggest that if you have cats to keep them out of the room that
the Auto Dialer is monitoring.
• This program can only be operated during disarm mode.
During set-up, if not key in any message within 10 seconds,
the system will auto exit set-up mode.
• Your auto-dialer has a factory preset pass number of 0-0-0.
This can now be changed to a pass number personal to you.
P^ ( fig. 5)
1 TO CHANGE PASSWORD
a. Enter factory pre-set pass number, 0-0-0. Press PROG
button once, PASSWORD will flash on the auto-dialer
screen.
b, Press the ARMlDtSARM button to confirm that you want to
enter the PASSWORD option.
c. Enter your new pass number followed by the ARM/DISARM
button to confirm the new number. (you can choose up to 6
numbers in your pass number)
d. Press the PROG button seven times to exit set-up mode.
NOTE: If you forget your pass number, press and hold down
the PROG button, for up to 2 seconds, after a beep press
PAUSE button, remove the battery and AC adapter after 2
-3-
