Summary of Contents for Selectric Grid 360 SKIN-1

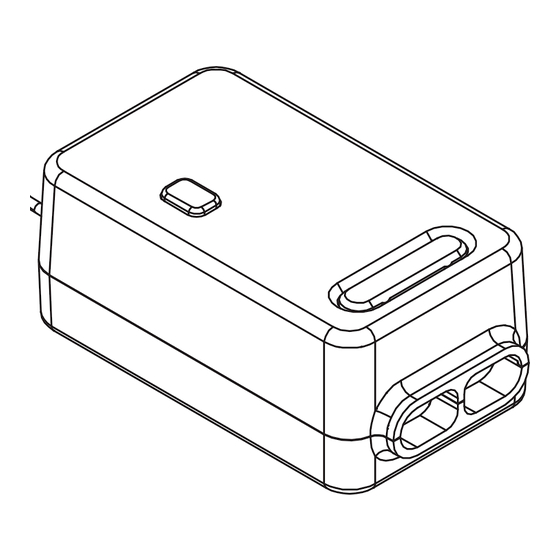

- Page 1 User Manual for Kinetic Wall Switch On/Off Receivers Product Range: SKIN-1 SKIN-2 to work with Grid 360 On-Off Kinetic Switch Range Important note: Isolate power before connecting receiver. Failure to do so can cause electric shock, fire or other hazards. v1.0.2...
-
Page 2: What Is In The Box
A. What is in the box ? B. Specifications Dimensions: Product Code: Input: SKIN-1, SKIN-2 100-240V 50/60Hz 3.3A Max. Dimming: Load: N / A LED 1.3A Max.Resistive 3.3A Max. Compatible Switch: Radio Frequency: Grid360 On-Off RF 433MHz; Kinetic Switch WiFi 2.4G for Smart Versions. IP Rating: IP20;... -
Page 3: Wiring Diagram
D. Wiring Diagram E. Installations Disconnect the mains before installation. Fix the cables to the receiver firmly. Installation must be carried out by licensed electricians. Press the Pairing Key to pair to switches. Fix the receiver by screws or sticker provided. to be continued in Pairing section. - Page 4 F. Pairing with Kinetic Switch 1. Pairing to kinetic switch - Standard method Press the Pairing Key for 3-4s, While the indicator on receiver flashes, press any key untill the RED indicator flash slowly. of Grid360 On-Off Kinetic switch once to complete the pairing.
- Page 5 H. Un-pairing H. Un-pairing Kinetic Switch Kinetic Switch Tuya App Tuya App Un-pairing from receiver Un-pairing from receiver Un-pairing from Tuya App Un-pairing from Tuya App Press 6-7s pairing key Press 6-7s pairing key Press 10-15s pairing key Press 10-15s pairing key I.
- Page 6 K. Control the On / Off Receiver via Tuya App Follow Tuya App User Manual for better experience. Scan the QR code to Tuya User Manual. L. Attention...
