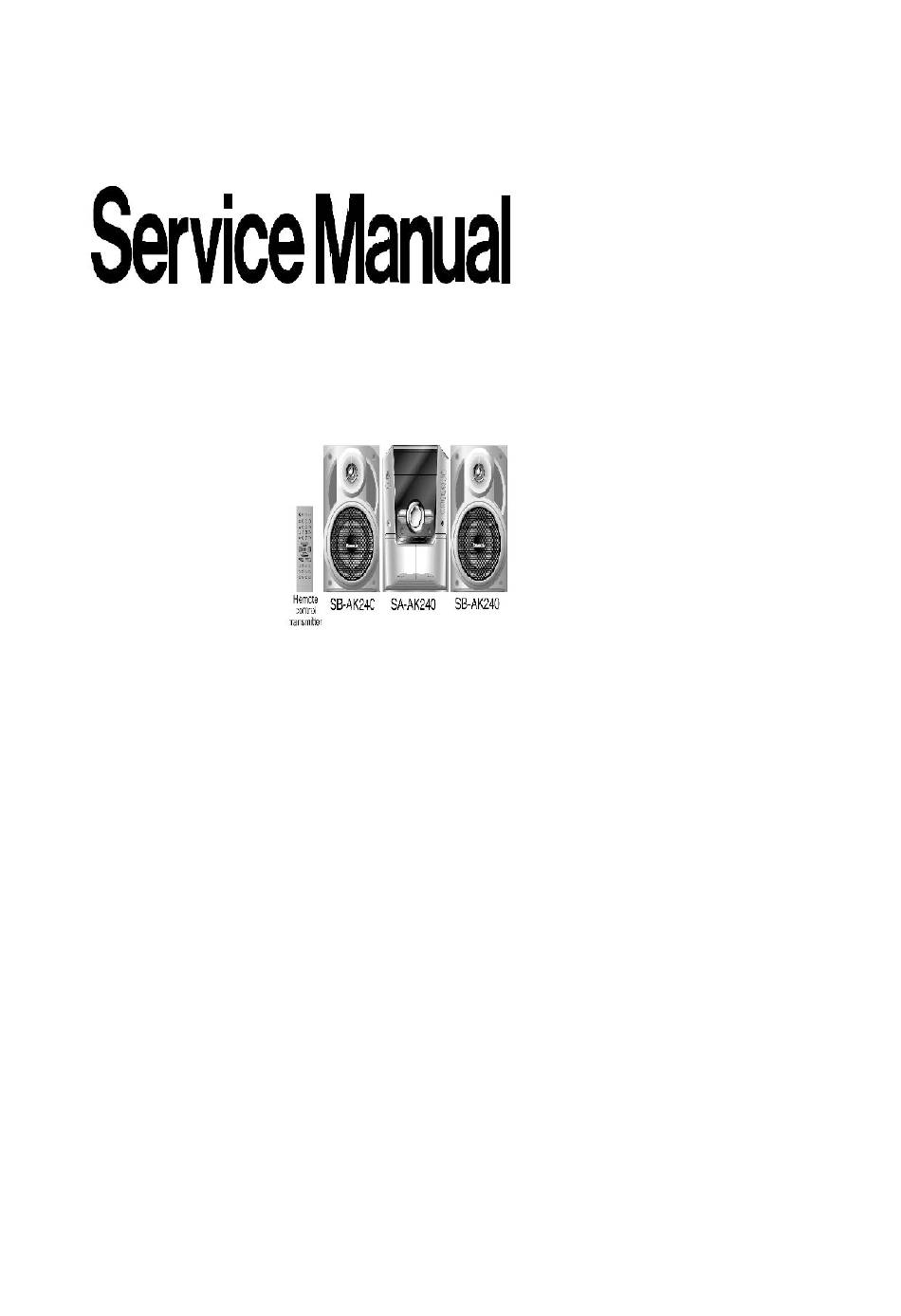

ORDER NO. MD0511411C1
A6
Speaker System
SB-AK240P
Colour
(S)... Silver Type
SPECIFICATIONS
Specification
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SB-AK240P and is the answer not in the manual?

Questions and answers

Related Manuals for Panasonic SB-AK240P

Summary of Contents for Panasonic SB-AK240P

  • Page 1 ORDER NO. MD0511411C1 Speaker System SB-AK240P Colour (S)... Silver Type SPECIFICATIONS Specification...

  • Page 2: Assembling And Disassembling

    2. Total harmonic distortion is measured by the digital spectrum analyzer. Music Center : SA-AK240P-S System : SC-AK240P-S Front Speaker : SB-AK240P-S Music Center : SA-AK240PC-S System : SC-AK240PC-S Front Speaker : SB-AK240P-S 2005 Matsushita Electric Industrial Co. Ltd.. All rights reserved.
  • Page 3 respective procedures. Special reassembly procedures are described only when required. 3. Select items from the following index when checks or replacement are required. 4. Refer to the Parts No. on the page of “Parts Location and Replacement Parts List” (Section 5), if necessary. Below is the list of disassembly sections - Disassembly of Front Panel Assembly - Disassembly of Tweeter...
  • Page 4 Step 1: Remove 4 screws from Front Panel Assembly. Step 2: Remove Front Panel Assembly from Speaker Cabinet Assembly as arrow shown. 1.3. Disassembly of Tweeter Follow (step 1) to (step 2) in item 1.2.
  • Page 5 Step 1: Detach the (+) Black, (-) Yellow wires from Tweeter. Step 2: Remove 4 screws from Tweeter. 1.4. Disassembly of Woofer Follow (step 1) to (step 2) in item 1.2.
  • Page 6 Step 1: Detach the (+) Red, (-) Black wires from Woofer. Step 2: Remove 4 screws from Woofer. 1.5. Disassembly of Speaker Cabinet Assembly Follow (step 1) to (step 2) in item 1.2. Follow (step 1) in item 1.3. Follow (step 1) in item 1.4.

  • Page 7: Connection Of The Speaker Cables

    2. Connection of the Speaker Cables - Be sure to connect speaker cables before connecting the AC power supply cord. - The load impedance of any speaker used with this unit must be 3 - Be sure to connect the cable from the right speaker to the right terminal and the cable from the left speaker to the left terminal.
  • Page 8 You cannot take the front net off the speakers. Connection Use only the supplied speakers The combination of the main unit and speakers provide the best sound. Using other speakers can damage the unit and sound quality will be negatively affected. Note - Keep your speakers at least 10 mm (13/32”) away from the system for proper ventilation.

  • Page 9: Cabinet Parts Location

    3. Connection of the Wiring Diagram 4. Cabinet Parts Location 4.1. Exploded view 4.2. Packaging...

  • Page 10: Replacement Parts List

    5. Replacement Parts List Notes : - Important safety notice : When replacing any of these components, be sure to use only manufacturer’s specified parts shown in the parts list. - [M] markings in the Remarks columns indicates parts supplied by PAVCSG.
  • Page 11 Ref. No. Part No. Part Name & Description Remarks CABINET AND CHASSIS RYBX0128-S FRONT PANEL ASS’Y RYKX0314-S SPK CABINET ASS’Y RGNX0319-K SPEC SHEET RKA0072-KJ LEG CUSHION XTB4+10JFJ SCREW XTB4+16AFJK SCREW CAPACITOR ECA1HAY2R2S 2.2uf 50V PACKING MATERIALS RPNX0350 POLYFOAM SET RPFX0108-2 MIRAMAT BAG SPEAKERS EAS16PL725A...
