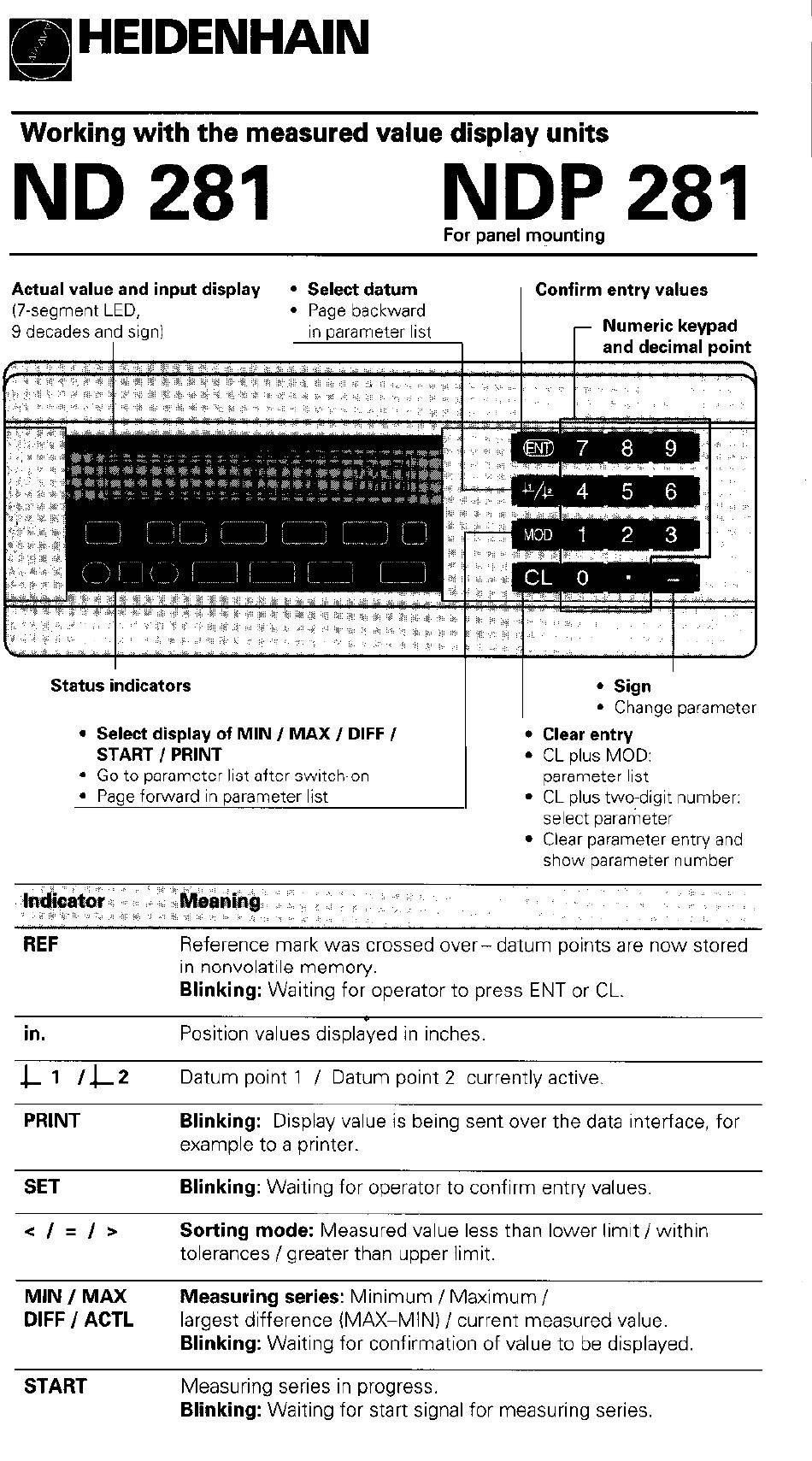

Working with the measured value display units
ND 281 NDP 281
For panel mounting
Actual value and input display
* Select datum Confirm entry values
17.segment LED,
* Page backward
9 decades and sign) in parameter list
r
Numeric keypad
and decimal ""in
I
Status indicators
* Select display of MIN I MAX I DIFF I
START / PRINT
* Go to paramerer list after switch-on
* Page forward in paramerer list
I
* Change parameter
f Clear entry
- CL plus MOD:
parameter list
* CL plus two~digit number:
select parameter
* Clear parameter enrry and
show parameter ""mber
REF
Reference mark was crossed over- datum points are now stored
in nonvolatile memory.
Blinking:
Waiting for operator to press ENT or CL.
in.
Position values displayed in inches
Cl
IA-2
Datum point 1 / Datum point 2 currently active.
PRINT Blinking:
Display value is being sent over the data interface, for
example to a printer.
SET Blinking:
Waiting for operator to confirm entry values
</=I> Sorting
mode: Measured value less than lower limit I within
tolerances I greater than upper limit.
MIN I MAX
DIFF I ACTL
Measuring series:
Minimum /Maximum I
largest difference (MAX-MINI I current measured value.
Blinking:
Waiting for confirmation of value to be displayed.
START
Measuring series in progress.
Blinking:
Waiting for start signal for measuring series.
