Klotz VZ 5000 User Manual

Digital conference system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Digital Conference System
VZ 5000
USER MANUAL V3.1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VZ 5000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Klotz VZ 5000

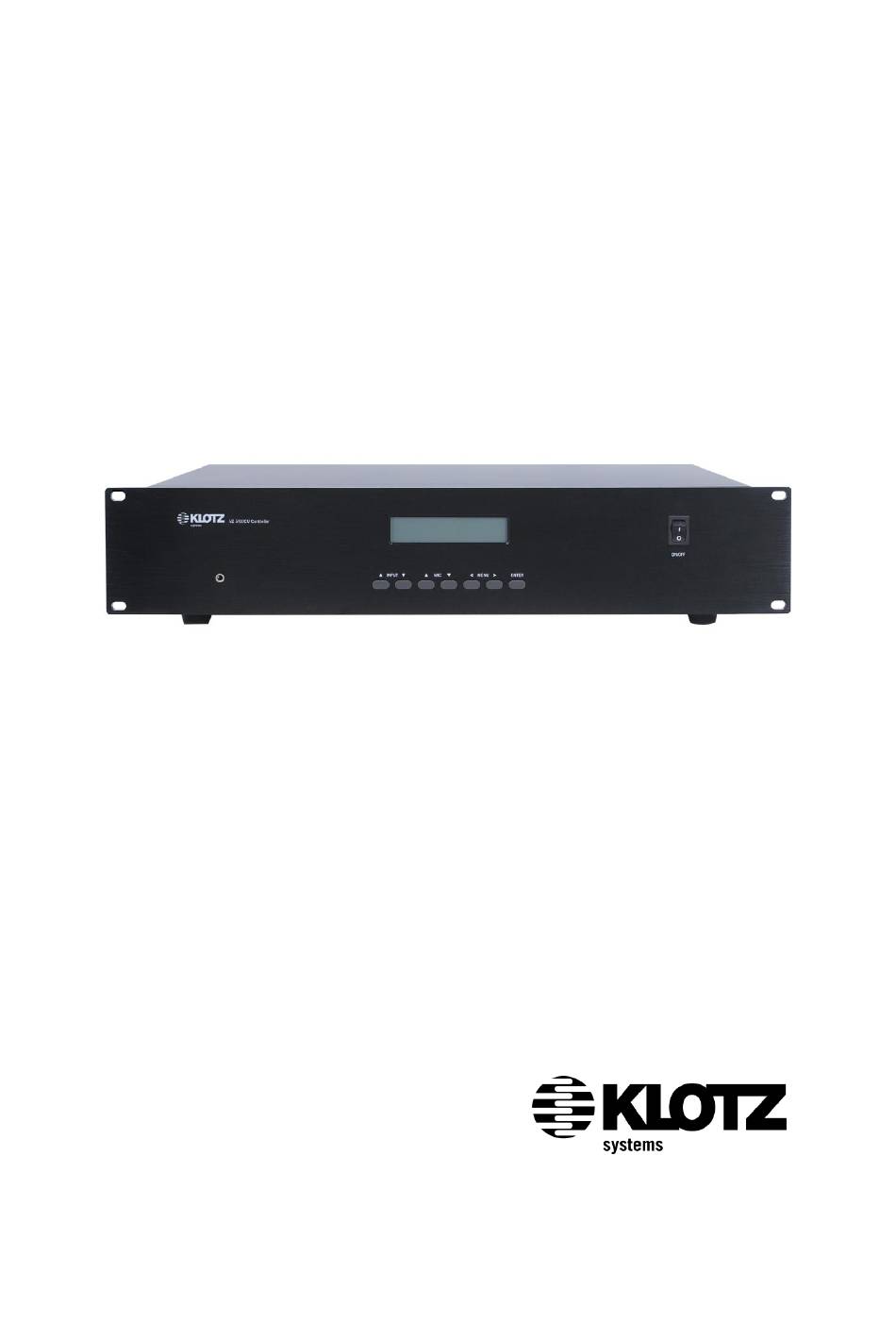

  • Page 1 Digital Conference System VZ 5000 USER MANUAL V3.1.0...
  • Page 2 Conference System VZ 5000 Conference System – VZ 5000 - User Manual May. 2010 This is product information of the Conference System VZ 5000 by KLOTZ system GmbH. Number of this document: see footer. You must always obtain express written permission from KLOTZ system GmbH before reproducing this documentation in whole or in part.

  • Page 3: Table Of Contents

    1.2. Ventilation System ..................10 VZ 5000 Conference Discussion System Introduction ........11 2.1. Applications ....................11 Overview of All VZ 5000 System Components ........... 13 3.1. VZ 5100CU Central Controller ..............13 3.2. Discussion Units ................... 13 3.3. Optional Accessories..................13 VZ 5100CU Central Controller ................

  • Page 4: Safety Instructions And Reader's Information

    Conference System VZ 5000 PLEASE MAKE SURE TO READ THIS MANUAL CAREFULLY BEFORE TAKING VZ 5100CU CONTROLLER INTO OPERATION SAFETY INSTRUCTIONS AND READER’S INFORMATION There is a certain hierarchy of warnings in this manual. The warnings are printed in bold letters and are marked by a warning sign at the margin.

  • Page 5: General Safety Instructions

    Conference System VZ 5000 General Safety Instructions 1. Read all instructions. Read all supplied to your facility, consult your safety and operating instructions before local power company. operating the product. 2. Retain all instructions. Retain all 11. Voltage select switch. Ensure that...
  • Page 6 Conference System VZ 5000 push objects of any kind into this product f. When the product exhibits a distinct through openings as they may touch change performance. This dangerous voltage points or short out indicates a need for service. parts, which could result in a fire or Replacement parts.
  • Page 7 ⚫ E3 (urban outdoors) ⚫ E4 (controlled EMC environment, e.g. broadcast studio) All KLOTZ products have been developed, produced and tested accurately and according to the above named directives. NOTE! Improper handling of HF equipment like radio transceivers and mobiles can cause radio interferences on KLOTZ devices.

  • Page 8: Warning Symbols On Equipment

    This symbol indicates the presence of electric shock hazards. Enclosures marked with these symbols should only be opened by a KLOTZ DIGITAL authorized service provider. WARNING! To avoid risk of injury from electric shock, do not open this enclosure.

  • Page 9: Precautions - Vz 5100Cu Central Controller

    Conference System VZ 5000 1. Precautions – VZ 5100CU Central Controller 1.1. General Handling of Cards In order to prevent injuries to persons and damage to the system consider the following directions: ◆ The assembly, disassembly and handling of control surface components must be carried out exclusively by qualified personnel.

  • Page 10: Ventilation System

    Conference System VZ 5000 solvents or corrosive gases ◆ Avoid leaving the VZ 5100CU Controller and its components in direct sunlight or near heat sources If there are heat sinks inside or outside the VZ 5100CU Controller, they can reach a temperature of more than 60°...

  • Page 11: Vz 5000 Conference Discussion System Introduction

    2.1. Applications The VZ 5000 system is one of the latest and most compact conference systems for commercial applications. By using the state-of-the-art technologies and numerous groundbreaking developments the VZ 5000 system can be used everywhere where flexibility and, above all, operational safety play an important role.
  • Page 12 Conference System VZ 5000 • Convention Center • Stadium • Department Store ..and many more! © KLOTZ Systems Specifications are subject to change without notice...

  • Page 13: Overview Of All Vz 5000 System Components

    Conference System VZ 5000 3. Overview of All VZ 5000 System Components 3.1. VZ 5100CU Central Controller ◆ Control of up to 1000 of microphones by linking up to ten VZ 5100CU controllers ◆ Multi operation modes ◆ Gain adjustment available ◆...

  • Page 14: Vz 5100Cu Central Controller

    VZ 5100CU has high quality housing with oxidation brushed finished. It can be rack mounted (19"-2HE). The maximum number of Chairman Microphone for VZ 5000 system is 10. They can be positioned anywhere among the system units in the chains.

  • Page 15: Front Panel

    Conference System VZ 5000 4.1. Front Panel Button 1&2: MENU These buttons are used to scan the menu with step the markers < > left and right respectively for each push. Button 3: ENTER This button is used to enter the menus and select a chosen value.

  • Page 16: Rear Panel

    Conference System VZ 5000 4.2. Rear Panel Connector 1: Power Connector Connector 2&3: Microphone Bus 1&2 These connectors are for microphone daisy bus. Each bus can connected 50 microphones. Connector 4&5: Next & Previous VZ 5100CU These connectors are used for connect to next & previous central units when expand the system.

  • Page 17: Installation

    Conference System VZ 5000 4.3. Installation Installation is extremely easy. Just plug the first microphone into the central controller and connection all microphones. The system is daisy chain connection. Each microphone connects to the previous one. Basically system installation This is an application of signal chain. And the microphone volume controlled by the central controller.

  • Page 18: Display Functions

    Conference System VZ 5000 4.4. Display Functions LCD Display Content Features Power ON After finished system connection, switch power on the central controller. Then the controller will search for the system units in KLOTZ VZ-Line V3.0.1 the buses with 15 seconds. The LCD display will show system version as nearside.
  • Page 19 Conference System VZ 5000 STATUS Menu: Status menu shows current status of the system. CM:1/2 1 for Chair microphone connected to the controller CM:1/2 DRIVENS:3 2 for Chair microphones connected in the system. BUS1:25 BUS2:0 Drivens:3 Indicate there are 3 driven controllers...

  • Page 20: Vz 5110Cm/5120Dm Portable Microphones

    The portable microphone units are microcomputer controlled conference units with loudspeaker, which is automatically switched off when the microphone is activated. Connected with KLOTZ gooseneck microphone, it’s completely conference unit. The units have 2 m cable for daisy chain connection.

  • Page 21: Vz 5210Cm/5220Dm/5920Dm/5230Mu Flush Mount Components

    Conference System VZ 5000 VZ 5210CM/5220DM/5920DM/5230MU Flush Mount Components VZ 5000 has flush mount microphone units, which include flush panel and electronic boxes. They have the same microphone function with portable microphone units. Connected with KLOTZ gooseneck microphone, it’s completely conference unit (VZ 5920DM does not require gooseneck microphone).

  • Page 22: Vz 5920Dm Hidden Interface Microphone Features

    Conference System VZ 5000 6.3. VZ 5920DM Hidden Interface Microphone Features ⚫ High fidelity microphone dynamic adjustment ⚫ The exquisite compact microphone and hidden pop-ups make the conference table clean and tidy. ⚫ Light touch speaker button, bright LED indicates speaking status ⚫...
  • Page 23 Conference System VZ 5000 ⚫ VZ 5920DM hidden interface microphone Please refer to the figure below to install the dimensions. Digging a circular holes that the diameter of 33mm. Place the VZ 5920DM into the mounting hole, adjust the direction, then tighten the supplied fastening nut, and finally connect the electrical box to complete the installation.

  • Page 24: Vz 514Xgm/515Xgm Gooseneck Microphone

    Conference System VZ 5000 7. VZ 514xGM/515xGM Gooseneck Microphone VZ 514xGM/VZ 515xGM Gooseneck Microphone is connected with all KLOTZ conference discussion units and interpreter unit. 7.1. VZ 514xGM/VZ 515xGM Gooseneck Microphone Features ⚫ High fidelity microphone cartridges ⚫ Cardioid pattern * ⚫...

  • Page 25: System Installation Guide

    To obtain best performance it is recommended only to use 2 m of ribbon cable per unit. Only KLOTZ VZ 5090 special extension cable can be used. The maximum cable length between any two units connected together is 100 m and the total cable length in one chain must not exceed 200 m (which includes the 2 m cable on each portable unit).

  • Page 26: Pin Assignments And Cable Making

    Conference System VZ 5000 8.3. Pin Assignments and Cable Making ⚫ VGA 15pins for microphone bus: ⚫ RS-232 9pins for external device: Cable between 2 DB9 female connectors must be less than 10m. © KLOTZ Systems Specifications are subject to change without notice...
  • Page 27 Conference System VZ 5000 ⚫ RS-422 9pins for external device: Cable between PC and RS-422 must be less than 1000m. ⚫ XLR balance Line in/ Line out: © KLOTZ Systems Specifications are subject to change without notice...
  • Page 28 Conference System VZ 5000 ⚫ Link cable between two VZ 5100CU controller: Cable between two VZ 5100CU must be less than 250m. © KLOTZ Systems Specifications are subject to change without notice...

  • Page 29: Specifications Of Vz 5100Cu

    Conference System VZ 5000 9. Specifications of VZ 5100CU Indicators and operating elements (front side) Display with push buttons: Monochrome, graphics-capable LC display, 16 x 100 pixels, green backlight; 7 push buttons to carry out system settings and selections Power switch:...
  • Page 30 Conference System VZ 5000 Line in to LS out 130Hz~13KHz Distortion: < 0.1% Dynamic range: 100 dB typ., 95 dB min. @ RMS, A-weighted S/N ratio: > 87dBA 5 ℃ to 45 ℃ (20 to 95% humidity) Temperature to guarantee specified performance: -20 ℃...

  • Page 31: System Components Description And Order Number

    Female connector, 15pins, pure copper with gold VZ 5181CF 11 500 5181 plated VZ 5090CB Cable, round-per 100m, for VZ 5000 series 11 500 5090 VZ 5090-02CB 2m cable for extension, w/ 15P connector each side 11 500 5090-02 VZ 5090-05CB...
