GoSmart Wi-Fi garage module
Table of Contents
Safety instructions and warnings ........................................................................................... 2
Contents of the package ........................................................................................................ 3
Technical Specifications .......................................................................................................... 3
Description of the device ....................................................................................................... 4
Installation and assembly ....................................................................................................... 5
Controls and functions ......................................................................................................... 11
Compatible models .............................................................................................................. 13
Troubleshooting FAQ ........................................................................................................... 28
1
Advertisement
Table of Contents
Related Manuals for Emos GoSmart H5111
Summary of Contents for Emos GoSmart H5111
-
Page 1: Table Of Contents
H5111 GoSmart Wi-Fi garage module Table of Contents Safety instructions and warnings ................... 2 Contents of the package ......................3 Technical Specifications ......................3 Description of the device ....................... 4 Installation and assembly ....................... 5 Controls and functions ......................11 Compatible models ...................... -
Page 2: Safety Instructions And Warnings
Before using the device, read the instructions for use. Observe the safety instructions in this manual. EMOS spol. s r.o. declares that the products H5111 are in conformity with the essential requirements and other relevant provisions of the directives. The equipment can be operated freely in the EU. -
Page 3: Contents Of The Package
Package contents Switching module Manual Magnetic sensor Technical Specifications Power: AC 100-240 V 50/60 Hz Dimension: 40 × 40 × 18 mm Net weight: 30 g App:EMOS GoSmart for Android and iOS Communication protocol:Wi-Fi IEEE 802.11b/g/n 2.412GHz-2.484GHz... -
Page 4: Description Of The Device

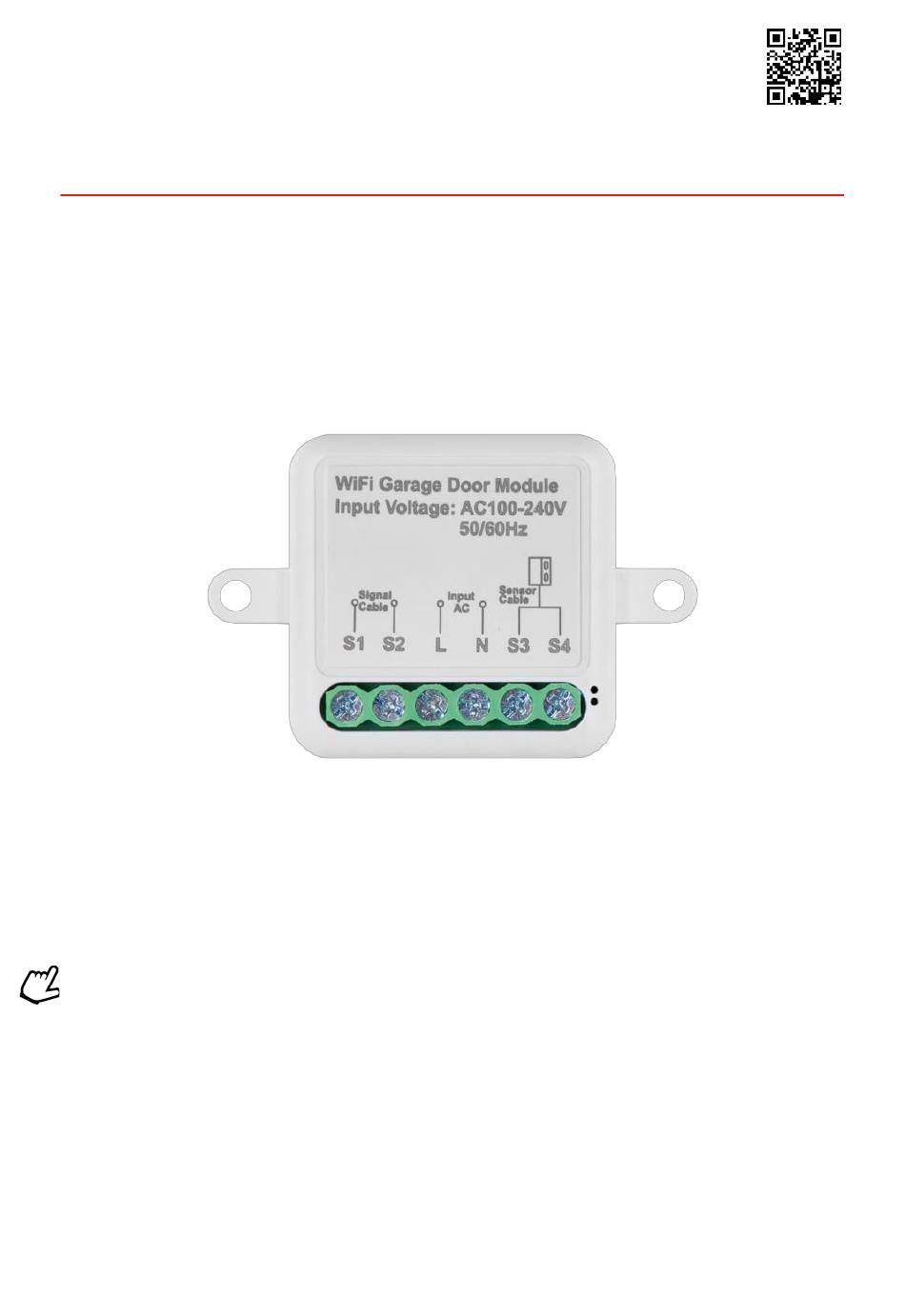

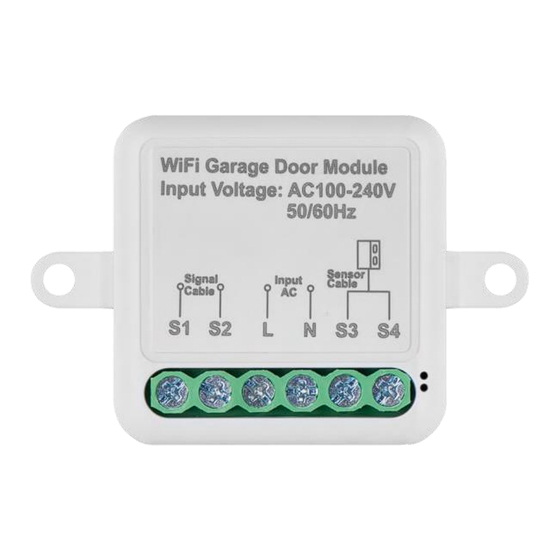

Description of the device 1 - RESET button 2 - Holes for mounting 3 - Wiring diagram of the relevant module 4 - LED status light • Flashing blue - Device is in pairing mode / has disconnected from the network •... -
Page 5: Installation And Assembly
Installation and assembly Place the connected module in the installation box under the switch. Thanks to the possibility of fixing, the module can also be installed in various other places (e.g. under plasterboard, in the ceiling...) The wiring diagram can be found below. For functional and safety reasons, it is essential that all cables connected to this module are stripped at the end with a length of 7 mm. - Page 6 Wiring diagram The connection depends on the possibilities of the garage and the garage opener. The first step is to check the compatibility of the garage module with the opener. If you already have a physical door opener installed, the module will be compatible.
- Page 7 Compatibility verification Check that your garage opener is listed in the "Compatible Models" table at the end of this document. If not, follow the procedure below: 1. Garage door openers with a yellow or purple "Learn" button are unlikely to work. Openers with this feature are usually limited to opening with remotes, not an external button.
- Page 8 Plug the sensor cable into the appropriate terminals on the module (S3,S4). Pairing with an application Installing the EMOS GoSmart app • The app is available for Android and iOS via Google play and the App Store. • Please scan the QR code to download the app.
- Page 9 Open the EMOS GoSmart app and confirm the privacy policy and click I agree. Select the registration option. Enter the name of a valid email address and choose a password. Confirm your consent to the privacy policy. Select register. Pairing with an app Select Add device.
- Page 10 Reset the module by holding the RESET button for 5 seconds and check that the LED is flashing. An automatic device search will take place. After successful pairing, the app displays a confirmation screen. Use the pencil icon to name the module according to your needs.
-
Page 11: Controls And Functions
Controls and functions Icons and indicator lights 1 - Extension settings (Described in more detail in the following chapter) 2 - Displaying the current status (Open/Closed) 3 - Control button 4 - Record 5 - Planning 6 - Timer 7 - Settings (Setting the password for Google assistant and door travel time) - Page 12 Description of extension settings • Third-party Control - Alexa and Google Assistant settings • Device information - Basic information about the device and its owner • Tap-to-Run and Automation - View scenes and automations assigned to the device. Creation of scenes is possible directly in the main menu of the application in the section "Scenes".
-
Page 13: Compatible Models
Compatible models... -
Page 28: Troubleshooting Faq
However, you will not be able to control the modules through the app until the Wi-Fi network is up and running. The exception to this is ZigBee modules that can still be controlled remotely with other ZigBee devices, such as the EMOS H5011 Scenic Switch, even after an internet outage.
