Flyron Technology Co., Ltd.

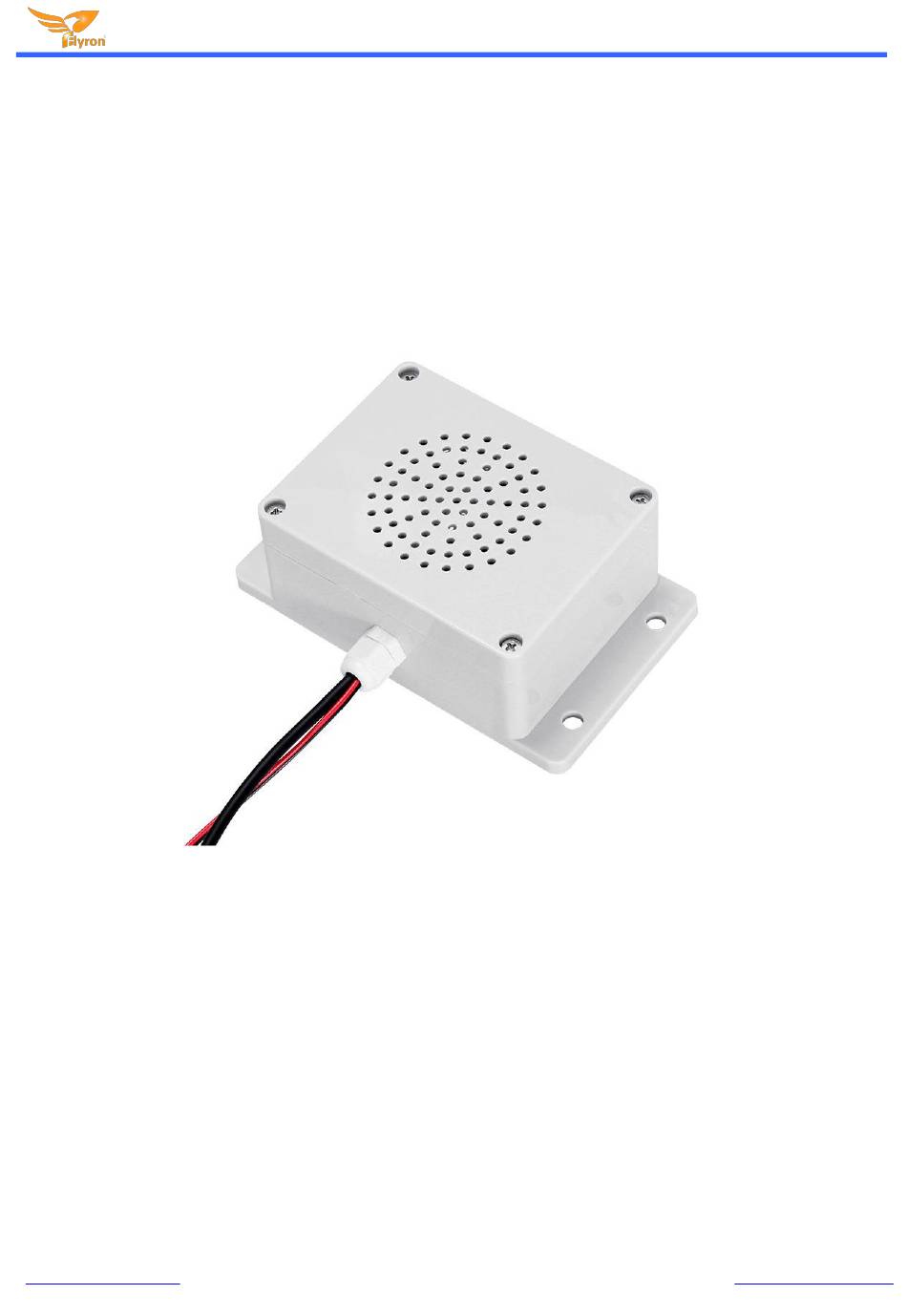

Weatherproof Triggerable Audio Player for Outdoor Use
1. Features
Adopts industrial grade ABS plastic enclosure.
Built-in high quality MP3 player sound board.
The function/trigger mode of each input port can be set individually through a config file.
Support 7 main trigger modes and 5 assistant trigger modes.
Built-in 8Mbytes flash memory by default, and supports max. 32GB micro SD card.
Able to update audio files through connecting the micro USB port from the internal sound board to computer.
-It will be detected as a USB flash drive on computer.
-When there is an inserted micro SD card on the board, the computer reads the micro SD card directly. In the same
way, the device will directly play the sound from the micro SD card.
Built-in high quality class D amplifier and 5W speaker.
Adjustable sound volume through the small blue potentiometer on the internal sound board, and also possible to
connect with external buttons to adjust volume.
www.flyrontech.com
FN-AS115 Weatherproof Triggerable Audio Player
User's Manual V1.0
Model No.: FN-AS115
1
E-mail: info@flyrontech.com
Advertisement
Related Manuals for Flyron FN-AS115
Summary of Contents for Flyron FN-AS115
- Page 1 Flyron Technology Co., Ltd. FN-AS115 Weatherproof Triggerable Audio Player Weatherproof Triggerable Audio Player for Outdoor Use User’s Manual V1.0 Model No.: FN-AS115 1. Features Adopts industrial grade ABS plastic enclosure. Built-in high quality MP3 player sound board. The function/trigger mode of each input port can be set individually through a config file.
-
Page 2: Technical Parameters
Flyron Technology Co., Ltd. FN-AS115 Weatherproof Triggerable Audio Player Industrial grade design and strong anti-jamming capability. Dimensions: 152 x 91 x 60 mm 2. Technical Parameters Working voltage: DC 12V-24V Working current: ≥1000mA Standby current: ≤10mA ... - Page 3 Flyron Technology Co., Ltd. FN-AS115 Weatherproof Triggerable Audio Player Parameter Corresponding Trigger Mode Pulse Interruptible Hold and Play in Loop Pulse Non-interruptible Hold and Play Once All in Loop Play Next in Associated Folder Single in Loop Play/Pause Previous Next...
- Page 4 Flyron Technology Co., Ltd. FN-AS115 Weatherproof Triggerable Audio Player All in Loop: In this mode, a single negative/positive pulse will start playback. Press the button and it’s able to play all the audio files in the storage device one by one in loop. During playback, if the the same button is pressed again, the playback will be stopped.
- Page 5 Flyron Technology Co., Ltd. FN-AS115 Weatherproof Triggerable Audio Player 3.2. Audio Files Updating There is a micro USB socket on the board, and users can connect it to computer through an Android phone purposed USB cable to load audio files and config file. The built-in flash memory or a micro SD card will be detected and displayed as a USB flash drive on computer.
- Page 6 Flyron Technology Co., Ltd. FN-AS115 Weatherproof Triggerable Audio Player 2). Any of the 5 assistant trigger modes (from “7” to “B”) can be set for any of the 4 trigger input ports as well. 3.2.2. Files Loading Method for Triggering Mode 5 The trigger mode 5 (Play Next in Folder) is a special feature of this player that is able to meet some special applications.
- Page 7 Flyron Technology Co., Ltd. FN-AS115 Weatherproof Triggerable Audio Player 5). Safely remove the device from computer. 6). Apply power to the device and push any of 4 buttons to play back a sound from the associated folder. 3.3. Examples of Wiring Connection www.flyrontech.com...
