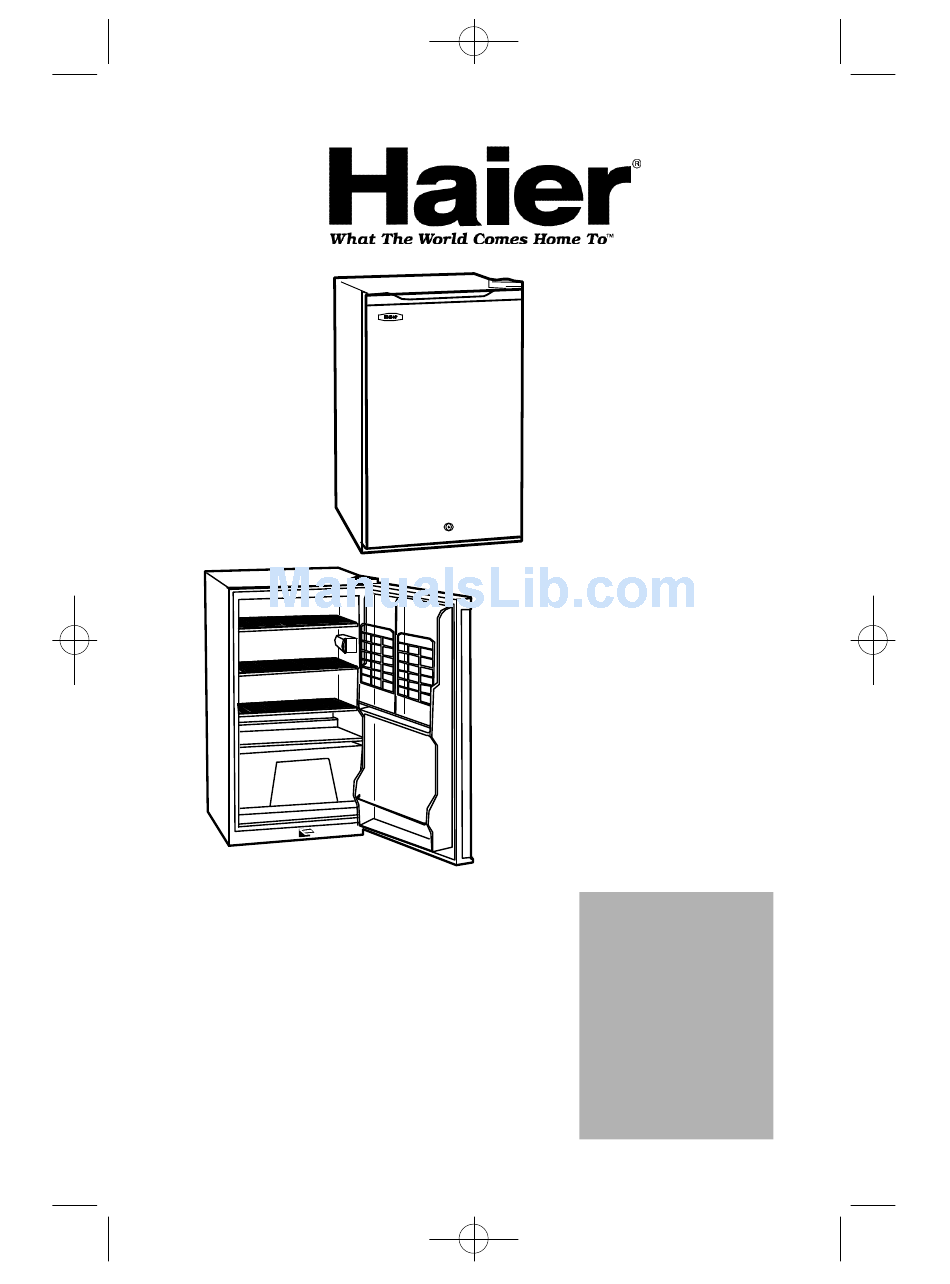

HRQ04WNA/HRQ04GNB
10/22/01
User Manual-
(Features may vary per model)
Guide de l'Utilisateur-
(Les caractéristiques peuvent
varier en fonction du modéle)
Manual del Usuario-
(Las funciones pueden
variar según el modelo)
12:23 PM
Page 1
Model #
Modèle
Para Modelo de
Compact
Refrigerator
Réfrigérateur
Compact
Refrigerador
Compacto
HRQ04WNA
HRQ04GNB
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Haier HRQ04GNB - 06-01
Summary of Contents for Haier HRQ04GNB - 06-01
-
Page 1: User Manual
Page 1 Compact Refrigerator Réfrigérateur Compact Refrigerador Compacto User Manual- Model # (Features may vary per model) HRQ04WNA Guide de l’Utilisateur- Modèle (Les caractéristiques peuvent varier en fonction du modéle) HRQ04GNB Manual del Usuario- Para Modelo de (Las funciones pueden... -
Page 2: Safety Precautions
When using this appliance, always exercise basic safety precautions, including the following: 1) Use this appliance only for its intended purpose as described in this use and care guide. 2) This refrigerator must be properly installed in accordance with the installation instructions before it is used. - Page 3 Serial number Remember to record the model and serial number. They are on a label in Date of purchase back of the refrigerator. Staple your receipt to your manual. You will need it to obtain warranty service.
-
Page 4: Table Of Contents
Dispense-A-Can™................11 Light....................11 Crisper....................12 Retainer Bar ..................12 Lock and Key ..................12 Food Storage Information ..............13 Normal Operating Sounds..............13 Proper Refrigerator Care and Cleaning ........14 Cleaning and Maintenance ..............14 Power Interruptions ................15 Vacation and Moving Car e ..............15 Troubleshooting................16 Warranty Information ..............18... -
Page 5: Parts And Features
10/22/01 12:23 PM Page 5 English Parts And Features 1. Adjustable Temperature 5. Adjustable Front Leveling Leg Control and Light (not shown) 2. “Dispense-A-Can™” can storage 6. Crisper and Crisper Cover 3. Fixed Door Shelf to 7. 1 Slide-Out Shelf and... -
Page 6: Installing Your Refrigerator
After properly placing your refrigerator in its final position, you can level your refrigerator. • Leveling legs can be adjusted by turning them clockwise to raise your refrigerator or by turning them counterclockwise to lower your refrigerator. -
Page 7: Electrical Requirements
• Make sure there is a suitable power Outlet (115 volts, 15 amps outlet) with proper grounding to power the refrigerator. • Avoid the use of three plug adapters or cutting off the third grounding in order to accommodate a two plug outlet. This is a dangerous practice since it provides no effective grounding for the refrigerator and may result in shock hazard. -
Page 8: Door Alignment
2. Remove the top hinge cover. 3. Loosen the top hinge screws using a phillips head screwdriver. 4. Adjust the door or put a spacer in between and then tighten the screws. 5. Replace the top hinge cover. fig. # 1... -
Page 9: Door Reversal
Insert and tighten the screws.(see fig. # 3) 8. Align the bottom hole on the left side of the door with the pin of the lower hinge and slide into place. - Page 10 Page 10 English 9. Align the pin of the top hinge with top hole on the left side of the door and push into place. Replace the screws in the upper hinge bracket but do not tighten all the way.
-
Page 11: Refrigerator Features And Use
(Shelves will vary per model purchased) To remove or replace a full-width slide-out shelf: (see fig. # 4) 1. Gently tilt the shelf up and slide forward until the shelf has been completely removed. 2. To replace the shelf, gently slide the shelf back. -
Page 12: Dispense-A-Can
• Your refrigerator is equipped with the convenient “Dispense-A-Can™” compartment. Each compartment will hold up to four cans. Simply load the cans from the top. To dispense a can, simply draw one out from the bottom. It is that easy. -
Page 13: Crisper
12:23 PM Page 13 English Crisper • Your refrigerator has a crisper. To remove the crisper, grab it firmly and pull out. Slide back in to replace it (see fig. # 7). fig. # 7 Bottom Shelf Retainer Bar • To use, remove crisper and crisper cover and insert the retainer bar in existing slots (see fig. -
Page 14: Food Storage Information
Food Storage Information Fresh Food • When storing fresh food, which is not prepackaged, be sure to wrap or store food in airtight and moisture proof material unless otherwise noted. This will ensure proper shelf life and prevent the transfer of odors and tastes. -
Page 15: Proper Refrigerator Care And Cleaning
Use sponge or soft cloth, dampened with the cleaning solution, to wipe down your refrigerator. • Rinse with clean warm water and dry with a soft cloth. • Do not use harsh chemicals, abrasives, ammonia, chlorine bleach,concentrated detergents, solvents or metal scouring pads. -
Page 16: Power Interruptions
Power Interruptions • Occasionally there may be power interruptions due to thunderstorms or other causes. Remove the power cord from AC outlet when a power outage occurs. When power has been restored, replug power cord to AC outlet. If outage is for a prolonged period, inspect and discard spoiled food in refrigerator. -
Page 17: Troubleshooting
• Check if thermostat control is not in the “OFF” position. • Check if refrigerator is plugged in. • Check if there is power at the ac outlet, by checking the circuit breaker. Food temperature appears too warm • Frequent door openings. -
Page 18: Hrq04Wna/Hrq04Gnb 10/22/01 12:23 Pm
• Prolonged or frequent door openings. • Check door gaskets for proper seal. Refrigerator has an odor: • Interior needs cleaning. • Foods improperly wrapped or sealed are giving off odors. Refrigerator door does not shut properly: • Level the refrigerator. • Re-align refrigerator door. -
Page 19: Warranty Information
What will be done? or consequential damages, so the above limitations may not apply to you. Some 1. We will repair or replace, at our dis- States do not allow limitations on how cretion any mechanical or electrical long an implied warranty lasts, so the part which proves to be defective in above limitations may not apply to you. - Page 20 IMPORTANTE No regrese este producto a la tienda Si tiene algún problema con este producto, por favor contacte el "Centro de Servicio al Consumidor de Haier" al 1-877-337-3639 (Válido solo en E.U.A). NECESITA UNA PRUEBA DE COMPRA FECHADA PARA EL SERVICIO DE LA GARANTIA...
