Summary of Contents for ELPRO LIBERO CE-BLE

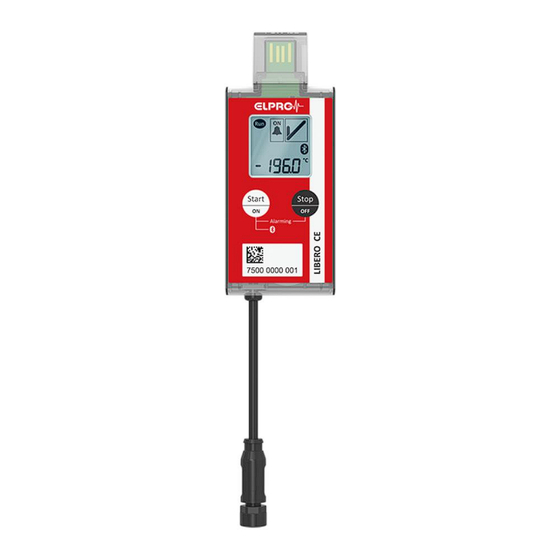

- Page 1 LIBERO CE/CL/CH-BLE ® Multilevel-PDF-Logger with USB and Bluetooth interface Operation Manual PM | WU LIBERO Cx BLE_Operation Manual_EN | Page 1 / 70...
-
Page 2: Table Of Contents
LIBERO PDF Report ......................... 24 Technical Specifications........................26 5 Accessories ............................27 External Pt100 probes for LIBERO CE-BLE ..................27 Cryogenic shipments and storage ....................27 Dry ice shipments and storage ....................29 Freezer / fridge / ambient shipments and storage ..............30 Extension of sensor cables ...................... - Page 3 Version history Version Date Author Description 17. February 2021 Armin Feurstein Document created 21. March 2022 Armin Feurstein Update firmware release v9.14 29. May 2024 Armin Feurstein Update firmware release v9.21 & App v3.0.0 This actual version of operation manual describes features and functionalities of LIBERO CE/CL/CH-BLE PDF loggers (in all model variants) of firmware version v9.21 (Dec.
-
Page 4: Safety Instructions
Material safety data sheets according to provisions of directive 91/155/EEC and shipping information are available from ELPRO-BUCHS AG. Do not subject the batteries to mechanical stress nor dismantle them. The leaking battery fluid is highly corrosive and can generate severe heat when it comes into contact with moister or it can ignite fire. -
Page 5: Quick Start Guides
2 Quick Start Guides LIBERO CE-BLE LIBERO CL-BLE LIBERO CH-BLE LIBERO Cx BLE_Operation Manual_EN | Page 5 / 70... -
Page 6: System Overview / Models
LIBERO CE-BLE is reconfigurable and reusable for up to 2 years. The external Pt100 probe and M8 connector enables reliable, superior temperature data transfer to the data logger. -
Page 7: Libero Ch-Ble
Release products with confidence based on the OK or ALARM status on the display, the PDF report can be easily downloaded via the PC's USB interface or read out to a smart device via the LIBERO Cx BLE app (available for iOS and Android), thanks to the logger's Bluetooth®... -
Page 8: Devices - Libero Ce/Cl/Ch-Ble
4 Devices - LIBERO CE/CL/CH-BLE Unless otherwise noted the following information applies equally to all three LIBERO Cx-BLE models. Housing elements 1 Protective cap 2 USB connector 3 Display (in operating/measurement mode) 4 Start/ Alarming ON button 5 Stop / Alarming OFF button 6 Opening for humidity measurement (LIBERO CH only) 7 Connection to external probe... -
Page 9: Operating Modes
In configuration mode, the device can be configured using the free liberoCONFIG software, which is available via the download section of the ELPRO website. In the initial state, the front display of a factory new logger is empty, after briefly pressing the "Start/ON"... - Page 10 If the "Alarm ON/OFF" function is selected, this is additionally indicated by the symbol of an alarm bell (top center of the display), and provides information that the logged values are being evaluated according to the defined alarm criteria. LIBERO CH-BLE alternatively displays the humidity value after briefly pressing the "Stop/OFF"...
-
Page 11: Alarm Conditions
4.2 Alarm Conditions Alarm conditions not activated Without activation of alarm conditions (thresholds for temperature or humidity), the logger will log the respective measured values without evaluation against reference values. Alarm conditions activated If alarm conditions are activated during configuration: each logged, measured value is individually checked for compliance with or exceeding of the defined alarm threshold(s) within the selected inspection range. - Page 12 Inspection Range: Last alarming ON period only Only data and alarm limit excursions logged during the last Alarming ON>OFF period will be used for statistical evaluation. In the graphic of the PDF report only data of this last period will be displayed. Inspection Range: All alarming ON periods cumulative All data will be logged and displayed in the graphic of the PDF report, for statistical evaluation only data in the period(s) of Alarming ON is considered cumulatively.
-
Page 13: Alarming On/Off - Workflow
Alarming ON/OFF – Workflow The following figure shows the sequence of modes if "Alarming ON/OFF" function has not been configured (also see chapter 6, section Alarm Conditions). The following figure shows the sequence of modes if the "Alarming ON/OFF" function has been configured (also see chapter 6, section Alarm Conditions). -
Page 14: Operation & Options
4.3 Operation & options Start options LIBERO CE/CL/CH-BLE loggers can be started in different ways, depending on the respective application. Via the selected start option, the logger is ready for the logging of measured values. Depending on the start option you select for your device, it is also possible to configure the device to: pre-log measured values, logging start immediately or only when a condition from the selected alarm activation option is fulfilled (e.g. -
Page 15: Alarm Activation Options
Next Start requires configuration (start/stop ONCE) This option ensures that it is mandatory to reconfigure the (multi-use) logger before a next use. A re- start without re-configuration is not accepted by the device, and the display will indicate "ConF”. This additional requirement can be combined with all start options described above. Alarm activation options When alarm monitoring is activated, measured values are recorded, checked for compliance with any defined alarm limits and stored in the data memory. - Page 16 The delay time can be specified as any value (independent of the value of the selected logging interval), up to a maximum of 60 days. The time delay (rounded to integer values) is counted down to zero in steps of one minute each. Users who wish to take advantage of pausing the alarm (Alarming-OFF followed by Alarming-ON, e.g.
-
Page 17: Stop Options
If the option “logging before alarm activation” is selected, measurement data can be displayed, extracted and evaluated via the elproVIEWER software, which is available via the download section of the ELPRO website. Stop Options The LIBERO devices will adapt to your specific application, and loggers can be programmed to stop in different ways, even preventing a stop is configurable (in case of handling errors, e.g. - Page 18 Stop by pressing and holding the Stop button Alarm monitoring and logging of measurement data is stopped by pressing and holding (2 seconds) the "Stop/OFF" button, the display shows "Make PdF". After disconnection from the USB port, the logger is in stop mode, the display shows "StoP".
-
Page 19: Re-Start / Re-Configuration
Forced stop when measured value memory is full With the "Start/Stop" logging mode configured, a stop of the logger is triggered when the maximum number of stored, measured values is reached. Re-Start / Re-Configuration From run mode you get to stop mode at the end of the monitoring period by stopping the logger via the configured stop option. -
Page 20: Setting & Canceling Of Delay/Duration Time
Values for temperature and humidity are displayed, provided that measured values have been logged. If the logger is in RUN/Measure mode (after recording has started), the statistics functionality can be activated by pressing and holding (2 sec.) BOTH, the "Start/ON" & "Stop/OFF", buttons simultaneously. This step-by-step mode can be exited by briefly pressing the "Stop/OFF"... -
Page 21: Error-Handling
If a PDF report can be generated, it will contain an error code above the measurement data graph. For a support request to ELPRO, you must provide the error code for further information in connection with the error. -
Page 22: Logger Service Life / Battery Runtime
Shortening the period of use Should the period of use for the devices be deliberately limited to exactly 12 or 24 months (EoL/End-of- Life, no restart possible after this point), the user can order this option from ELPRO as a factory-made configuration. - Page 23 Battery warning The imminent end of the logger's use (caused by the end of the battery capacity or by the expiry of the shortened period of use) is indicated 30 days in advance by showing the battery warning symbol on the display.
-
Page 24: Libero Pdf Report
4.6 LIBERO PDF Report All data logged during a monitoring period is documented in a PDF report. The report contains the following main parts: Text fields for user/application information Alarm status indicator (OK or Alarm) Configuration of the device ... - Page 25 If it is not possible to generate a PDF report for any reason, we recommend that you stop operating or manipulating the PDF logger from this point onwards and contact ELPRO immediately. If necessary, the device can be sent in to be read out by ELPRO. LIBERO Cx BLE_Operation Manual_EN | Page 25 / 70...
-
Page 26: Technical Specifications
4.7 Technical Specifications LIBERO CE-BLE https://shop.elpro.com/daten/img/Documents/TechSpecs/LIBERO/TS_LIBERO_CE_BLE_EN_web.pdf LIBERO CL-BLE https://shop.elpro.com/daten/img/Documents/TechSpecs/LIBERO/TS_LIBERO_CL_BLE_EN_web.pdf LIBERO CH-BLE https://shop.elpro.com/daten/img/Documents/TechSpecs/LIBERO/TS_LIBERO_CH_BLE_EN_web.pdf LIBERO Cx BLE_Operation Manual_EN | Page 26 / 70... -
Page 27: Accessories
Ambient shipments and storage (+15 °C..+25 °C) Cryogenic shipments and storage For cryogenic applications the LIBERO CE-BLE logger is usually mounted directly to the container or the container lid, using the optional accessory, our stainless steel bracket, with the sensor leading into the tank. - Page 28 ELPRO offers two Pt100 standard probes for cryogenic applications with M8 connector in different lengths: PRO_PT100_ST300D3_M8_CRYO (part number 802287) PRO_PT100_ST350D3_M8_CRYO (part number 802288) LIBERO Cx BLE_Operation Manual_EN | Page 28 / 70...
-
Page 29: Dry Ice Shipments And Storage
Dry ice shipments and storage In dry ice applications, the LIBERO CE-BLE is usually attached to the outside of the container using the optional accessory, our stainless steel bracket and the sensor leads into the shipping container. ELPRO offers an easy, turnkey service for mounting the assembly and calibration. -
Page 30: Freezer / Fridge / Ambient Shipments And Storage
Freezer / fridge / ambient shipments and storage For temperature monitoring of freezers, refrigerators or rooms, ELPRO offers two waterproof silicon Pt100 probes with different cable lengths as standard part numbers (listed below): PRO_PT100_P20D5_PLA1_M8 (part number 802290) PRO_PT100_P20D5_PLA2.65_M8 (part number 802291) -
Page 31: Extension Of Sensor Cables
5.2 Extension of sensor cables In case you need a longer cable for your application, an extension cable with two M8 connectors at a length of 1m is also available to attach the LIBERO CE BLE PDF data logger and the probe. ATTENTION: Total cable length (including sensor and cable tail on the data logger) must not exceed 3 m! ECA_PLA_1M_M8 (part number 802282) -
Page 32: M8 Connector Incl. Mounting Service On Pt100 Probe
5.3 M8 connector incl. mounting service on Pt100 probe ELPRO offers a mounting service, adding an M8 connector to a Pt100 temperature sensor in order to use any 4-wire Pt100 probe in combination with LIBERO CE-BLE. CTR_M8_SER (part number 802289) 5.4 Stainless steel bracket... -
Page 33: Configuration (With Liberoconfig Configuration Software)
100 MB - Monitor resolution: 800 x 600 pixel Details regarding configuration of LIBERO Cx can be found in the corresponding manual (https://shop.elpro.com/daten/img/Documents/Operation%20Manuals/LIBERO/OM_LIBEROC_EN_web. pdf). In the following section only differences or additional configuration options for logger models LIBERO CE/CL/CH-BLE are described. - Page 34 Menu selection: “Logging” "Loop" has been added as an additional recording mode, since LIBERO CE/CL/CH-BLE loggers are for multiple use. NOTE: When memory capacity of the logger is reached, newly measured values continuously overwrite the oldest stored values! "Next Start requires configuration (start/stop ONCE)" requires mandatory re-configuration before a next use.
- Page 35 Menu selection: “Alarm Conditions” In the section "Alarm Mode" the possibility to select the inspection range has been added. The following options are available: All data: all recorded values are taken into consideration when assessing the alarm status (based on the configured alarm conditions) ...
- Page 36 Menu selection: “Handling Options» Stop Options There are four options to stop data recording: Stop when generating the PDF report Stop by pressing and holding (> 2 seconds) the Stop button Stop by pressing both buttons at the same time while the PDF is being generated (so stopping is basically possible, but the logger will hardly ever be stopped accidentally) ...
- Page 37 Menu selection: “Bluetooth®” To enable operation of the logger via LIBERO Cx BLE app, Bluetooth® mode must be selected accordingly when configuring the logger. The following are available for selection: Bluetooth® permanently off: there is no communication with the app. ...
- Page 38 LIBERO Configuration Report The LIBERO configuration report fully documents the configuration created for a LIBERO PDF data logger. The configuration report contains the following: Device and configured profile details Text fields for user/application information Logging and alarm conditions ...
-
Page 39: Operation Via Libero Cx Ble App (Operating System Apple Ios)
7 Operation via LIBERO Cx BLE App (operating system Apple iOS) The ELPRO LIBERO Cx BLE app is a mobile app available for smart devices with iOS and Android operating systems. LIBERO data loggers with Bluetooth® Low Energy (BLE) interface are able to connect wirelessly to the app once installed on smartphones or tablets. - Page 40 _ Quick Start Guide Quick Start Guide reference _ Support link to ELPRO product support page _ About information about ELPRO and app version Displaying loggers The smart device displays all loggers that are in the immediate vicinity and to which a Bluetooth® Low Energy (BLE) connection can be established.
- Page 41 A logger can be removed from the main display by touching the symbol display and then swiping to the left. The selection of loggers to be displayed is simplified by using the filter function. Tapping the filter icon opens a screen where the filter function can be activated and you can choose from a variety of criteria for filtering.
- Page 42 Operating steps / Actions Operating steps (actions) can be performed for a single logger or for all loggers. If one or more loggers have been selected, confirmation is in the information bar of the screen. Tapping the arrow key opens a control panel which allows for the following actions: ...
- Page 43 A PDF report is generated and downloaded to the smart device by tapping «PDF Export». After this action has been executed, the logger will display "Stop" if the logger was stopped before the download command was issued. If a download is requested during operation ("Run Mode") the logger continues to run without any change in recording mode.
- Page 44 Security settings The use of LIBERO Cx BLE app can be protected by a password, just as the LIBERO CE/CL/CH-BLE loggers themselves can be provided with appropriate security measures as part of the configuration (password protection for configuration, data access and Bluetooth® connection). Notice: Setting, changing and deleting logger passwords is only done via the liberoCONFIG configuration software!
- Page 45 PDF reports. About This menu item contains a link for more details about the company ELPRO ("ABOUT US") and provides information about the version of the currently used app software. Processing speed and functionality of Bluetooth® Low Energy (BLE) connection With the aim of optimizing battery life an active connection between the logger and the smart device is only established for the time it takes to execute a specific action.
- Page 46 The user is continuously informed via the app about any communication between the smart device and the logger. Below are two examples of dialog information for clarification: Action: Start Action: PDF Export LIBERO Cx BLE_Operation Manual_EN | Page 46 / 70...
-
Page 47: Operation Via Libero Cx Ble App (Operating System Android)
8 Operation via LIBERO Cx BLE App (operating system Android) The ELPRO LIBERO Cx BLE app is a mobile app available for smart devices with iOS and Android operating systems. LIBERO data loggers with Bluetooth® Low Energy (BLE) interface are able to connect wirelessly to the app once installed on smartphones or tablets. - Page 48 Prerequisites for trouble-free operation: _ Activation of Bluetooth® - on the smart device and on the logger. _ sufficient signal strength and uninterrupted connection between logger and smart device, depending on the distance and ambient conditions. _ on the smart phone or tablet, allow access to camera, location and memory (see Settings/Apps/Permissions, as of Android 10.0 also activate options in “Improve accuracy"...
- Page 49 _ LIBERO Groups creation of groups for identification _ Settings settings for security and operation _ Privacy policy information on privacy policy _ Support information about ELPRO support LIBERO Cx BLE_Operation Manual_EN | Page 49 / 70...
- Page 50 Displaying and operating loggers _____________________________________________________________________________________ The smart device displays all loggers that are in the immediate vicinity and to which a Bluetooth® Low Energy (BLE) connection can be established. Devices are not displayed if loggers are out of range, Bluetooth® functionality has not been configured accordingly or individual loggers do not meet any filter criteria that may have been set.
- Page 51 Selection of loggers The loggers shown on the display of the smart device can be selected for further operating steps by tapping the logger display symbol. The selection of a logger is visually recognizable by a blue border line and a black bar above the logger display symbol. ...
- Page 52 Starting a logger is done by tapping "Start" in the control panel. On the display of the logger you will see a flashing “Run” symbol confirming that the logger has started logging. Stopping a logger is done by tapping "Stop" in the control panel. On the display of the logger you will see "Make PdF"...
- Page 53 You can select whether the PDF report should be opened for viewing, shared with others or sent by email. The desired functionality is then executed by applications installed on the smart device. As part of configuring the logger using liberoCONFIG, information can be edited in predefined fields (Info Lines).
- Page 54 Tapping on the group name selects the group and assigns the selected logger(s) to this group. Bluetooth® Low Energy (BLE) connection update time With the aim of optimizing battery life, an active connection between the logger and the smart device is only established for the time it takes to execute a specific action.
- Page 55 History Log _____________________________________________________________________________________ All executed operations are recorded chronologically in an event list, which can be called up via this main menu item. The list shows entries of logger serial numbers, sorted chronologically according to the last actions performed. Tapping on a serial number leads to the next display, in which all recently executed actions for this selected device are listed chronologically.
- Page 56 Set up automation _____________________________________________________________________________________ Nach Auswahl dieser Option im Hauptmenü gelangt man auf die Seite zur Einrichtung und Ausführung eines Automatisierungs-Ablaufes. Selecting the cogwheel symbol in the top right-hand corner takes the user to the settings described below Security If password protection is not activated, the processing of automation steps is permitted without restriction and therefore not protected.
- Page 57 Filters If a LIBERO Cx BLE logger is detected via the received Bluetooth® BLE signal, the device is checked for compliance with predefined criteria. _ Include groups Definition of groups to be involved in the identification. _ Exclude groups Definition of groups that should be excluded from identification.
- Page 58 Possible recipients can be email addresses of individuals as well as cloud/database platforms, such as ELPRO's liberoMANAGER. Recipients are entered by tapping on the red circle symbol and then entering the email addresses.
- Page 59 Then tap on "Add" on the right-hand side to add the selected option to the list of work steps shown below it. An erroneously accepted entry can be deleted by tapping on the red X on the right-hand side. Important: - The selected work steps are carried out in the order in which they are entered! - After this last step, the automation setup must be saved in any case!
- Page 60 The status of the processing of work steps is shown by a circular progress indicator and colored markings. red Work step in progress green Work step successfully completed orange Processing aborted blue Work step not applicable (logger configuration not corresponding or device not in expected status) If problems occur during the execution of the work steps, the relevant work step is repeated.
- Page 61 Set up groups _____________________________________________________________________________________ Groups are used to identify LIBERO Cx BLE PDF loggers that are recognized via Bluetooth® BLE radio signals. When setting up an automation, groups are included in or excluded from the subsequent execution of the automation. Groups can be created with any name and contain either known serial numbers of devices or a defined identifier to identify devices.
- Page 62 Note: _ A LIBERO Cx BLE PDF logger is assigned an "Automation Key" identifier as part of the device configuration. This is entered via the liberoCONFIG configuration software, in the first menu item "Description", under "Hidden information" in line 2(!), by entering the identifier between two square brackets, e.g.
- Page 63 Settings _____________________________________________________________________________________ Settings for various parameters can be made in this section. General The date format and the units of temperature values can be selected in the general settings. Automation If desired, the menu page of the automation can be set as the start page. If required, the display can be prevented from switching off.
- Page 64 Email In this section, the settings of the outgoing email server are recorded. To ensure the correctness of the entries, we recommend contacting the internal IT department or the external Internet service provider. Security The use of the LIBERO Cx BLE app can be protected by a password, just as the LIBERO CE/CL/CH-BLE PDF loggers themselves can be provided with appropriate security measures as...
- Page 65 If the password is not (or no longer) known, a recovery can be requested by selecting "I forgot my password". By tapping on the black bar, a key (token) is sent to the email address specified for this purpose. After receipt by email, this key can be entered in the field below, together with a new password.
- Page 66 The "About" menu item provides information on the version of the app software currently in use and contains a link for further information on the company ELPRO. Privacy Policy _____________________________________________________________________________________ Link to ELPRO’s Privacy Policy Webpage. Support _____________________________________________________________________________________ Link to ELPRO’s Support Webpage.
-
Page 67: Disposal
9 Disposal a) Device Electronic devices are recyclable and do not belong in the household waste. Dispose of the product at the end of its service life in accordance with applicable laws. b) Batteries You are legally obliged to dispose of all used batteries according to applicable laws; disposal via household waste is prohibited. -
Page 68: Declaration Of Conformity
10 Declaration of Conformity 10.1 EU Declaration LIBERO Cx BLE_Operation Manual_EN | Page 68 / 70... -
Page 69: Fcc/Ised Regulatory Notices
10.2 FCC/ISED Regulatory notices Modification statement ELPRO-Buchs AG has not approved any changes or modifications to this device by the user. Any changes or modifications could void the user’s authority to operate the equipment. ELPRO-Buchs AG n’approuve aucune modification apportée à l’appareil par l’utilisateur, quelle qu’en soit la nature. - Page 70 This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de classe B est conforme à la norme canadienne NMB-003. IC (CAN) ID: 9954A-LIBEROCEHL ELPRO-BUCHS AG Langaeulistrasse 45 9470 Buchs SG Switzerland LIBERO Cx BLE_Operation Manual_EN | Page 70 / 70...
