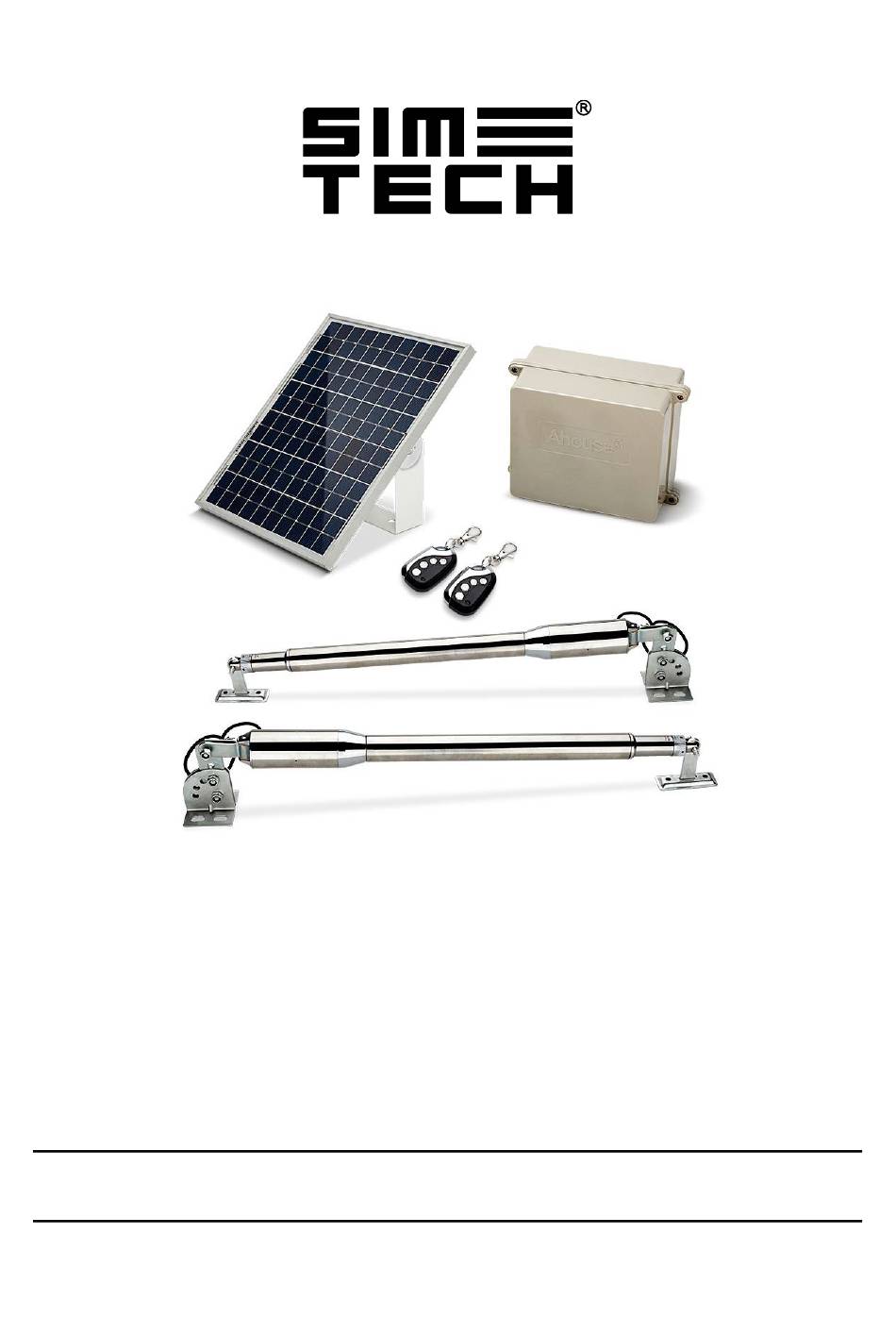

Automatic Solar Electric Swing
Gate Opener
User Manual
[Revision 2.0 August 2018]
READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY
DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by
this manual may vary in appearance, assembly, inclusions, specifications, description and packaging.
E&OE
© 2018 SIMTECH
Advertisement
Table of Contents
Summary of Contents for SimTech EM3 Plus
- Page 1 READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance, assembly, inclusions, specifications, description and packaging. E&OE © 2018 SIMTECH...
-
Page 2: Safety
/ collection facilities, only, and far away from windows, doors • For specific equipment safety use and ensure these are connected and used and vents. care, see Equipment Safety. properly. Dust collection can reduce dust-related hazards. E&OE © 2018 SIMTECH... - Page 3 The gate(s) must be well balanced and in terminals/wiring/circuit boards that may at good working order. Faulty gates must be any time be live with 240V AC electricity repaired by a qualified technician prior to are accessed. opener installation. E&OE © 2018 SIMTECH...
-
Page 4: Safety Symbols
Wear appropriate Always wait for moving parts injury to fingers, limbs, blood clothing and protectiove to stop fully before handling etc. Take due care when devices. the product, adjusting, handling and using the maintenence etc. product. E&OE © 2018 SIMTECH... - Page 5 Carry hook to load – do NOT Wear appropriate eye Laser may be in use – do NOT throw or run. protection for welding. Dorect look directly at laser, or allow exposure to weld arcs may others to. cause permanent eye injury. E&OE © 2018 SIMTECH...
-
Page 6: Table Of Contents
Function Adjustment ..........................17 Battery Set-Up ..........................19 Solar Control System Wiring ......................20 Solar Panel Installation ........................21 Solar Panel Connection........................22 Flashing Light Installation ......................23 Specifications ........................... 24 Electrical ..............................24 Mechanical ............................... 24 E&OE © 2018 SIMTECH... -
Page 7: Features
9. Max can up to 50 sets of remote controllers. 10. DC 24V backup battery (Optional). 11. Flashing light AC 220V / ll0V & DC 24V (Optional). 12. Optional Device: DC 24V gate lock, photocell, keypad, push button, extensional receiver box. E&OE © 2018 SIMTECH... -
Page 8: Mechanical Installation
Automatic Solar Electric Swing Gate Opener Mechanical Installation Installation Dimensions Standard Installation E&OE © 2018 SIMTECH... -
Page 9: Opener Dimension
Automatic Solar Electric Swing Gate Opener Opener Dimension Bracket Dimension E&OE © 2018 SIMTECH... -
Page 10: Post Brackets Alignment
Automatic Solar Electric Swing Gate Opener Post Brackets Alignment E&OE © 2018 SIMTECH... -
Page 11: Manual Release
2. Turn towards the "open" direction to rotate the moving part of operator 3. Make a 90° or ¼ turn to unlock position. 4. Now the manual release function is enabled when maintaining or no power. E&OE © 2018 SIMTECH... -
Page 12: Control Box Setting
Function adjustment button Back-up battery (12V 7An x 2 in series) Motor A (with electric lock) Switch (AC 220V & 110V) Motor B Power supply (AC 220/110V) Output DC24V (unstable voltage) Earthed 0V “-“ output AC flashing light E&OE © 2018 SIMTECH... -
Page 13: Wiring For Optional Accessories
If the photocell activates a signal when the gate is closing, the PCB will then activate an opening operation. When photocell senses the obstacle, the gate will be stopped, then opened immediately. After removing the obstacle, the gate will operate according to the new command. E&OE © 2018 SIMTECH... -
Page 14: Remote Control Setting
The LED will turn ON/OFF (see notes LED Diagram) Erasing the Code Press and Hold the "Enter" button on the PCB for a second until the indicator retain lighting. Then all the remote controls are invalid. E&OE © 2018 SIMTECH... -
Page 15: Motor Setting
This indicates that the controller has recognized it has hit an object. Electronics will memorise the overload settings when opening the gate. (If the gate closes, disconnect power and reverse the motor wire and restart the setting again). E&OE © 2018 SIMTECH... -
Page 16: Total Timer Adjustment
Simultaneously press and hold the "P" and "Open" buttons on the remote until the indicator starts to blink, then release both buttons. The gate will now open until the end and hit the end stop. Now gate opening limit has been pre-programmed. E&OE © 2018 SIMTECH... -
Page 17: Function Adjustment
Press the “F” button, then choose a setting, the indicator will then show the numbers. 4. Press the “+” or “-” button to select levels. 5. Press the “Enter” button to confirm. 6. Press the “F” button to return to previous configuration menu. E&OE © 2018 SIMTECH... - Page 18 Automatic Solar Electric Swing Gate Opener * For C1, C2 and C3, all of them can adjust from 0 to 99, but only within a valid setting range. E&OE © 2018 SIMTECH...
-
Page 19: Battery Set-Up
Red cable for step one - CONNECT NEGATIVE FIRST THEN POSITIVE. • Blue cable for step two - Negative goes into the control box. • Red cable for step three - Positive goes into the control box. E&OE © 2018 SIMTECH... -
Page 20: Solar Control System Wiring
10. DC24V Electric Lock LED6 – Received signal for remote control LED 11. DC24V Flashing Light 12. Backup Battery(12V 7Ah X 2 in series) LED7 – Push button LED 13. Connector for solar panel / adaptor E&OE © 2018 SIMTECH... -
Page 21: Solar Panel Installation
5. Install the holding arm to the holding brackets with the 25mm screws and bolts. This can be done after you attach the holding arm to your fence post with the wiring. For maximum sun exposure, align the solar panel so the bottom is facing sunrise and the top is facing sunset. E&OE © 2018 SIMTECH... -
Page 22: Solar Panel Connection
Please refer to the manual, page 19 for where in the control box. Ensure you are connecting negative to the negative and positive to positive in the input section of the control box. Red is Positive and Blue is Negative. Please refer to the image below for further details. E&OE © 2018 SIMTECH... -
Page 23: Flashing Light Installation
Automatic Solar Electric Swing Gate Opener Flashing Light Installation If using solar system, connect with DC24V E&OE © 2018 SIMTECH... -
Page 24: Specifications
Electronic Controller Microcontroller Based Safety Detection Over Current Detection Safety Barrier Infrared Beam Sensor (Optional) IP Rating IP66 Mechanical Swing Type EM3 Plus EM 3 EM 2 Max. Piston Stroke 450mm 350mm 200mm Max. Length of Motor 1255mm 1030mm 730mm Max. - Page 25 ©2018 SIMTECH. All rights reserved. No part of this document, including descriptive content, concepts, ideas, diagrams or images may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, scanning or recording, or any information storage and retrieval system, without express permission or consent from the publisher.
