Instructions for Installation, Operation, and Maintenance
Battery Charger: Electrical device for charging NorthStar battery pack
To reduce the risk of injury, the user must read and understand the
Owner's Manual before using this product.
Failure to follow instructions may result in fire or electric shock.
Any Questions, Comments, Problems, or Parts Orders
Call NorthStar Product Support 1-800-270-0810
Owner's Manual
#5043106.
WARNING
M5050015A.1
ITEM NUMBER: 5050015
SERIAL NUMBER: __________
Advertisement
Table of Contents
Summary of Contents for North Star 5050015
- Page 1 M5050015A.1 ITEM NUMBER: 5050015 SERIAL NUMBER: __________ Owner’s Manual Instructions for Installation, Operation, and Maintenance Battery Charger: Electrical device for charging NorthStar battery pack #5043106. WARNING To reduce the risk of injury, the user must read and understand the Owner’s Manual before using this product.
- Page 2 Hazard Signal Word Definitions and Symbols Symbols used in this manual or on this product: Symbol Definition (units) Voltage (Volt) Current (Ampere) Frequency (Hertz) Power (Watt) ∼ Alternating current “AC” ⎓ Direct current “DC”...
-
Page 3: Table Of Contents
Table of Contents Summary of Important Safety Information ..................4 Warning Label Location ........................5 Component Identification ......................... 6 Installation ............................7 Operation ............................8 Maintenance and Storage ....................... 11 Specifications ........................... 12 Limited Warranty ........................... 13... -
Page 4: Summary Of Important Safety Information
• Save these instructions – This manual contains important safety and operating instructions for the NorthStar Li-Ion battery charger #5050015. • Before using the charger, read and understand the owner’s manual for this charger, the equipment owner’s manual, and the battery pack owner’s manual. -
Page 5: Warning Label Location
Warning Label Location Fig07077 Part# Description 804766 Decal, Charger Always make sure safety labels are in place and in good condition. If a safety label is missing or not legible, order new labels or unsafe operation could result. To order replacement safety labels, call NorthStar Product Support at 1-800-270-0810. -
Page 6: Component Identification

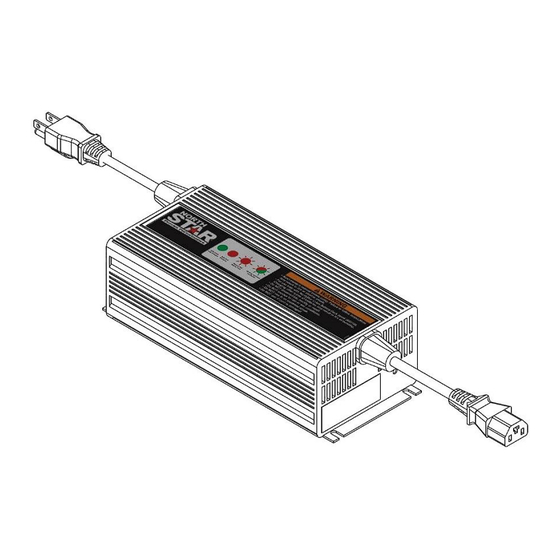

Component Identification Fig07079 Cooling air outlet vents Mounting slots Power cord Power plug Fig07078 Cooling air inlet vents Status indicator light Charging cord Charging plug... -
Page 7: Installation
Installation WARNING The charger should be installed indoors in a well-ventilated, dry location. 1. Mount the If desired, the charger can be attached to a shelf or wall using the mounting slots on the charger’s base. charger Hole pattern is: Fig07080 Note: The charger can be mounted in any orientation. -
Page 8: Operation
Operation WARNING Do not attempt to charge batteries other than NorthStar Li-Ion battery pack #5041036. Charging other batteries may result in fire or bursting. Do not use outdoors and do not expose to rain or wet conditions. Do not handle charger with wet hands. 1. - Page 9 Operation Directly to the battery box on the equipment – connect the charging plug to the charging socket on the battery box control panel. Notes: The battery’s power plug must be connected to the receptacle inside the battery box if charging by this method. - Do not charge the battery during operation.
- Page 10 Operation Charger indicator status light functions: Indicator light Status Action Battery fully charged Charging complete Solid Green Nothing connected Inactive Solid Red Battery charging Charging Battery pack or charger is Blinking Red Battery fault defective Wait for battery temperature to return to Blinking Red/Green Battery overheated normal, then try charging...
-
Page 11: Maintenance And Storage
Maintenance and Storage WARNING Do not disassemble or attempt to modify or repair the charger. The charger has no serviceable parts and the only maintenance required is periodic inspection and cleaning. Inspect cords regularly for damage or cuts. Discontinue use immediately if damage is found. -
Page 12: Specifications
Specifications Item# 5050015 Charger input 120V∼60Hz, 7A max Charger output 65.7V⎓, 8A max Compatibility NorthStar battery pack #5043106 Charging temp 32°F~105°F (0°C~40°C) Weight 4.25 lbs Charging time 3.5 hours for exhausted battery Any Questions, Comments, Problems or Parts Orders Call NorthStar Product Support 1-800-2700... -
Page 13: Limited Warranty
Limited Warranty Dear Valued Customer: The NorthStar Product you just purchased is built with the finest material and craftsmanship. Use this product properly and enjoy the benefits from its high performance. By purchasing a NorthStar product, you show a desire for quality and durability. Like all mechanical equipment this unit requires a due amount of care. - Page 14 Northern Tool + Equipment Co., Inc. Burnsville, MN 55306 NorthernTool.com Made in China...
