Summary of Contents for Bull 69500

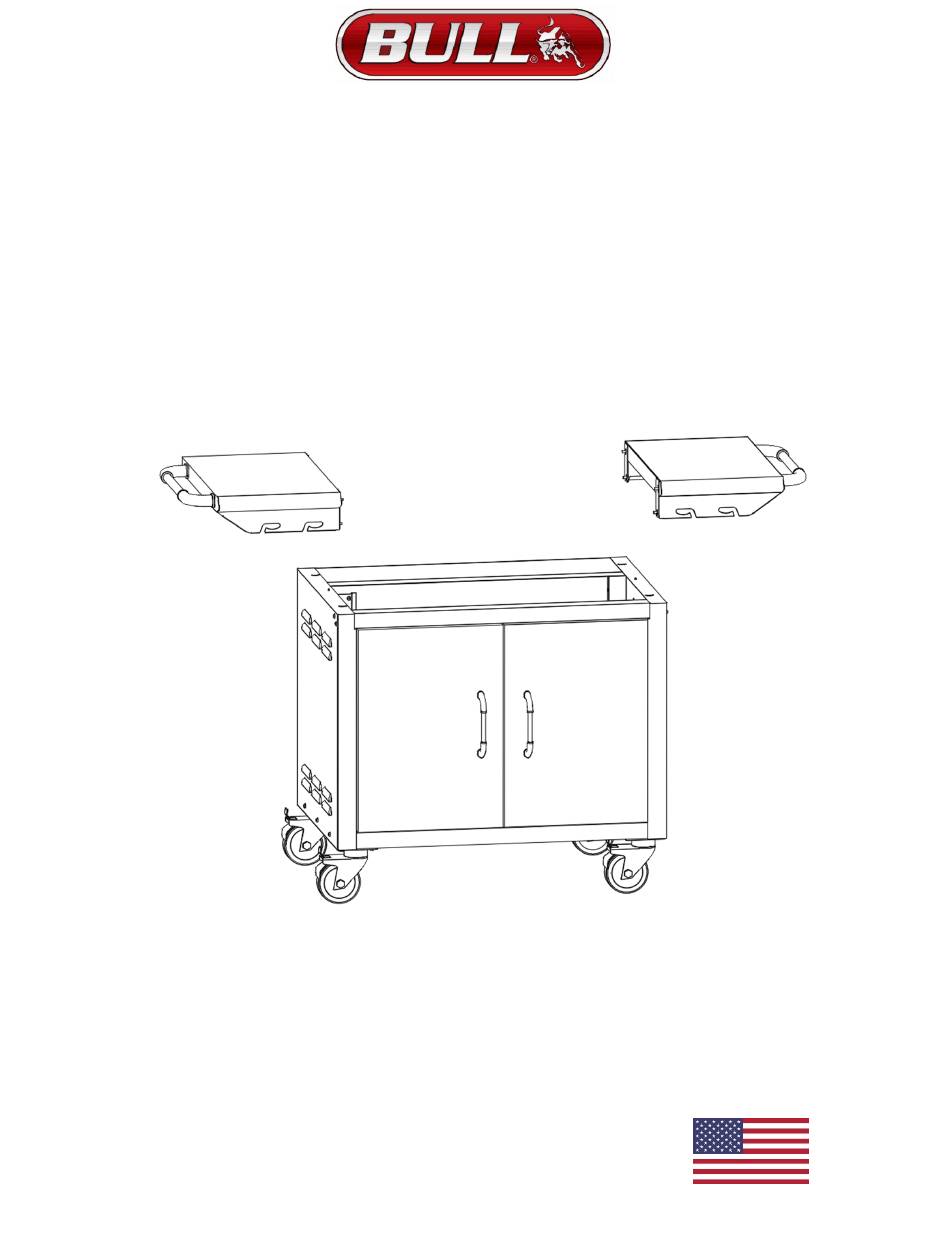

- Page 1 BULL OUTDOOR PRODUCTS 24 INCH PEDESTAL CART BOTTOM OWNERS MANUAL MODEL #69500 FOR USE WITH BULL 24” GRILL USA EDITION...
- Page 2 TABLE OF CONTENTS PAGE#2 REGISTERING YOUR CART REPLACEMENT PART ORDERING INSTRUCTIONS REPLACEMENT PARTS LIST AND ILLUSTRATION ASSEMBLY INSTRUCTIONS SETTING UP CART BODY TO INSTALL CASTERS INSTALLING CASTERS INSTALLING DOOR HANDLES PREPARING GRILL HEAD FOR INSTALLATION TO CART INSTALLING GRILL HEAD TO CART INSTALLING SHELVES TO GRILL LIQUID PROPANE SAFETY GUIDELINES LIQUID PROPANE TANK INSTALL AND CONNECTION GRILL INSTRUCTIONS...
- Page 3 This is where your Product Information Reference Card will come in handy for supplying necessary info needed by your Bull Authorized Dealer to assure you get the correct part(s) for your Cart or additional accessories to keep your Cart in top working condition. If you don’t have the card, you can still get the model number and serial number on upper right corner of the carts back side.
- Page 4 REPLACEMENT PARTS LIST & ILLUSTRATION MODEL # 69500 NOTE: Prior to assembly, use the parts list and illustration to verify all the parts are included. Inspect parts for any damage and contact your service center or local dealer for replacement of any damaged parts.
- Page 5 CART ASSEMBLY HARDWARE NOTE: Prior to assembly, use the list and illustration below to verify all the fasteners are included. If there are missing or damaged fasteners, contact your service center or local dealer for a replacement. NOTE: Do not attempt assembling the cart until you have all the fasteners listed. LETTER DESIGNATION DESCRIPTION...
- Page 6 CART ASSEMBLY INSTRUCTIONS For your safety, Bull recommends the assistance of TOP VIEW another person when assembling larger and/or heavier items. Setting up Pedestal Cart Body to install Castors. The best way to do this is to flip the cart body upside down before installing per steps below: a.
- Page 7 CART ASSEMBLY INSTRUCTIONS (CONTINUED) IMPORTANT, Before you begin this task Set the swivel casters wheels in the locked position to prevent the cart from moving and causing injury. Installing the Grill Head to the Cart (Please read all instructions before starting Safety Guidelines: a.
- Page 8 CART ASSEMBLY INSTRUCTIONS (CONTINUED) Installing the Grill Head to the Cart IMPORTANT: Set the swivel casters in the locked position to prevent the cart from moving and causing injury. To complete you will need: • 4 of fastener ‘A’ M5 x 12mm Long Hex Drive Button Head Screw •...
- Page 9 CART ASSEMBLY INSTRUCTIONS (CONTINUED) Installing the Shelves to the Grill Head The shelves and handles are already put together. You’ll need the following to complete the shelf install: • Both shelves that came with your cart • 8 of fastener ‘A’ M5 x 12mm Long Hex Drive Button Head Screw ‘A’ •...
- Page 10 LIQUID PROPANE (LP) SAFETY GUIDELINES Your Propane gas grill is designed to operate on propane gas ONLY, at a pressure regulated at 11” water column (wc.) or 27.4 mbar when equipped with the correct propane orifices on the valves and a propane regulator on the supply line.
- Page 11 LP Gas pressure regulator and 31” inch hose assembly (Bull Part # 16589) are supplied and must be used without alteration and should only be used on your Bull Grill Cart. If the hose assembly needs replacement, refer to illustration below or your Bull Grill manual for part number info.
- Page 12 LOCATION AND VENTILATION GUIDELINES (PLEASE READ THESE INSTRUCTIONS BEFORE USING YOUR CART)
- Page 13 (LP) GRILL OPERATING INSTRUCTIONS SAFETY INSTRUCTIONS BEWARE OF CLOGGED BURNERS DUE TO SPIDER WEBS CAUTION: BURNERS MUST BE INSPECTED AND CLEANED BEFORE FIRST USE Spiders and small insects occasionally spin webs or make nests in the burners during warehousing, transit and/or after long periods of non- use.
- Page 14 Chlorine, bromine, some fertilizers and other elements are extremely caustic chemicals for stainless steel. These chemicals combined with heat and humidity can increase the corrosiveness of these chemicals. Regular cleaning is the best way to prevent corrosion and add years of enjoyment to your Bull stainless steel products.
- Page 15 ABOVE LIMITATION MAY NOT APPLY TO YOU. WHO MAY USE THIS WARRANTY? BULL OUTDOOR PRODUCTS, INC. located at address 1011 East Pine St. Lodi, CA. 95240 ("we") extend this limited warranty only to the consumer who originally purchased the product ("you") at the original site of delivery or installation. It does not extend to any subsequent owner or other transferee of the product.
- Page 16 Warranty Policy (Continued) Grill Warranty Periods The following parts are covered for one year on all our current gas grill models: The lid, control panel, grease tray, bezels, knobs, temperature gauge, valves, regulator, flex tubes, rotisserie burner, transformer, and all components of the lighting system. The following parts are covered for three years on all our current gas grill models: The manifold, handle end caps, flame tamers, heat shields, and warming rack.
- Page 17 Warranty Policy (Continued) Pizza Ovens/Islands/Fire Features Warranty Periods All of the parts and construction materials are covered for one year. Grill Accessories and Grill Covers do not include a warranty period. WHAT DOES THIS WARRANTY NOT COVER? This limited warranty does not cover any damage due to: (a) transportation; (b) storage; (c) improper installation or use;...
