Summary of Contents for CLF Turbine

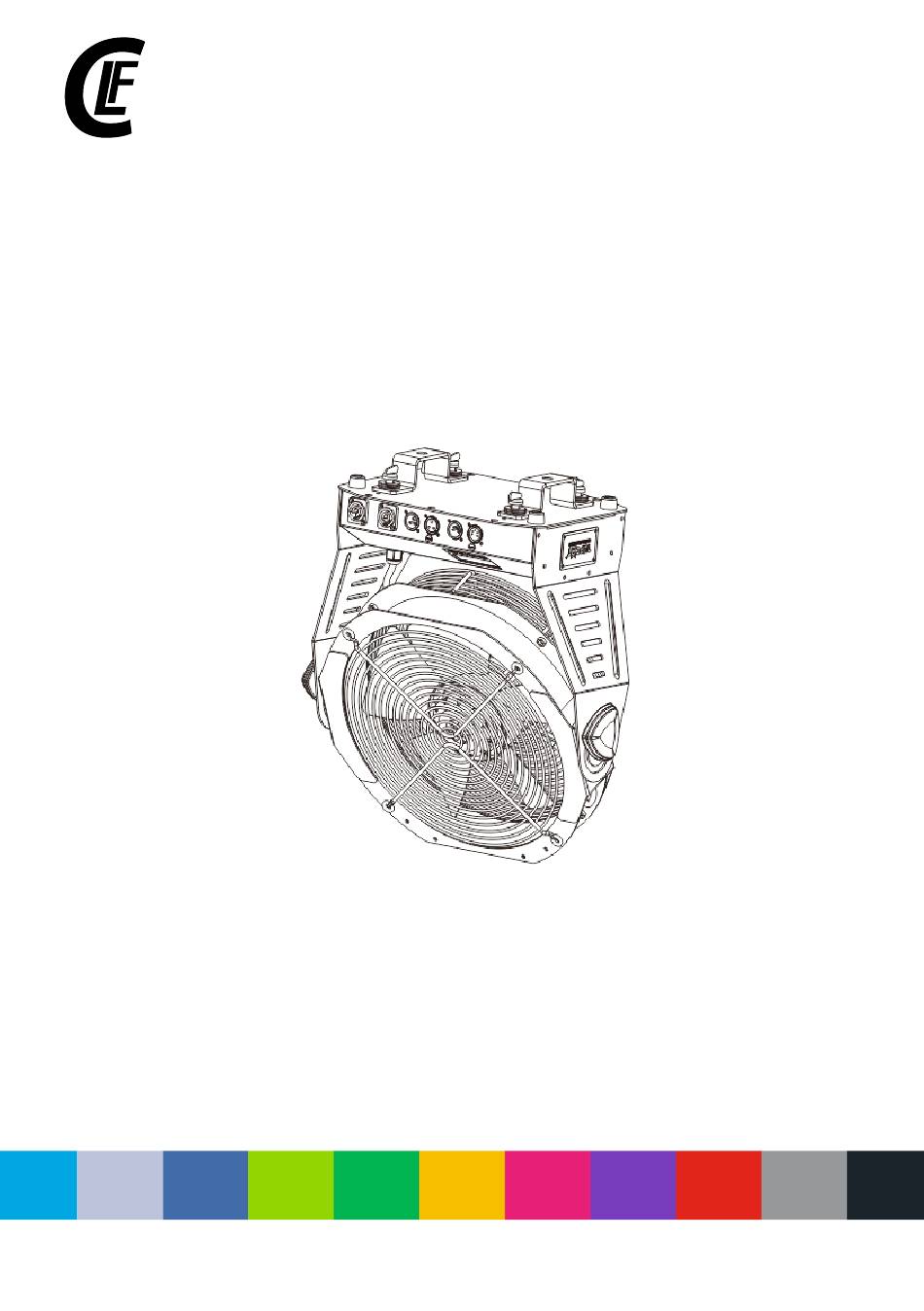

- Page 1 WWW.CLF-LIGHTING.COM V0.0 MONTH YEAR...
-
Page 2: Table Of Contents
CONTENTS Machine overview Safety instruction AC power Data link Physical installation Operating instructions Menu navigation DMX channels Exploded view Specifications WWW.CLF-LIGHTING.COM... -
Page 3: Machine Overview
LCD display Fan grill 3-pin DMX socket 5-pin DMX socket Grip Fan protector Adjusting knob PowerCon input PowerCon output WWW.CLF-LIGHTING.COM... -
Page 4: Safety Instruction
Isolate the machine from power immediately if the power plug or any seal, cover, cable, or other component is damaged, defective, deformed, wet or showing signs of overheating. Do not reapply power until repairs have been completed. Do not expose the fixture to rain or moisture CLF Turbine has an IP20 rating, indoor use only. WWW.CLF-LIGHTING.COM... - Page 5 Check that all external covers and rigging hardware are securely fastened. • Block access below the work area and work from a stable platform whenever installing, servicing or moving the machine. • Do not operate the machine with missing or damaged covers, shields or any optical component WWW.CLF-LIGHTING.COM...
-
Page 6: Ac Power
Connect the DMX data output from the controller to the closest machines male 3 & 5-pin XLR DMX input connector. Connect the DMX output of the machine closest to the controller to the DMX input of the next machine and continue connecting machines output to input. WWW.CLF-LIGHTING.COM... -
Page 7: Physical Installation
MENU button: When it shows “READY TO WORK”, press “menu” button to enter the page “ADDR” UP button: Increase the relevant value of each page DOWN button: Decrease the relevant value of each pag ENTER button: Enter or exit each page WWW.CLF-LIGHTING.COM... -
Page 8: Menu Navigation
Set the haze fog output from 1 - 100% under Volume mode Wireless Set: Set the wireless function ON or OFF Language: Select the language saved by “Enter” dmx channels Channel Function Value Percentage Remark CH 1 FAN output 006 - 255 0 - 100% 000 - 009 = OFF WWW.CLF-LIGHTING.COM... -
Page 9: Exploded View
Desription Part number CLF Handle CLF-70-002 Handle fixing plate CLF-70-003 Safety eye CLF-70-004 Plastic ring for safety eye CLF-70-005 Fan cover front CLF-70-006 Knob CLF-70-007 Base (stand) CLF-70-008 5-pin DMX PCB (male/female) CLF-70-009 PowerCON output socket white CLF-70-010... -
Page 10: Specifications
Black Housing High strenght die-casting aluminium and metal Protection rating IP20 Orientation Floor & horizontal Min. distance to combustable materials 300mm from machine Min. distance to iluminated surfaces 400mm from machine Wireless remote None Air angle 0° to 270° WWW.CLF-LIGHTING.COM... - Page 11 CLFLIGHTING WWW.CLF-LIGHTING.COM...
