Table of contents Caution! .........................3 Introduction ......................3 Safety instructions ....................3 Installation ......................3 Read ‘Safety information’ before installing the fixture ..............Fastening the fixture to a flat surface ....................Mounting the fixture on a truss ......................Securing with a safety cable ......................DMX-512 connection/connection between fixtures .................

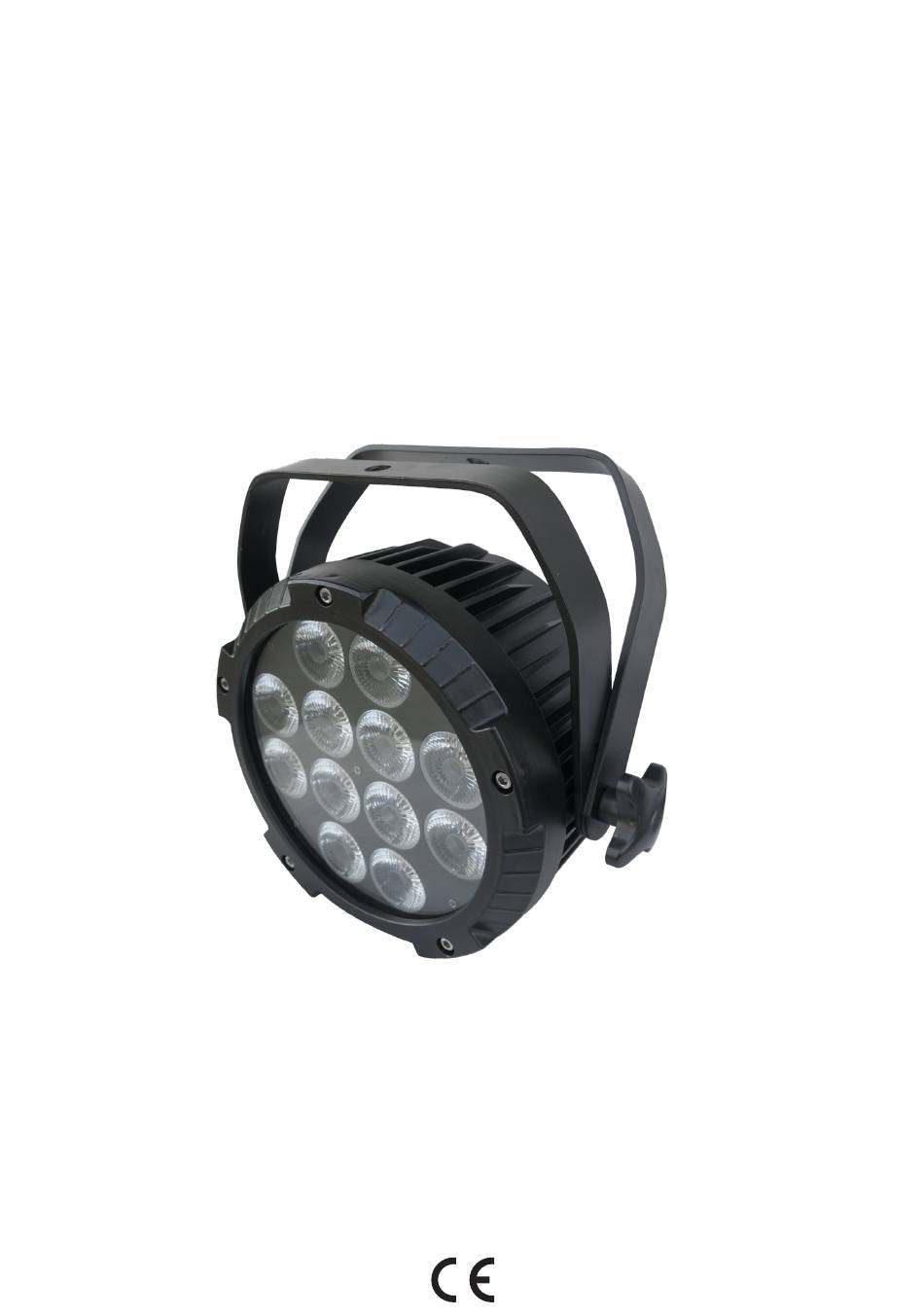

- download the latest version of the user manual from the Internet Introduction Thank you for having chosen EXT 1212. You will see you acquired a powerful and versatile device. Unpack your item. Before you initial start-up, please make sure that there is no damage caused by transportation.
fixture hanging vertically down, you can use an open-type clamp such as a G-clamp. When installing in any other orientation, you must use a half-coupler clamp that completely encircles the truss chord. To clamp the fixture to a truss: 1. Check that the rigging structure can support at least 10 times the weight of all fixtures and equipment to be installed on it.
That means changing the settings of one channel will affect only the selected fixture. In the case of the EXT 1212, which is 8 channels fixture. If you set, for example, the address to channel 9, the device will use the channel 9 to 16 for control.
Master-Slave Operation This function will allow you to link up to 16 units together and operate without a controller. In a Master- Slave set up one unit will act as the controlling unit and the others will react to the controlling units programs.
• Check the sound sensitivity level. Make sure it is not set to a low sensitivity level. SPECIFICATIONS Model: EXT 1212 Power supply: electronic auto-ranging Voltage: 100V ~ 240V/50~60Hz Light source: 12*12W RGBW 4in1 LED Power connection: IP67 power in&out...
