Dynamic GIGAMIX XS User Manual

Hide thumbs

Advertisement

Table of Contents

GIGAMIX XS
User guide
1 / 19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GIGAMIX XS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dynamic GIGAMIX XS

Summary of Contents for Dynamic GIGAMIX XS

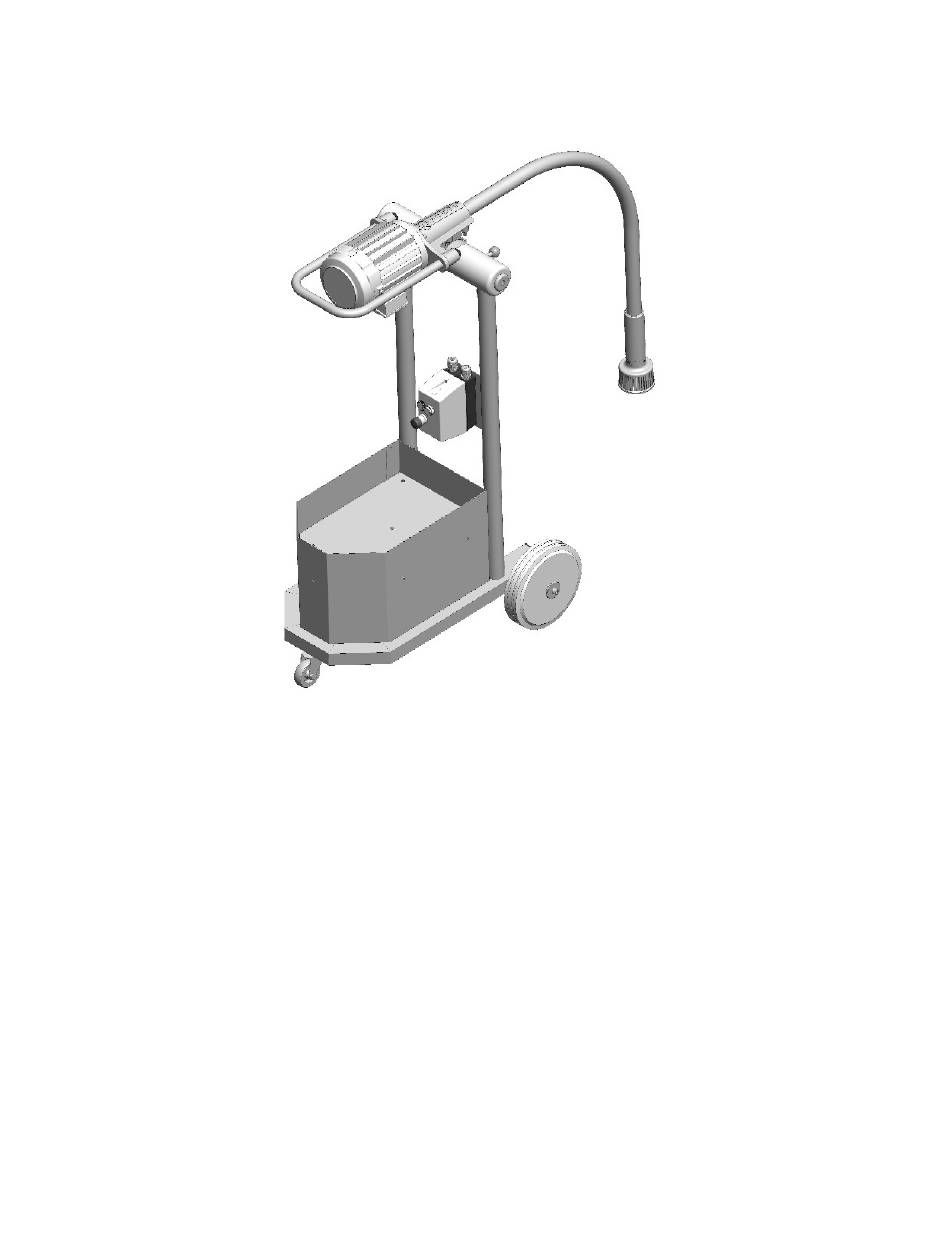

  • Page 1 GIGAMIX XS User guide 1 / 19...
  • Page 2 DESCRIPTION A Adjustment lever B Handle C Control unit D Stainless steel goose neck E Accessory box F TB004 – Blender G TB030 – Dyna pump H TB040 – Pump distribution gun 2 / 19...
  • Page 3 TECHNICAL TEATURES 400 V tri + neutral Voltage : 230V mono Power: 1500W Speed: 2800 rpm Weight: 71 kg TB004 – Dimensions of blender : TB030 – Dimensions of Dynapump: TB040 – Dimensions of gun: Dimensions: 3 / 19...

  • Page 4: Operation

    POSITION A machine. Position for dismantling the bell. In this position the GIGAMIX XS no longer works because there is an electrical safety. Warning, this product includes However you should still disconnect sector a moving blade. Take care before putting the giraffe into this position.
  • Page 5 Rotate the goose neck to the expected position ② and the clic signifying the locking of the POSITION B goose neck. Working position In this position, the GIGAMIX giraffe can be used normally. The work position can be adjusted to the configuration of the preparation.

  • Page 6: Control Unit

    (code 9388). fig. 2. Checking of the rotation direction by the motor fan Your GIGAMIX XS is ready to operate. CONTROL UNIT Press the ON-button ① to start the machine. Press the OFF-button ② to stop the machine. fig. 5.
  • Page 7 Put the key in the coupling sleeve of the accessory ②. Unscrew the hammer in the direction of the arrow indicated on the accessory ③. ② ③ ① Be careful when handling the blender accessory. The hammer has sharp edges. ASSEMBLY OF THE PUMP (TB030) fig.
  • Page 8 Open the pump. Lock the pump by lifting the handles of the hose pipe. Surround the blender bell (TB004) with the pump. Disassemble the pipe and the pump in the opposite way from 1 to 5. ASSEMBLY OF THE GUN (TB040) Fit the gun in the female fitting.
  • Page 9 When using the gun with warm preparations, provide thermal protections for hands if necessary. CARE Disconnect the giraffe. Rinse the bell and the tube under tape water with a showerhead (do not use dangerous cleaning products). Never spray the motor block and the control casing.

  • Page 10: Electric Requirements

    Fax sans frais : 1-877- 668-6623 Tél. : (514) 956 0127 Fax : (514) 956 8983 Your new Dynamic product is warranted to the original purchaser, for a period of one year, from the date of purchase. DYNAMIC warrants products to be free of...

  • Page 11: Electric Diagram

    ELECTRIC DIAGRAM DIAGRAM FOR 400V THREE PHASES WITH NEUTRAL 11 / 19...
  • Page 12 DIAGRAM FOR 230V SINGLE PHASE WITH NEUTRAL 12 / 19...
  • Page 13 DIAGRAM FOR 400V THREE PHASES WITHOUT NEUTRAL 13 / 19...
  • Page 14 SCHEMATIC AND PART LIST TB120 – GIGAMIX XS REF. DESIGNATION 0669XS Ø250MM WHEEL 0794 SCREW M10X30 07998 80X40 CAP 089950XS WELDED CHASSIS 089951XS WELDED BASKET 089953.V RING 50 X 12 X 5 STAINLESS STEEL GIGAMIX 9320 430V THREE-PHASED MOTOR-BLOCK 9320.1...
  • Page 15 9320-9320.1 – MOTOR-BLOCK Ref. Designation 0544 THREE-PHASED MOTOR 1.5KW 400V 0544.1 SINGLE-PHASED MOTOR 1.5KW 230V 0647 BEARING D15 079977 RUBBER RING 0867XS HANDLE 08999949 MOTOR SUPPORT 08999951 COUPLING SLEEVE 119941 9376 SET FOR GOOSE NECK ASSEMBLY 9377 SET FOR MOTOR ASSEMBLY 15 / 19...
  • Page 16 932104-932104.1 – CONTROL BOX Ref. DESIGNATION 9394 STOP PUSH BUTTON 9395 EMERGENCY PUSH BUTTON 9396 ON/OFF LIGHT 9397 ON/OFF PUSH BUTTON 9399 BOX CASE + PE VERSION 16 / 19...
  • Page 17 TB004 –BLENDER TOOL Ref. DESIGNATION 0639 TORIC JOINT 42 X 2.5 0649 BEARING 0665 WATERPROOF SEAL 0790 PLASTIC HANDLE 079977 RUBBER RING 08999920 HAMMER 08999921 BLENDER GIGAMIX BELL 1485 DISASSEMBLY KIT FOR GIGAMIX TOOL 9302 PROTECTION CAP 9348 WATERPROOF KIT ACCESSORY BLENDER GIGAMIX 9357 LOWER SHAFT + BEARING + COUPLING + CLIPS 17 / 19...
  • Page 18 TB030 – DYNAPUMP Ref. DESIGNATION 08999930 RIGHT HALF CLAMP 08999931 LEFT HALF CLAMP 08999932 3/4 STAINLESS MALE CAP 08999933 3/4 STAINLESS REDUCER FEMALE 08999935 PUMPE HINGE 08999936 3/4 MALE FITTING 08999937 HOSE NIPPLE CAMLOCK FITTINGS DN19 08999939 3/4 HOSE NIPPLE THREADED CONNECTION 08999940 STAINLESS STEEL HOSE CLAMP 08999941...

  • Page 19: Warranty

    Other Name Address City Zip code Telephone DYNAMIC FRANCE S.A.S. Dealer’s stamp S.A.S. au capital de 216.780 Euros - RCS 416 450 435 - La Roche-sur-Yon 518 rue Léo Baekeland – B.P.57 85290 Mortagne-sur-Sèvre Cedex – France Tel. +33 (0)2 51 63 02 72 Fax : +33 (0)2 51 63 02 73 E-mail : contact@dynamicmixers.com...
