iBeam Fixed 4K Premier Installation Manual

iBEAM CONSTRUCTION CAMERAS
(25' CAT6a STP
network cable provided)
Approximate
Angle of View Estimator
Use this template on your site plan to
estimate the approximate view from
different locations.
800.403.0688
© 2001-2018 iBEAM Systems, Inc. Specifications are current as 2/1/2018 and may change without no-
© 2001-2023 iBEAM Systems, Inc. Specifications are current as of 1/1/2023 and may change without notice.

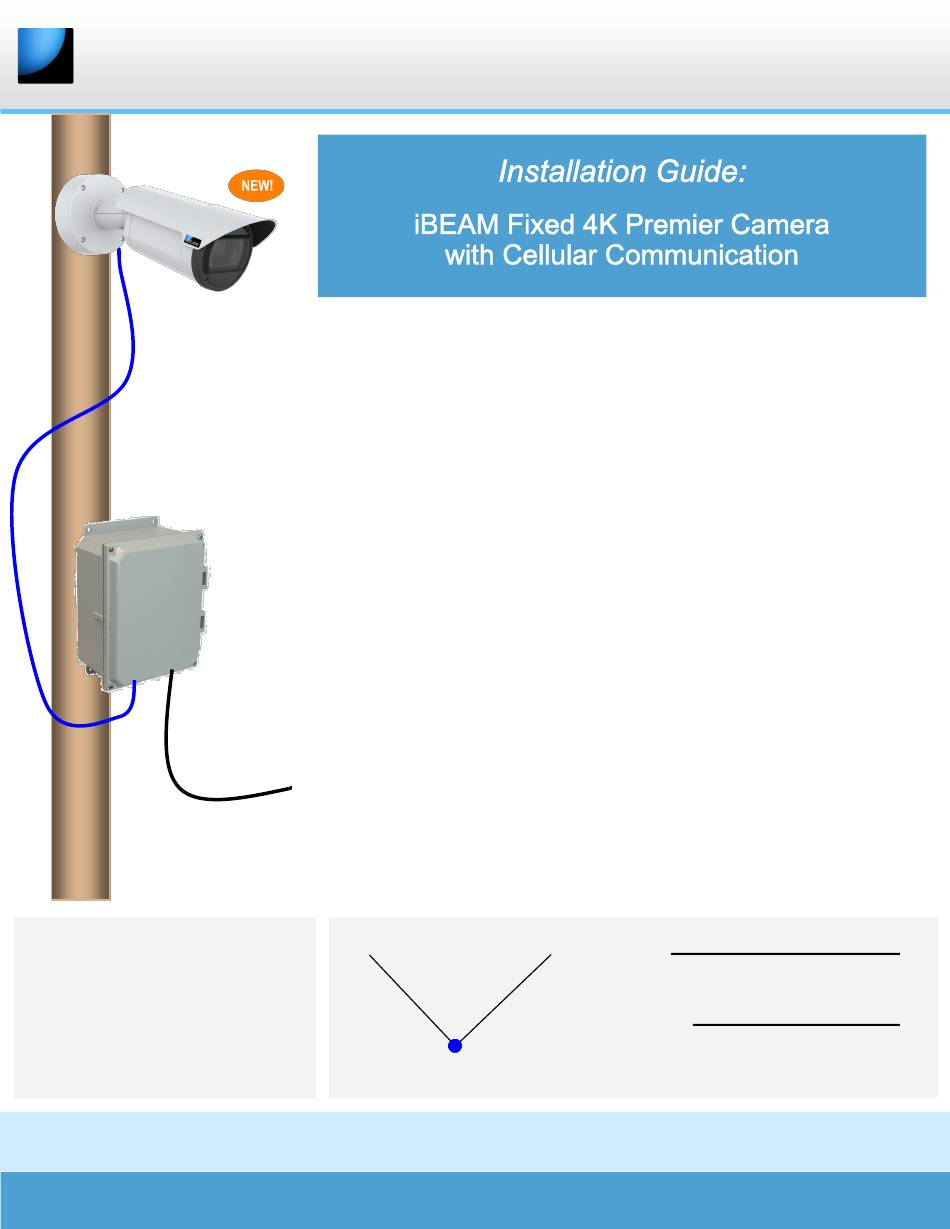

1. Attach camera to pole or other mounting surface using the provided straps.
2. Attach the communication box to the pole/mounting surface using the
provided straps.
3. Gently pull the cable gland out of its seated location, then feed the network
cable into the box and reseat the gland.
4. Plug the network cable into the open port of the PoE power supply.
5. Plug the unit into the appropriate power source as indicated on the PoE
power supply.
6. After the camera has been mounted and plugged in for 15-20 minutes, you
will receive an email* with information regarding how to view your camera.
7. *If you don't see this email from our Support Team, please reach out
to them at 800.403.0688 ext. 2 and they can verify the system is online.
The Support Team is available Monday through Friday 8:00 am - 5:00
pm Mountain Standard Time. When calling, if they're assisting another
customer please leave a voicemail and they'll return your call as soon
as possible.
8. Enjoy!
tice.
Fixed 4K Premier
Installation Guide
90° horizontal viewing angle
Max 200' of horizontal view for every 100' of
distance from the project
49° vertical viewing angle
Max 91' of vertical view for every 100' of
distance from the project
