eSAS-BT

AUDIO PLAYERS

Stereo Audio Player with BT

USER MANUAL

v.20220407

Table of Contents

Need help?

Do you have a question about the eSAS-BT and is the answer not in the manual?

Questions and answers

Summary of Contents for Ecler essentials eSAS-BT

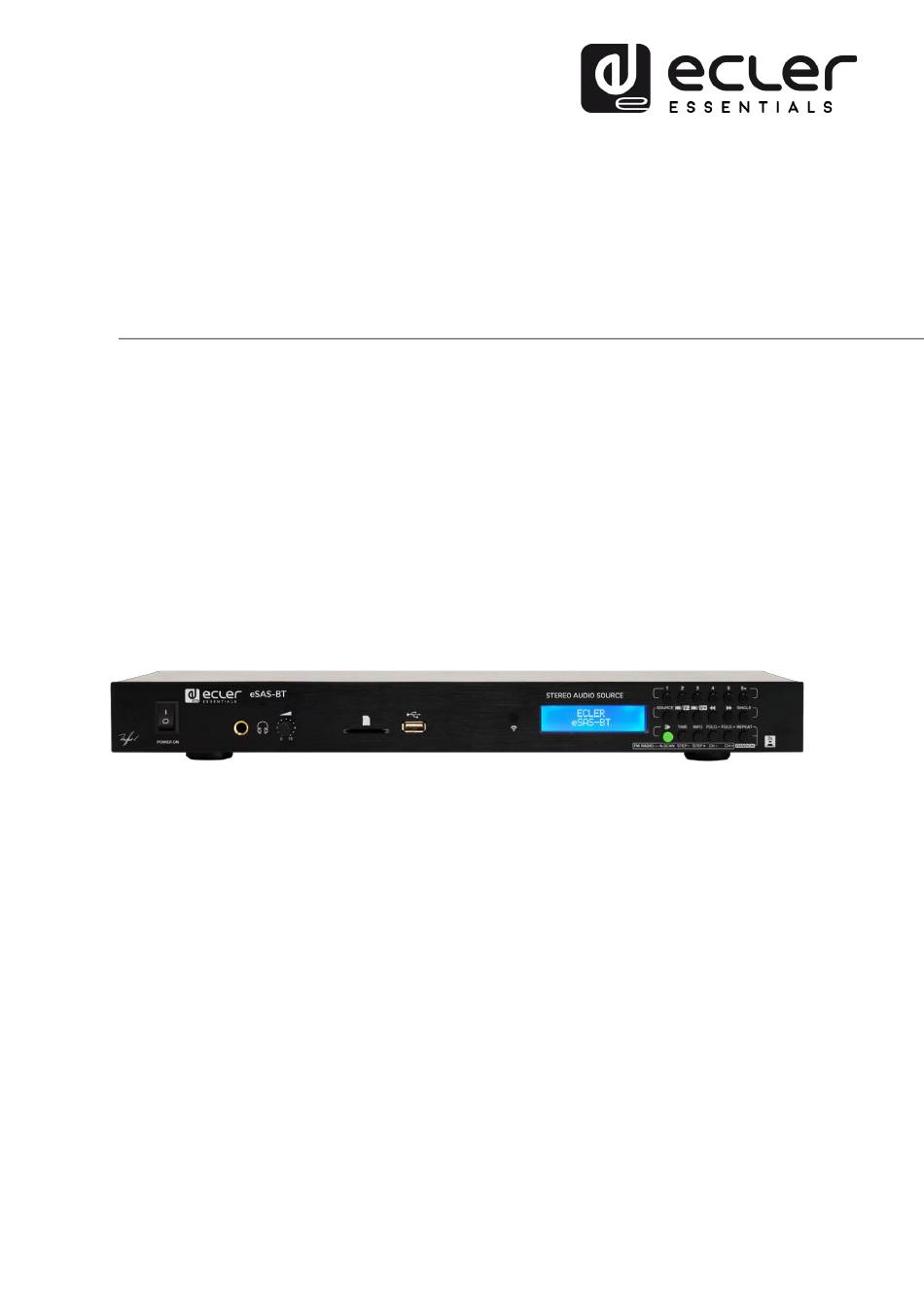

Page 1 AUDIO PLAYERS Stereo Audio Player with BT USER MANUAL v.20220407...
Page 2: Table Of Contents
INDEX IMPORTANT REMARK ......................3 IMPORTANT SAFETY INSTRUCTIONS ................3 IMPORTANT NOTE ........................ 5 INTRODUCTION ........................6 KEY FEATURES ........................6 REAR PANEL ........................... 6 FRONT PANEL ........................7 START-UP ..........................8 FM ................................8 SD / USB ..............................8 BT CONNECTION ..........................
Page 3: Important Remark
IMPORTANT REMARK The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
Page 4 9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety.
Page 5: Important Note
IMPORTANT NOTE Thank you for choosing our Ecler eSAS-BT Stereo Audio Player! VERY IMPORTANT It is to carefully read this manual and to fully understand its contents before any connection in order to maximize your use and get the best performance from this equipment.
Page 6: Introduction
INTRODUCTION eSAS-BT is a stereo audio source including FM tuner, USB port, SD slot and BT connection. It features balanced and unbalanced stereo audio outputs and headphones output (stereo jack) with volume control in frontal panel. IR remote control, FM antenna, stereo RCA cable and rack-mount bracket included.
Page 7: Front Panel
FRONT PANEL ON / OFF switch Headphones output: stereo Jack 6,3mm Headphones volume control SD/SDHC slot USB port IR receiver (remote control) LCD screen Track selection keys Source selection key PREV/ volume- key: hold to decrease the output volume NEXT/ volume+ key: hold to increase the output volume RW key: rewind FF key: fast forward SINGLE key (Play one / Play all)
Page 8: Start-Up
START-UP Press SOURCE key to select FM mode. Automatic search: press A.SCAN to start the automatic channels search. The system will automatically store available radio stations in presets. Manual tuning mode: press STEP-/STEP+ to adjust desired FM frequency. You can also adjust FM frequency by means of RW/FF keys.
Page 9: Bt Connection
Press SOURCE key to choose BT mode. If there is no connection, the display will show “BLUETOOTH DIS”. When the device is connected successfully, the display shows “BLUETOOTH CON”. Regarding BT pairing, eSAS-BT is displayed in the client devices as "ECLER eSAS-BT". No password required.
Page 10: Remote Control
REMOTE CONTROL You can perform all the features available in eSAS-BT’s front panel from the remote control, plus some added functions: • RETURN: allows going back from a sub-menu to its parent menu. • EQ: changes different equalization curves, suitable for different music genders: classic, pop, rock, jazz, std (EQ deactivated).
Page 11: Technical Specifications
Dimensions (HxWxD) 44x435x132mm Weight 1,4 kg. Remote Control Batteries 2xAAA batteries (not included) PACKING LIST • Stereo audio player with BT: eSAS-BT • FM antenna • Remote control: 2xAAA batteries (not included) • 2xRCA cable (1,3m) • Rack mount accessory •...
Page 12 Todas las características del producto están sujetas a variación debido a las tolerancias de producción. NEEC AUDIO BARCELONA S.L. se reserva el derecho de realizar cambios o mejoras en el diseño o fabricación que puedan afectar las especificaciones de este producto. Para consultas técnicas diríjase a su proveedor, distribuidor o complete el formulario de contacto en nuestro sitio web, en Soporte / Consulta...
