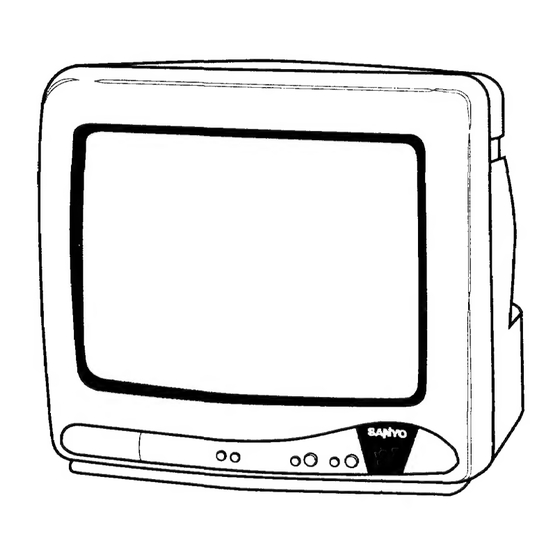

Colour Television
Service Manual
Model No.
C14EA90B
(UK)
Service Ref. No. C14EA90B-00
C14EA90B-01
C14EA90B-03
C14EA90B-04
PRODUCT CODE
1113 26700 (C14EAQ0B)
ORIGINAL VERSION
Chassis No. EC2-A 14/EC2-B 14
Give complete "SERVICE REF. NO." for parts
order or servicing , it is shown on the rating
sheet on the cabinet back of the TV set.
Note:
This TV receiver will not work properly in
foreign
countries
where
the
television
transmission system and power source differ
from the design specifications.
Refer to the specifications for the design
specifications.
SPECIFICATIONS
Power source
Television system
Colour system
Receiving channel
Aerial input impedance
AV terminal
21 Pin socket
Sound output
Picture tube
(Visible picture diagonal)
Dimensions
Weight
SKSM0136
AC 220~240V 50Hz
System |
PAL
UHF 21~69
750hm
CENELEC standard
2 watts
37cm diagonal, 90 degree
34cm
370(W) X 331(H) X 381.5(D)mm
9.0 Kg
CONTENTS
Safety Precautions ........0.
cece ceeeeeeeseeeetseeeeeeeeneeennes
BIOCK DiAQlaM a ovivisceteintdsecrse
diate nnisdecsytnucuvenvenentadens
Circuit DESCIIDUON «vse ccives regio estes (ei eatve tis avert
Service Control Adjustment.................cceeeeeseeeneneeeeeeeeee
Circuit ANQNMENE iaciccctsicasietweveveuatanessavdyecdconsisaebisesenns
Memory IC Replacement ...........
cece
ceesereeeeeseeetees
Cabinet Parts LISt .ccciccsirssihccicnateceicsaannntacnsiooencinsseeveres
Chassis Electrical Parts List C14EA90B-00................
Chassis Electrical Parts List C14EA90B-01................
Chassis Electrical Parts List C14EA90B-03/04...........
SCHEMALC DIAQCAIMN: 16sec
eupiekeanatsscvedtvaxtetacet daboaine
