Sonance MKIII AIM Installation Manual

Thank you for purchasing the Analog Input Module for your
Sonance DSP series amplifier. The Analog Input Module is
compatible with only these amplifier models: DSP 2-150
MKIII, DSP 2-750 MKIII, and DSP 8-130 MKIII.
INSTALLATION
STEP 1
Turn the amplifier off. Touch one finger to any open RCA
connector on the existing input module to discharge any
static electricity.
STEP 2
Disconnect the power cord.
STEP 3
Remove the two mounting screws that secure the existing
input module to the amplifier chassis (see Figure 1).
L R
IN
ANALOG ANALOG ANALOG
OUT
Use Only One Type Of Input Connection

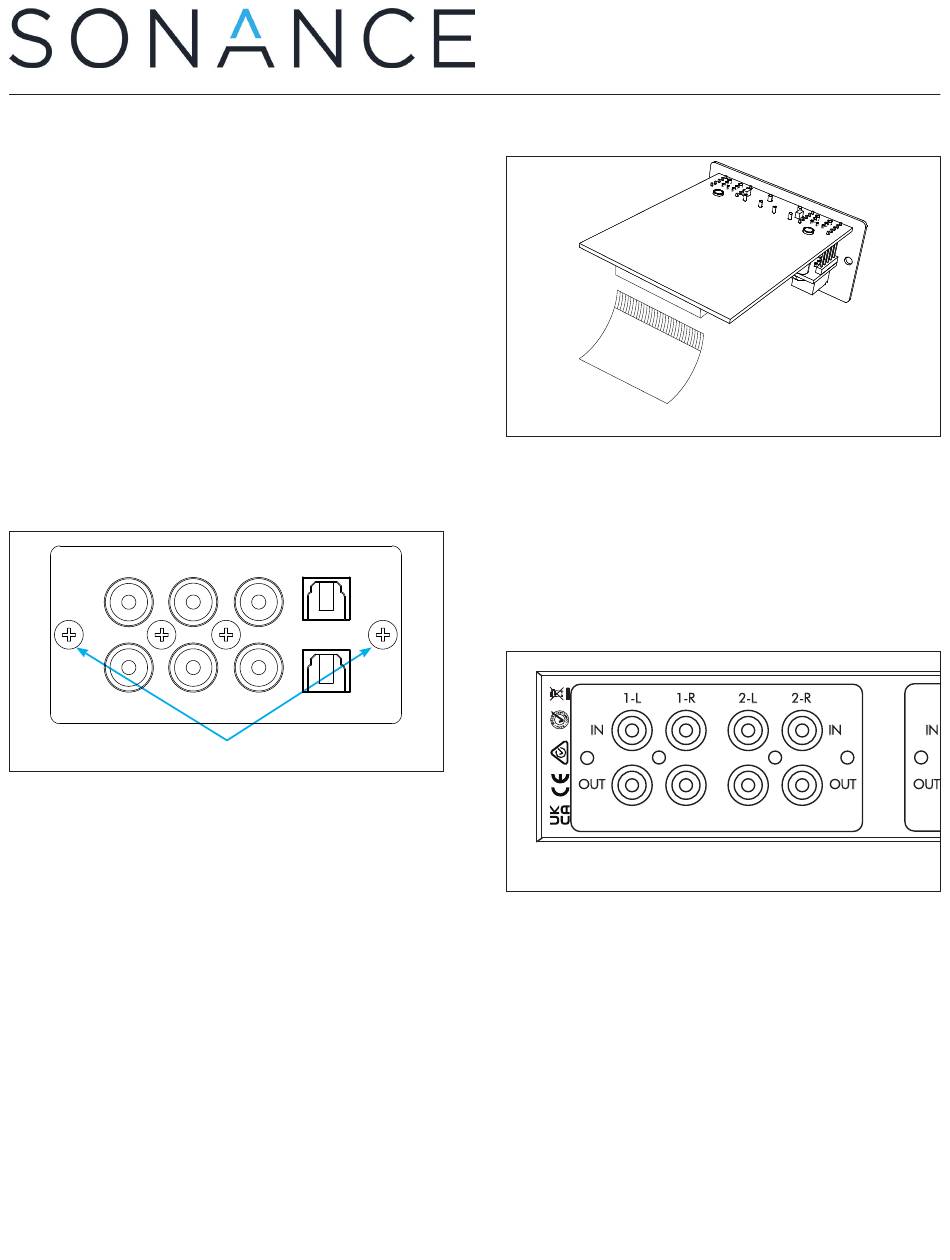

Figure 1: Remove the Two Screws
STEP 4
Remove the existing input module from the amplifier.
Do not pull the module too far out of the amplifier
chassis; this could cause the ribbon cable to become
disconnected internally.
STEP 5
Remove the ribbon cable that is connected to the header
on the existing input module you are removing.
STEP 6
Carefully line up the ribbon cable with the header. Push
the ribbon cable into the header on the Analog Input
Module.
STEP 7
Carefully insert the Analog Input Module into the
amplifier being certain not to dislodge any components
as you insert the module. Install the two screws that
secure the module to the chassis.
L&R L&R
IN
COAX TOSLINK
OUT
INSTALLATION MANUAL
MKIII ANALOG INPUT MODULE - AIM
Figure 2: Analog Input Module
CONNECTIONS
Each input also has a buffered loop output. The buffered
loop output allows an audio source to be shared with
multiple amplifiers.
Select the input in the Sonarc setup software normally.
No special settings are required in the Sonarc setup
software when using the Analog Input Module.
Figure 3: AIM Connections
