Summary of Contents for Spectris PARTICLE MEASURING SYSTEMS FC-100

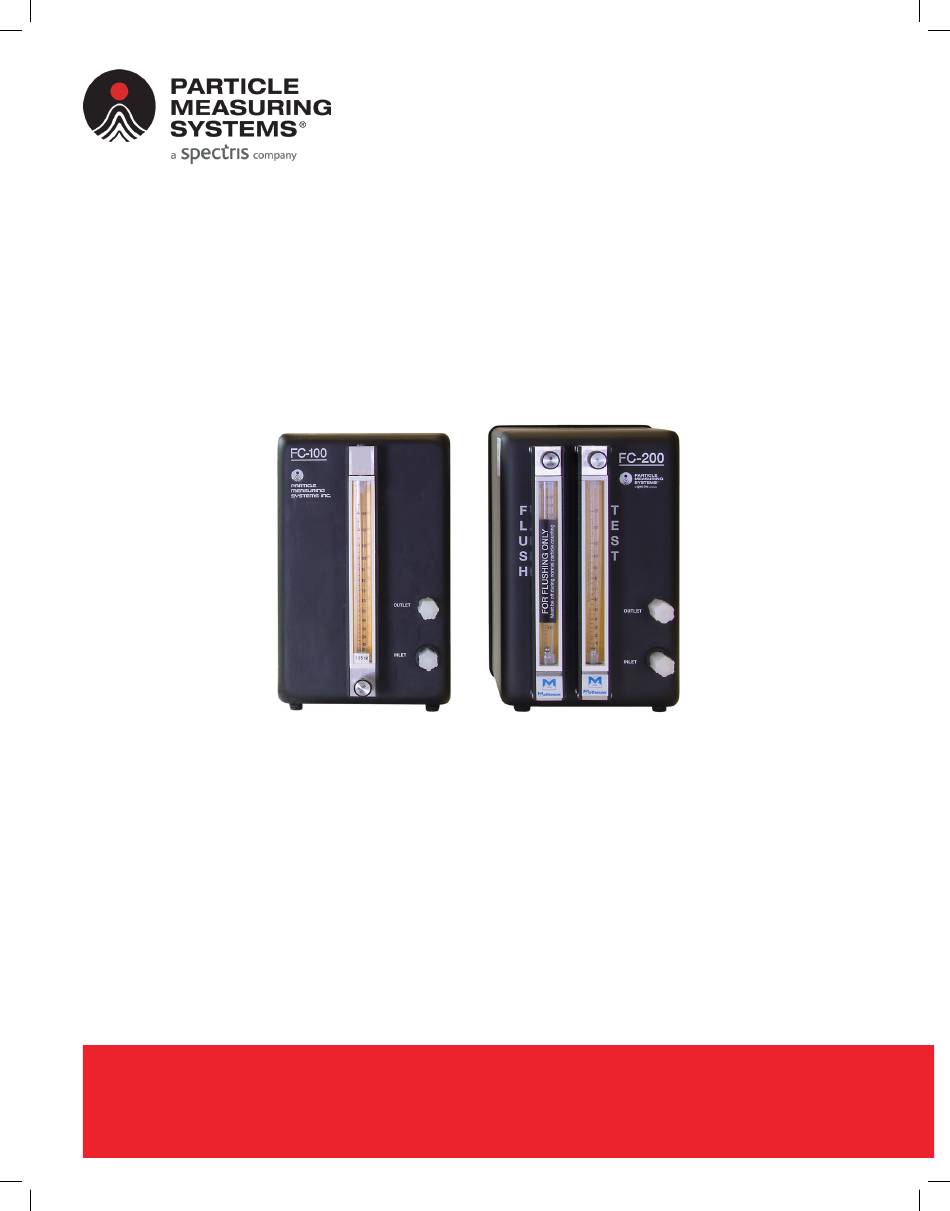

- Page 1 Without measurement there is no control FC-100 and FC-200 DI Water Flow Controllers OP E RAT I ON S M A N UA L P/N M10027...
- Page 2 FC-100 and FC-200 DI Water Flow Controllers Operations Manual HEADQUARTERS 5475 Airport Blvd BRAZIL JAPAN SINGAPORE Boulder, Colorado 80301 USA T: +55 11 5188 8227 T: +81 3 5298 8175 T: +65 6496 0330 T: +1 303 443 7100, +1 800 238 1801 E: pmsbrazil@pmeasuring.com E: pmsjapan@pmeasuring.com E: pmssingapore@pmeasuring.com...
- Page 3 FC-100 and FC-200 DI Water Flow Controllers Operations Manual P/N M10027 Rev E © 2020 by Particle Measuring Systems, Inc. All rights reserved. ® Kynar is a registered trademark of Atofina Chemicals, Inc. ® Viton is a registered trademark of Dupont Dow Elastomers, L.L.C. All trademarks appearing in this manual are the property of their respective owners.
- Page 4 Manual Conventions WARNING A warning in the text is used to notify the user of the potential for bodily injury or death. CAUTION A caution in the text is used to highlight an item that if not done, or incorrectly done, could damage the instrument and/or any materials or devices affected by the instrument.
- Page 5 CE – Declaration of Conformity - Declaration of Conformity Application of Council Directive(s): 2014/35/EU Standard(s) to which Conformity is Declared: Safety EN 61010-1: 2010, 3rd Ed. Manufacturer’s Name: Particle Measuring Systems, Inc. Manufacturer’s Address: 5475 Airport Boulevard, Boulder, CO 80301 USA Manufacturer’s Telephone/FAX: +1 3034437100 / +1 3034496870 Distributor’s Name:...
-
Page 6: Table Of Contents
Table of Contents Chapter 1: Unpacking, Installation, and Operation- - - - - - - - - - - - - - - - - - - - - - - - 1-1 Unpacking - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-1 Installation and Operation- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-2 Example Tubing Installation - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-2 Setting the Flow Rate for the FC-100 - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-3... - Page 7 Table of Contents This page is intentionally left blank. FC-100 and FC-200 Operations Manual...
-
Page 8: Chapter 1: Unpacking, Installation, And Operation
Chapter 1 Unpacking, Installation, and Operation This chapter provides information on: • Unpacking on page 1-1 • Installation and Operation on page 1-2 • Setting the Flow Rate for the FC-100 on page 1-3 • The FC-200 FLUSH Flowmeter on page 1-4 Figure 1-1 FC-100 and FC-200 flow controllers Unpacking 1. -
Page 9: Installation And Operation
Chapter 1 : Unpacking, Installation, and Operation Installation and Operation Installation and Operation The flow controller has been factory-set for the design flow rate value. 1. Refer to the sensor manual and install the sensor. 2. Connect the flow controller downstream from the sensor to avoid contaminating the sample (Figure 1-3). -
Page 10: Setting The Flow Rate For The Fc-100
Setting the Flow Rate for the FC-100 Chapter 1 : Unpacking, Installation, and Operation Setting the Flow Rate for the FC-100 Different viscosities of fluids affect the flowmeter reading of the FC-100. The influence of viscosity on flow rate depends on the particular flowmeter being used. Since temperature affects the viscosity of water, Particle Measuring Systems recommends that the flowmeter be dynamically calibrated for use with water temperatures other than 21.1C (70 F). -
Page 11: The Fc-200 Flush Flowmeter
Chapter 1 : Unpacking, Installation, and Operation The FC-200 FLUSH Flowmeter The FC-200 FLUSH Flowmeter The FC-200’s FLUSH flowmeter is used to purge the sample/test line and the sensor of any bubbles that may have accumulated during shipping, transportation, or installation. -
Page 12: Flushing With The Fc-200
The FC-200 FLUSH Flowmeter Chapter 1 : Unpacking, Installation, and Operation Flushing with the FC-200 Anytime the particle counter is disconnected and reconnected to the sample line, the sample/test line and the sensor should be flushed to remove any bubbles. Before running a sample, the counter should be flushed while the FC-200 is connected to remove possible contamination. - Page 13 Chapter 1 : Unpacking, Installation, and Operation The FC-200 FLUSH Flowmeter Figure 1-6 Indicator is set to specified flow for particle counter FC-100 and FC-200 Operations Manual...
-
Page 14: Chapter 2: Specifications
Chapter 2 Specifications FC-100 and FC-200 Specifications 20 - 100 psi Pressure range 0 - 90 C (32 - 194 F) Temperature range (fluid) 2.3 kg (5 lbs) Weight Dimensions (h x w x d) 29 x 18 x 13 cm (11.5 x 7 x 5 in) Materials Flow controller Moore model 63SD... - Page 15 Chapter 2 : Specifications This page is intentionally left blank. FC-100 and FC-200 Operations Manual...
-
Page 16: Chapter 3: Control Technique
Chapter 3 Control Technique The flow regulator is used to maintain a constant differential pressure across a needle valve downstream from the regulator. The spring in the bonnet of the regulator exerts a force on the diaphragm assembly which can be adjusted to provide the required differential. - Page 17 Chapter 3 : Control Technique This page is intentionally left blank. FC-100 and FC-200 Operations Manual...
