Summary of Contents for VOLTA Mini VaR Tool Kit

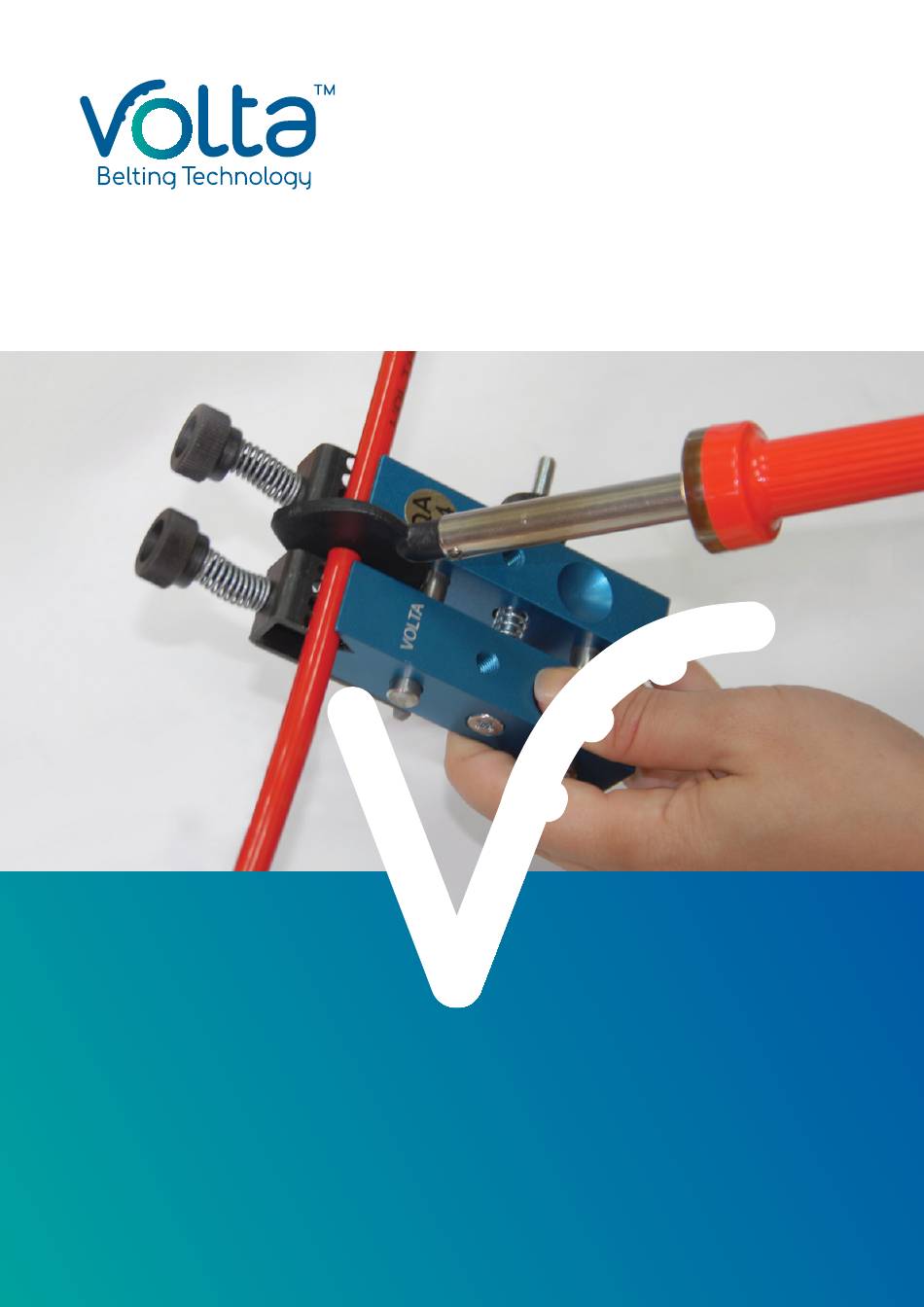

- Page 1 The Next Step in Belting Welding & Fabrication Tools Mini VaR Tool Kit Instruction Manual...
-
Page 2: Table Of Contents
Welding & Fabrication Tools - Mini VaR Tool Kit Table of Contents Page How to use this manual ......................3 Symbols used in this manual ....................3 Uses and Applications ......................3 Unauthorized Use ........................4 Technical Specifications ......................4 Spare Parts ........................... -
Page 3: How To Use This Manual
This symbol is used to warn you of actions that are dangerous for the operator. Read the associated warnings and instructions carefully. Uses and Applications The "Mini Pliers - R8" kit is designed for customer use in welding VOLTA ROUND and V-Profiles of various lengths. "Technical specifications" below. Round Profile ‘V’... -
Page 4: Unauthorized Use
Spare Parts In the case that the welder, Pliers or other related tools and equipment require repair, contact your nearest Volta Belting Technology distributor. In your inquiry do not forget to mention the part's name and number mentioned on page 6. -
Page 5: General Safety Instructions
Protect the power cord from heat and contact with sharp edges. Do not pull the cord to remove the plug from a power socket. Make sure the power socket is properly grounded before connecting the welder. *VOLTA belts DO NOT contain toxic components. www.voltabelting.com | 5... -
Page 6: Mini R8 Pliers Components
Welding & Fabrication Tools - Mini VaR Tool Kit Mini R8 Pliers Components Slider (2 each) Locking bolt Platform Stud bolt (2 each) Clamp bolt (2 each) Clamp (2 each) Locking nut Rider Long spring (2 each) Spring Locking Pin... -
Page 7: Welder Stand
Welder Stand The welder stand has been designed so that a user can safely prepare it for use by bending the stamped section to the form shown on the right in the Fig. 4. Fig. 4 Preparing the Welder for Use Place the welder on its stand (Fig. -
Page 8: Preparing The Pliers For Welding
Welding & Fabrication Tools - Mini VaR Tool Kit Preparing the Pliers for Welding The Mini R8 pliers can be used in two different positions (fig. 6). Normally open (default position). Normally Closed (can only be used with the optional handles). -
Page 9: Welding In Normally Open Position
Make sure the belt ends are aligned. In case of misalignment, align the profile. Increase the distance between the pliers to W + 6 mm. W refers to the welder tip's thickness (for VOLTA Mini welder: W = 4 mm). -
Page 10: Welding In Normally Closed Position
Allow additional 10 minutes of cooling time before using the belt. The period of time can be shortened by using an air gun or water. The VOLTA belt is now ready for long lasting and reliable use. Fig. 16 Fig. 17 Fig. -
Page 11: Cleaning The Welder
Cleaning the Welder Wipe the welder's tip with a dry cloth before the melt completely cools. Only use a cotton cloth. Avoid using synthetic fabric or sharp-edged tools to remove material. These will damage the welder’s Teflon coating. Ensure that the Teflon coating is not scratched or peeled away. Be careful when you remove the melted material from the welder’s Teflon coated tip. - Page 12 Tel. +31 546 580166 Sales and Manufacturing Toll Free. 1-877-VOLTAUS voltaeu@voltabelting.com sales@voltabelting.com voltaus@voltabelting.com Volta Belting makes no warranty with respect to any of its products Copyright Volta Belting Technology Ltd. © www.voltabelting.com for a particular purpose. See Volta General Terms and Conditions.
