Summary of Contents for Vello NSD-35

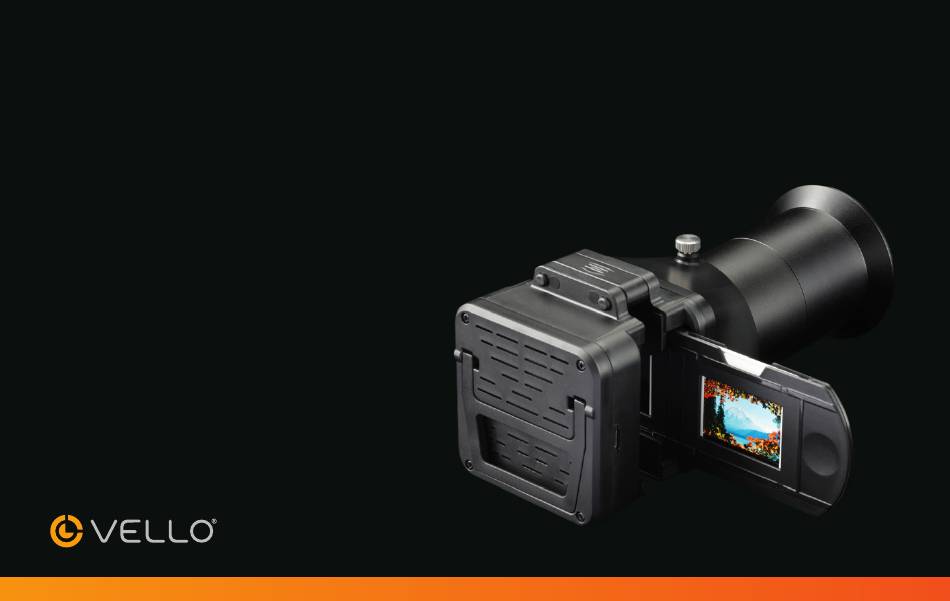

- Page 1 35MM NEGATIVE AND SLIDE DIGITIZER USER MANUAL...
- Page 2 THANK YOU FOR CHOOSING VELLO The Vello NSD-35 makes it easy to digitize 35mm negative film strips and mounted slides with a camera and macro lens. This kit features an LED light source that provides bright and consistent light, allowing you to accurately capture the film and slides.
- Page 3 PRECAUTIONS • Please read and follow all the instructions in this manual. • Do not operate in the presence of flammable gases or vapors. • Do not disassemble or perform any unauthorized modifications. Use only with the compatible devices • Keep out of reach of children. This device contains small specified in this manual.
- Page 4 OVERVIEW 1. Holder clips 2. LED light 3. USB Micro-B port 4. Stand 5. 1/4-20 mount 6. Film/Slide carrier 7. Holder clips 8. Locking screw 9. Carrier extension 1 10. Diffuser 11. Connectors (×2)
- Page 5 12. Film strip holder 13. Mounted slide holder 14. USB Type-A to Micro-B power control cable 15. Extension tube 2 (×2) 16. Lens adapter 3 17. Lens adapter 4 18. Lens adapter 5 19. Lens adapter 6 20. Lens adapter 7 21.
- Page 6 ASSEMBLING THE DIGITIZER To assemble the digitizer, you’ll need to select the Example: right adapters, so the film or slide is positioned at your lens’s minimum focus distance. Table 2 Carrier extension (1) below shows a variety of popular macro lenses extension tube(s) (2) and their respective adapter combinations.
- Page 7 1. Use table 2 below as a guide to select the right 3. Insert your 35mm film strip or mounted slide adapters for your lens. Make sure to remove all into the appropriate holder. To avoid damage, hoods, filters, and other lens attachments before be sure the film is correctly placed in the holder assembling the digitizer.
- Page 8 4. Attach the digitizer to your lens using the 5. Focus the image, starting with your lens set to appropriate lens adapter (see table 1). Insert manual focus, and to its minimum focus distance. the holder into the carrier’s holder clips. Look You may need to consult your lens’s manual.
- Page 9 (not included) via the USB power control cable. Press the + or – buttons to increase or decrease the LED’s brightness. Warning! To avoid damage, do not leave the film in the NSD-35 with the light on for an extended period.
-
Page 10: Stand-Alone Use
STAND-ALONE USE LED Light Carrier Use the LED light as a stand-alone image viewer Attach the diffuser to the carrier, and use a with the built-in stand or the 1/4-20 mount. separate light source for digitizing the film or slides. - Page 11 Table 1. Carrier extension, lens adapter, and extension tube diameters Part Diameters Lens Adapter and Extension Tube 2 52-52mm Extension Tube Diameters Lens Adapter 3 62-52mm Lens Adapter 4 67-52mm Lens Adapter 5 55-52mm Lens Adapter 6 46-52mm Lens Adapter 7 49-52mm Lens Adapter 8 58-52mm...
- Page 12 Table 2. Compatible lenses Brand Compatible Lenses Configuration EF-S 60mm f/2.8 USM 1 - 2 - 2 - Lens EF 100mm f/2.8L Macro IS USM 1 - 2 - 2 - 4 - Lens Canon EF 100mm f/2.8 Macro USM 1 - 2 - 2 - 8 - Lens RF 100mm f/2.8L Macro IS USM 1 - 2 - 4 - Lens...
- Page 13 Brand Compatible Lenses Configuration FE 50mm f/2.8 Macro 1 - 5 - Lens Sony FE 90mm f/2.8 Macro G OSS 1 - 2 - 2 - 3 - Lens 50mm f/2.8 2X Ultra Macro APO 1 - 2 - 7 - Lens 60mm f/2.8 2X Ultra-Macro 1 - 3 - Lens Laowa...
-
Page 14: One-Year Limited Warranty
ONE-YEAR LIMITED WARRANTY This VELLO product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider’s responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at the provider’s discretion,... - Page 15 To obtain warranty coverage, contact the Vello Customer Service Department to obtain a return merchandise authorization (“RMA”) number, and return the defective product to Vello along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser’s own risk and expense.
- Page 16 www.vellogear.com...
