Summary of Contents for BZBGEAR BG-CJ-RS

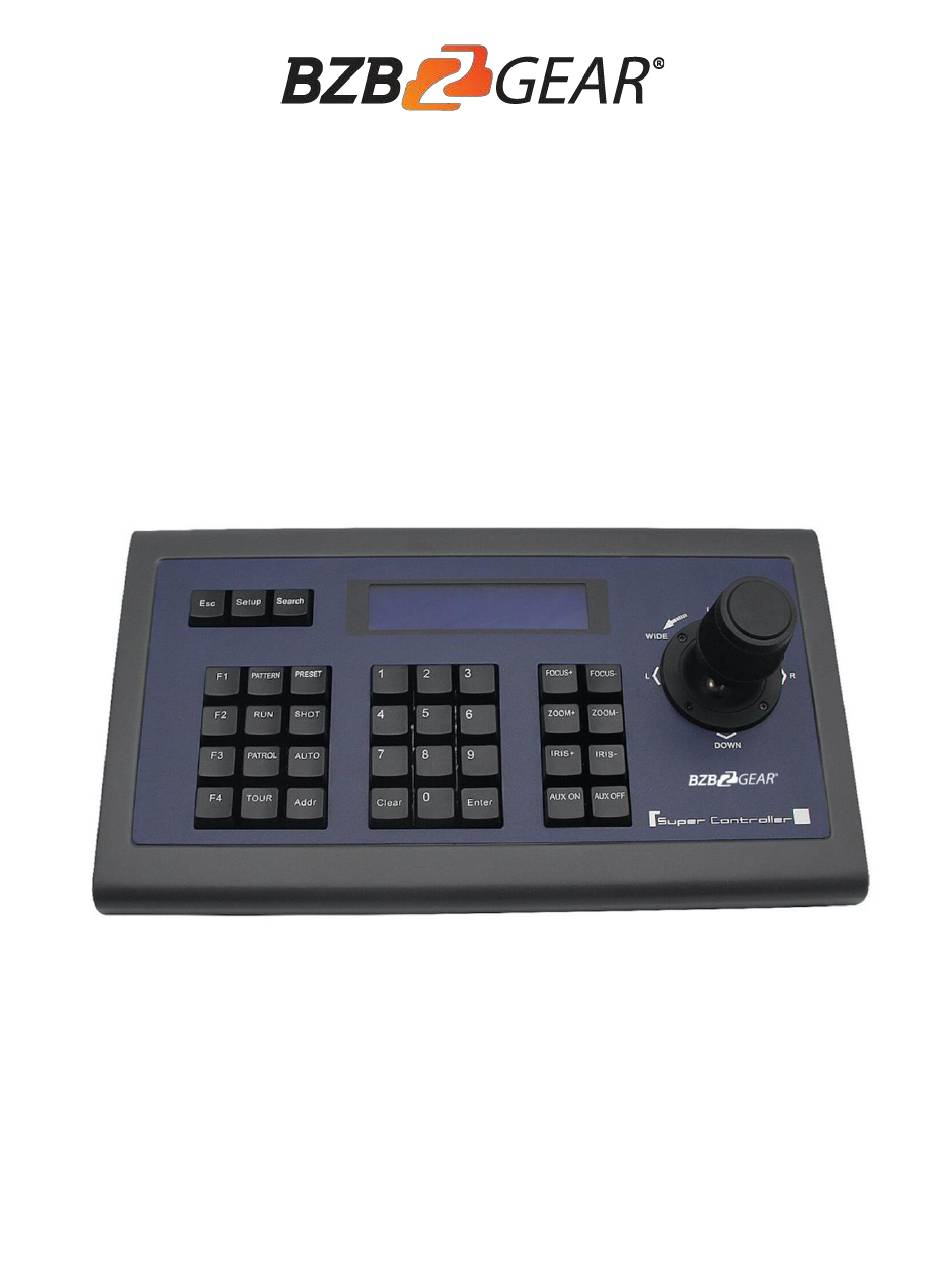

- Page 1 Model Number: BG-CJ-RS Joystick Keyboard Installation & Operation Manual...
-
Page 2: Key Product Features
Easy pan, tilt & zoom controls for any RS-232, RS485, RS422 VISCA, Pelco-P or Pelco-D protocol camera! Controls pan & tilt with variable speed. Uses 3-Dimensional joystick with “twist” control for variable zoom. Key Product Features All Metal housing. • VISCA, PELCO-D and PELCO-P protocol support. -
Page 3: Installation
In the Box • Keyboard with three-axis control joystick. 5p screw terminal plug (RS422/RS485). • 12VDC Power Supply. • This Manual. • Installation • Power Supply Interface (5.5mm x 12mm center pin JEITA style jack): 12VDC / 2000mA power supply. RS485/422 interface (5p screw terminal): •... - Page 4 Keyboard/Joystick Operation Basic Control • Pan & Tilt Control o Joystick movement provides variable speed pan and tilt of the camera head. Zoom Control • o Rotation of the joystick controls variable speed zoom of the lens. Clockwise rotation of the joystick = zoom in. Counter-clockwise rotation of the joystick = zoom out.
- Page 5 0 to use this feature with Pelco) Notes on using presets with VISCA: For your convenience, the BG-CJ-RS uses the same preset numbers whether ‘set’, ‘called’ or ‘cleared’ via hand-held IR remote, VISCA, Pelco-P or Pelco-D. This is in contrast to Sony’s traditional offset of -1 between IR remote commands and VISCA commands.
- Page 6 o Press the “Enter” key. • Keyboard Menu o “Set >>” Menu o Move joystick “left” and “right” to select between 1(CAM) or 2(SYS) o Press “Enter” key to confirm the choice. o “SET >>CAM”: Menu Move Joystick “left” and “right” or simply type camera ID to select camera to configure.
- Page 7 4(SOUND) Move Joystick “left” and “right” to • turn key beep ON or OFF. Press “Enter” key to confirm. • 5(KB ID) • KB ID: Using “Number” keys, enter the desired ID. Press “Enter” key to confirm. 6(LOCK SET) Move Joystick “left” and “right” to •...
- Page 8 Keyboard/Joystick Connection Wiring and Indicators Indicators: “PW” illuminates Red when unit is powered • “TXD” flashes green when unit is transmitting commands • • “RXD” flashes green when unit is receiving responses Power: Keyboard/Joystick requires external 12VDC. Use only the 12VDC power supply •...
- Page 9 o KB Gnd – Pin 5 ---------- Camera (G) (if present – some cameras will not require a G) • For RS422, connect the 5p screw terminal port of the KB to the RS422 port of the camera with pin-out as follows: o KB Ta –...
-
Page 10: Troubleshooting
Troubleshooting Cannot Control Camera at all o Check that LCD is in the Main Menu. Press • “Esc” key to return to main menu, if needed. Note: Repeated presses may be required depending on how deep you are in a menu, e.g. this can often happen after setting presets and then attempting to Call presets without exiting the Set menu. -
Page 11: Warranty
BZBGEAR catalog. You’ll notice comparably lower prices with BZBGEAR solutions, but the quality of the products is on par with the top brands in the industry. The unparalleled support from our team is our way of showing we care for every one of our customers.
