SolarEdge Storedge inverter LED indicator replacement -
support kit manual
This manual describes the procedure for replacing the LED Indicator.
Kit contents
Storedge inverter LED Indicator support kit PN FLD-LED-BULB-48V-KIT
Required tools
Torque screwdriver for ¼" hex bit
4mm Allen hex bit

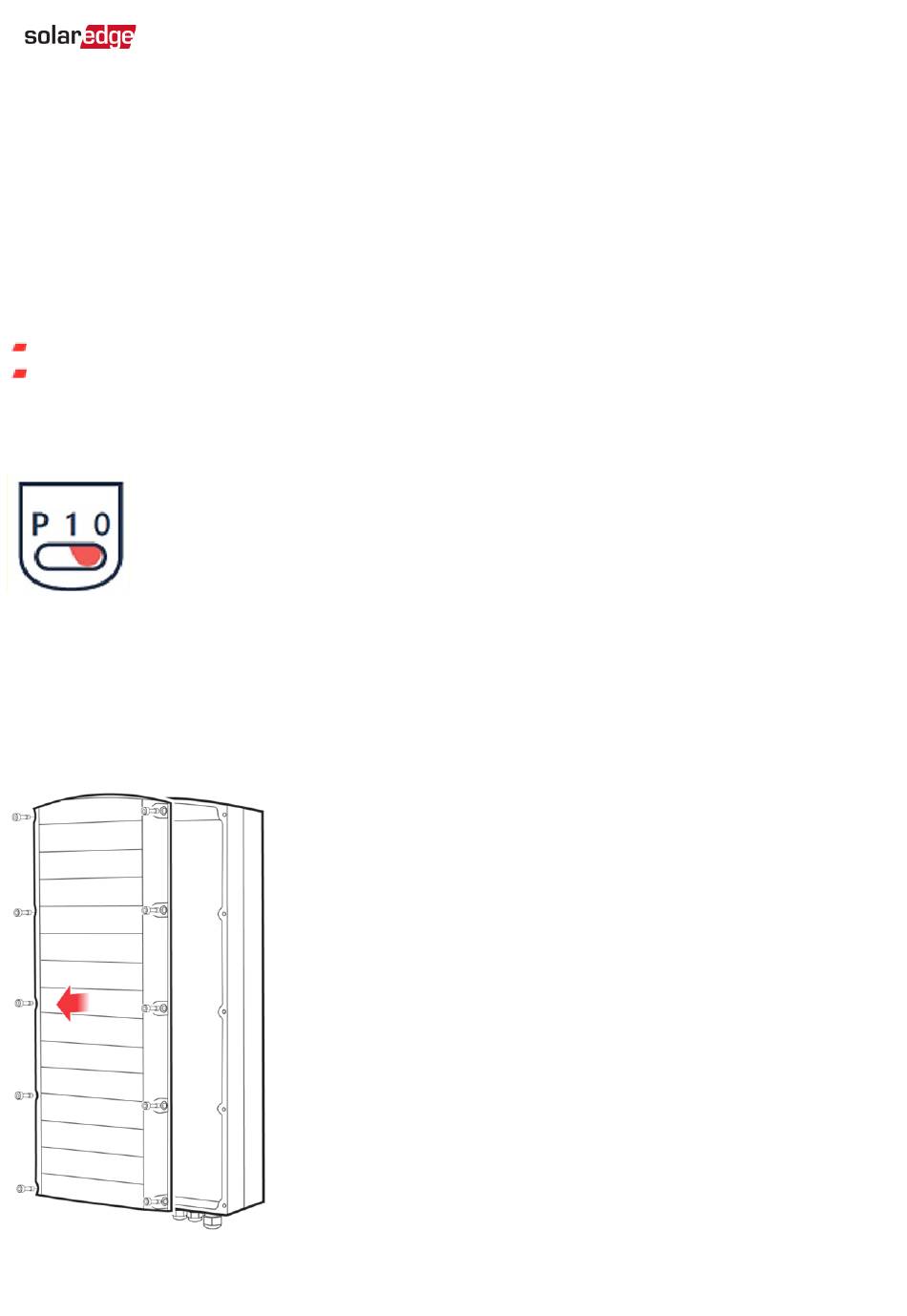

Remove the cover
1. Set the P/1/0 switch to "0" (OFF).
2. Disconnect AC power to the inverter by turning OFF the main circuit breakers or disconnecting the fuses in
the power distribution panel.
3. Wait for five minutes for the DC Voltage inside the inverter to drop to a safe level before proceeding to the
next step.
4. Lock the power distribution panel.
5. Turn OFF the battery.
6. Using a 4mm hex bit, loosen the screws holding the cover and remove it.
SolarEdge Storedge inverter LED indicator replacement
Version 1.0, April 2023
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Storedge FLD-LED-BULB-48V-KIT and is the answer not in the manual?

Questions and answers

Related Manuals for SolarEdge Storedge FLD-LED-BULB-48V-KIT

Summary of Contents for SolarEdge Storedge FLD-LED-BULB-48V-KIT

  • Page 1 Version 1.0, April 2023 SolarEdge Storedge inverter LED indicator replacement - support kit manual This manual describes the procedure for replacing the LED Indicator. Kit contents Storedge inverter LED Indicator support kit PN FLD-LED-BULB-48V-KIT Required tools Torque screwdriver for ¼" hex bit...
  • Page 2 Install the replacement LED board 1. Insert the new LED board into the LED holder. 2. Re-connect the LED indicator cable to the LED board. Pull the connector gently to make sure it is properly connected. SolarEdge Storedge inverter LED indicator replacement...
  • Page 3 2. Using a 4mm hex bit and a torque wrench, tighten the screws to a torque of 4N·m (35.4 lbf·in). 3. Unlock the power distribution panel and turn ON the main AC circuit breaker. 4. Set the P/1/0 switch to “1” (ON). SolarEdge Storedge inverter LED indicator replacement...
